Warning! Disconnect power before providing

maintenance and service to unit.

Caution: Lamps are treated to resist breakage.

Replace with similarly treated lamps.

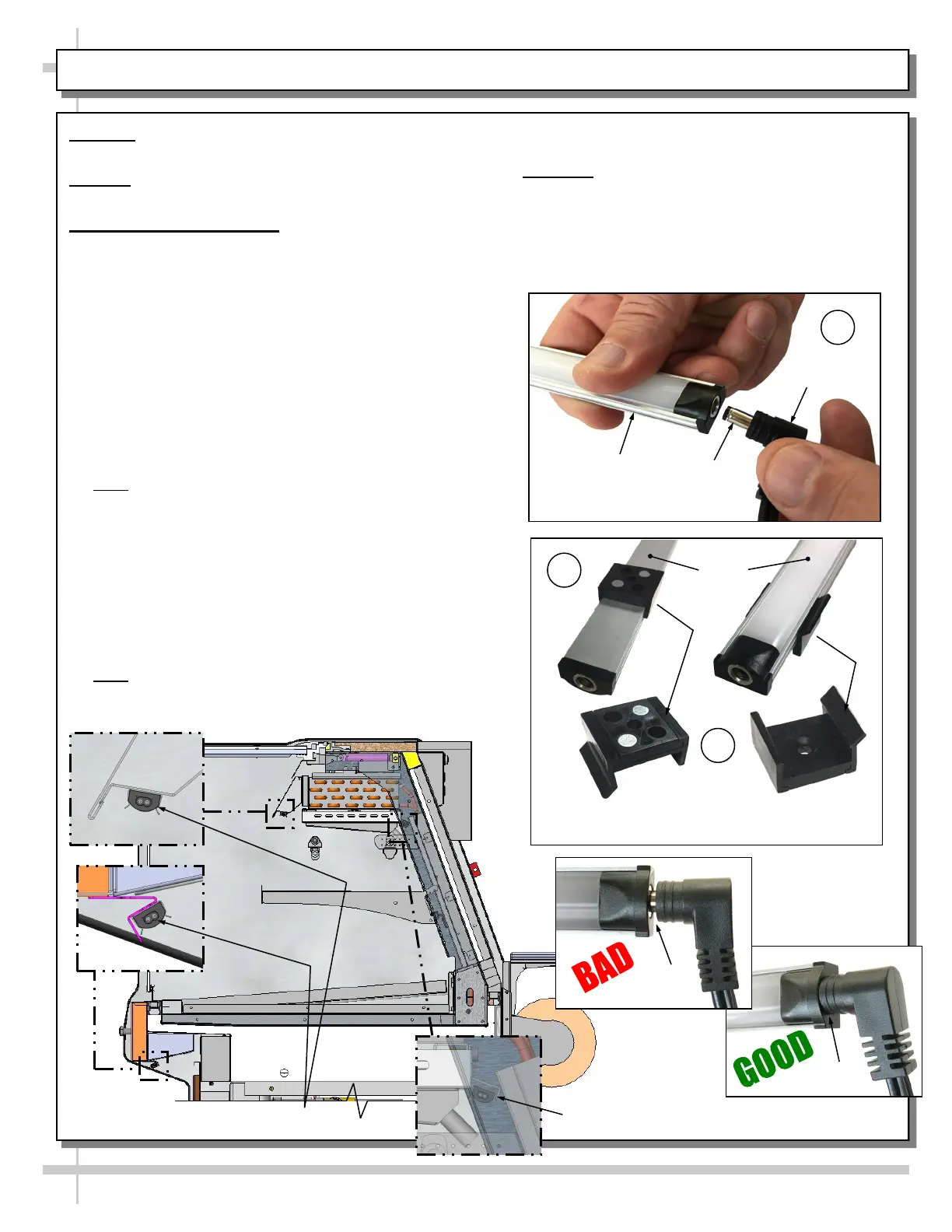

5. LED Style Light Fixtures

Removal of Faulty LED Lights:

• LED lights rarely require change-out.

• Contact Structural Concepts’ Technical Service

Department for replacement LED lights.

• Turn off LED light switch.

• To remove faulty LED light, follow these steps:

A. Disconnect plug from LED light.

B. Using both hands, grasp LED light assembly

(with its magnetic mounting clips). Pull

downward and off its shelf (or header).

C. Remove magnetic mounting clips from LED

light by pressing against flange part of clip with

thumb.

>> Note: Mounting clips MAY be riveted to shelf or

header. In such instances, simply remove LED light

from mounting clips by pressing against flange part of

clips with thumb.

Replacement of LED lights:

• Attach magnetic mounting clips onto LED light.

• Adjust magnetic mounting clips so they are equally

spaced on LED light.

• Reattach LED light assembly to its shelf/header.

• Position properly in shelf/header.

>> Note: If mounting clips are riveted to shelf (or

header), attach by placing LED in base of clip and then

snapping into clip at FLANGE SIDE.

MAINTENANCE FUNDAMENTALS, CONT’D: LED LIGHT FIXTURES / REMOVAL & REPLACEMENT

LED Light (Shown Through Transparent Upright)

LED Lights

No Gap

Gap

Magnetic Mounting

Clip View #2

LED

Lights

Magnetic Mounting

Clip View #1

Plug

Barrel

Shaped

Insert

LED

Light

• Press plug’s barrel-shaped insert all the way into

LED light.

• Important: If plug is not inserted ALL THE WAY IN

the LED light’s orifice, the light may not

energize. See “BAD” vs. “GOOD” insertion

illustrations below-right.

• Turn LED light switch back on.
