OPERATION: REFRIGERATION LINES / STUB-UPS / DRAINS (GMG8 MODEL) - PAGE 1 of 2

1. Refrigration Line Stub-Up Connections

• Refrigerant stub-up access is at underside of case.

• Stub-up connections are accessed by removing

rear panel (no screws required).

• Run case-to-case connections through cutouts in

base.

• Sweat the high and low pressure connections.

• Fill access hole with suitable filler to insure

watertight integrity of tub.

• Note: Illustration below may not reflect every

feature or option of your particular case.

2. Drains

• GMG8 cases have drains at left and right hand

sides.

• Longer cases also have drain at case center.

• Drain field connection location is shown below.

• See INSTALLATION: REFRIGERATION LINES

ROUTING / DRAINS / TXV VALVE (MEAT

CASES) for illustration of TXV Valve, Drains,

Refrigeration Line Stub-Ups Access, etc.

• Depending upon drain access needs, either front

or rear panel may be removed to gain access to

drain stub-up.

• 1.5” male PVC stub-up connection is under case.

• Drain stub-up may be at case center in extended

length cases.

• Connect tub drain to floor drain. Maintain

1/4”-fall per foot to provide proper drainage.

• Note: Illustration below may not reflect every

feature or option of your particular case.

3. Caution! Check Proper Drainage Before

Turning on Case!

• If case runs without proper connection, water will

drain onto floor causing damage!

• For remote cases, check that field connection for

drain is properly connected.

• For self-contained cases, check that power cord

from condensate pan is properly plugged in

before turning on case.

• See TROUBLESHOOTING section in operating

manual for additional information.

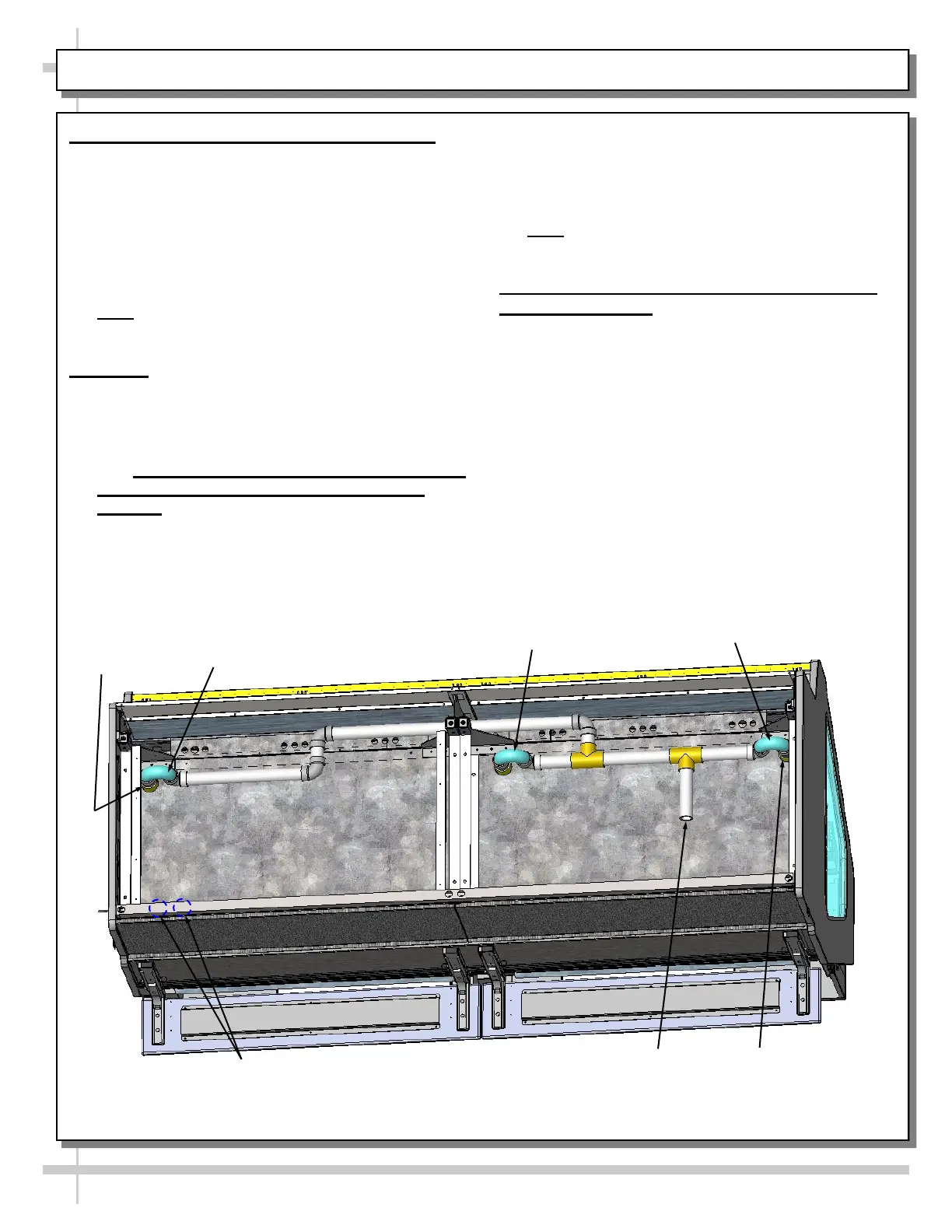

Model GMG8 Shown Above.

Your Case May Differ

Refrigeration Line

Stub-Ups Access

Drain

Field Connection

for Drain

P-Trap
