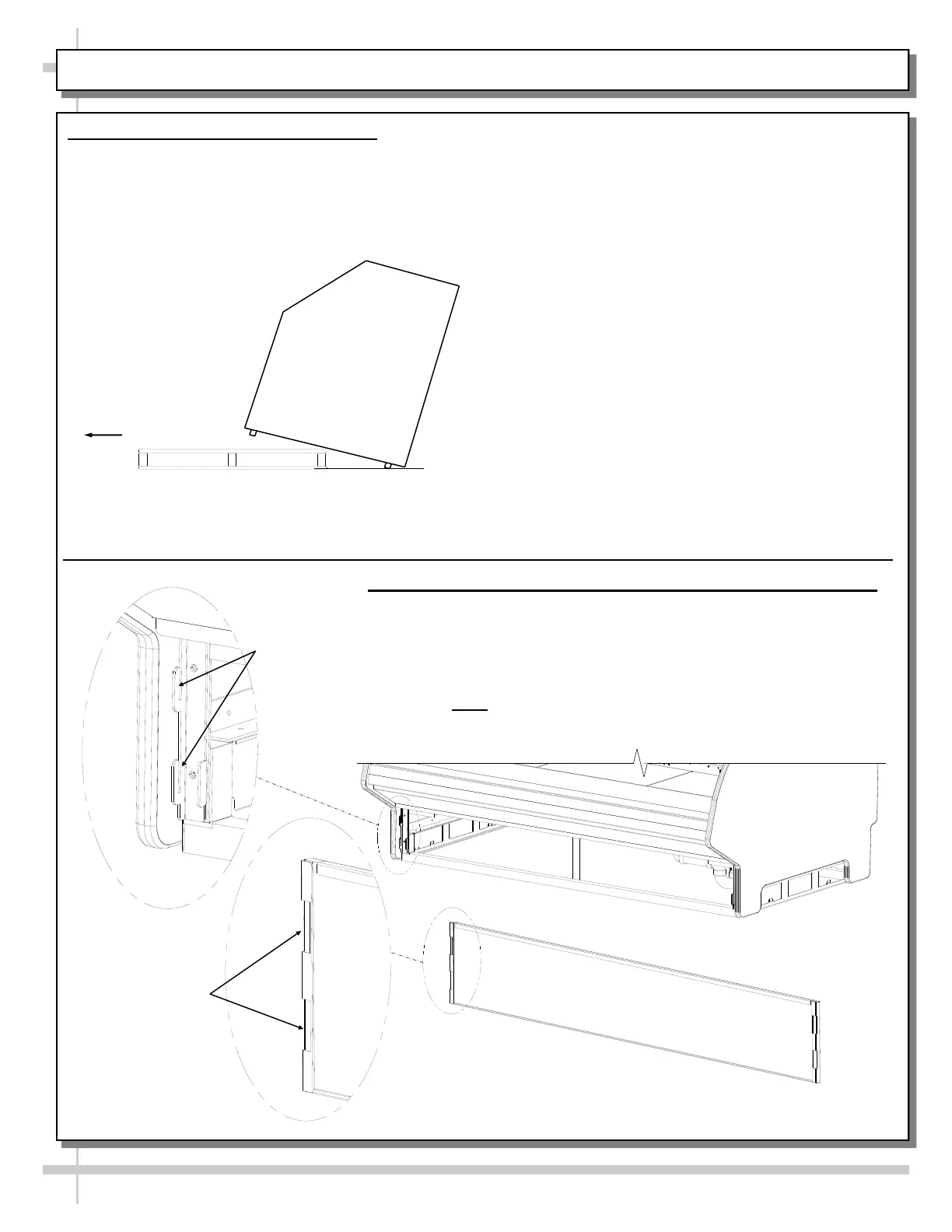

INSTALLATION: REMOVAL FROM SKID, REMOVING LOWER FRONT PANEL / REAR PANEL

1. Remove Case From Skid (Rails)

• Remove shipping brace that may be

securing case to skid.

• Support case to prevent tipping.

• Caution! Rails can be damaged if case hits

floor with heavy force!

Case can be repositioned with pallet truck when

front lower panel is removed. Blocking may be

necessary to obtain adequate height.

Slide Skid Out

• Carefully slide unit to

rear of skid and tip

backward off skid.

• Illustration may not

reflect every feature

or option of your

particular case.

2. Removing Vertical Lower Front Panel (and Rear Panel)

Removing Lower Front Panel

• No screw removal is required to remove lower front panel.

• Simply lift lower front panel slots up and off case hooks.

• Replace in same manner it was removed.

• Rear panel is removable in same manner.

• Note: Illustrations below may not exactly reflect every

feature or option of your particular case.

Lower Front Panel

(Reversed to Show Slots

Hooks

Slots
