CONDENSER PACKAGE (HOT GAS LOOP EVAPORATOR PAN / HEATER ROD OVERFLOW PAN)
Illustration shown may not reflect every
feature or option of your particular case.

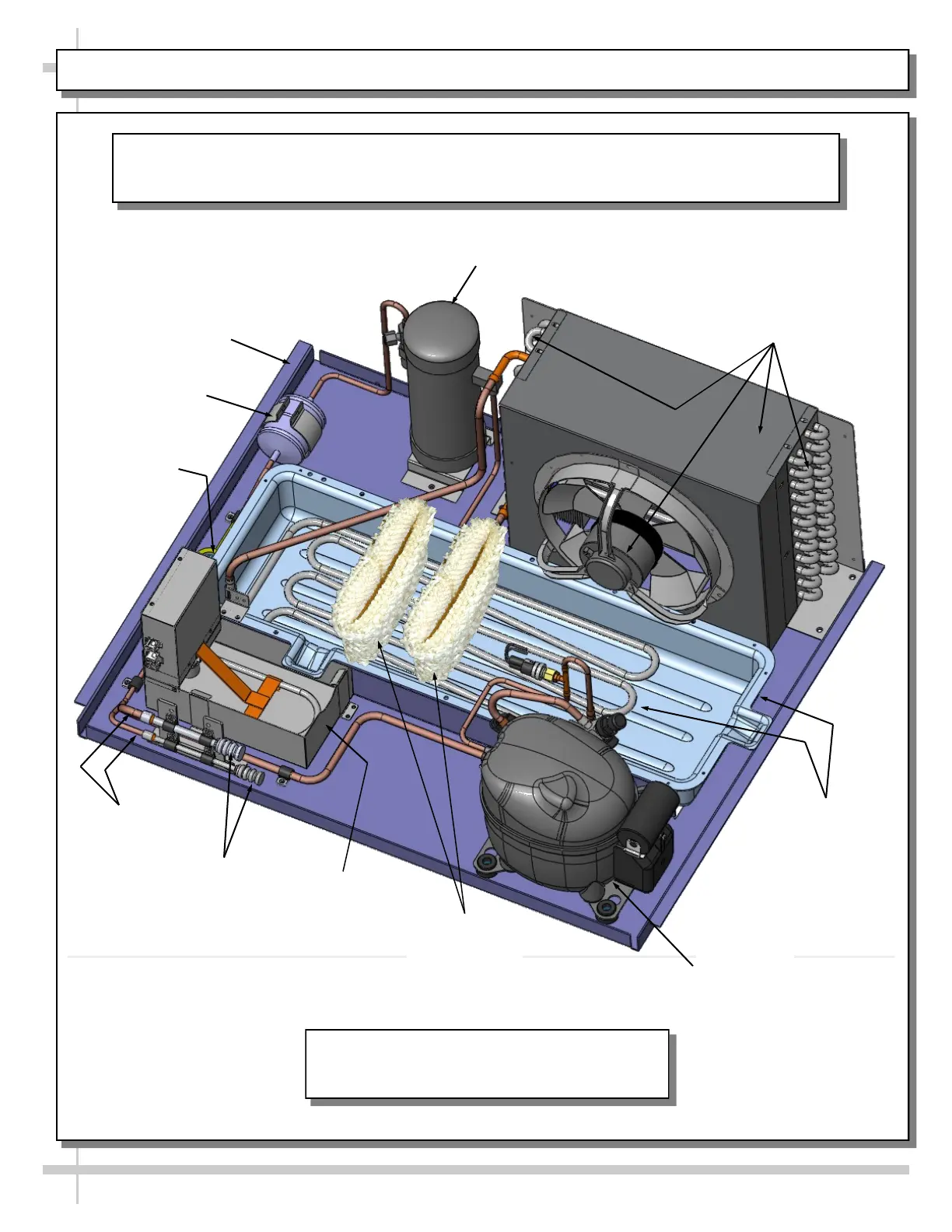

The following images show the various parts pertaining to the condenser package
(that is slid directly out from under display case) to be cleaned and serviced.
Copper
Tubing
Refrigeration
Package Pan
Sight Glass
Condensing Coil (and
Internal Fan and Motor)
Pump
Dryer Filter
Flexible Hose
Connections
Hot Gas
Evaporator Pan
and Coils
Receiver
Overflow Pan
With Electrical
Coil
Wicking Material
(Optional)
