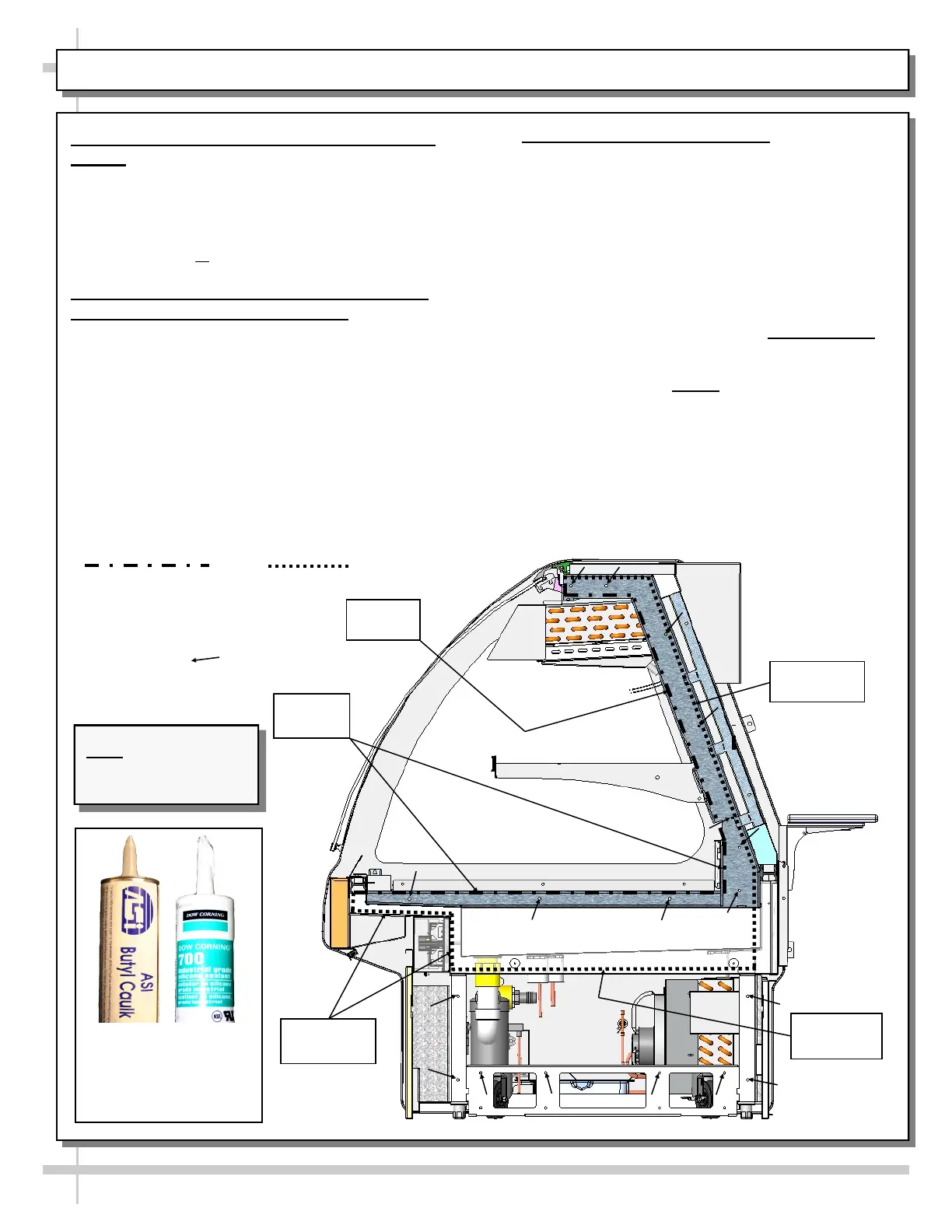

INSTALLATION, CONT.: POSITIONING & ALIGNING CASE / BOLTING & CAULKING UNITS TOGETHER

3. Position & Align Case Alongside Other

Cases

• Before adjusting levelers (or shimming frame

support rails), make certain that case is in proper

position and, if required, aligned with adjoining case.

• This may require the repositioning of the case you

are installing or the already positioned case.

4A. Bolting and Caulking Units Together

(Non-Vertical Glass Case Style)

> Model GMG4 shown for illustrative purposes only.

> Follow these steps to assure a secure, level lineup.

A. Begin lineup leveling from highest point of floor.

B. After ‘first’ case is level, apply industrial grade butyl

caulk on non-visible areas (at case end). Use

industrial grade silicone sealant on visible areas

(at case end). See caulk/silicone illustrations at

lower-left.

C. Form Two (2) Caulk/Sealant Lines: (Sanitation

and Refrigeration). See illustration at mid-right for

outline of caulk/sealant lines.

D. Line up ‘second’ case bolt-hole to bolt-hole to ‘first’

case.

E. Using SCC-supplied bolts (and/or screws) found in

installation packet, insert bolts in bolt hole locations

(shown below). You may need to remove decking

to access lower bolt holes.

F. Caution! Front of cases MUST be flush with each

other! After leveling, cases are to be same height.

G. Using SCC-supplied nuts & bolts, lightly tighten

each of the 5 to 8 bolts in a cross-wise pattern.

Work your way around the pattern, tightening more

firmly at each pass. Do not firmly tighten one bolt

and then start on the next!

H. After the cases are bolted together, level the

‘second’ case. Repeat this process for each case

to be adjoined.

I. After all lined-up cases are level, seal all seams

with industrial grade silicone sealant.

Sanitation

Bead

Refrigeration

Bead

Refrigeration

Bead

Sanitation

Bead

Approximate hole

locations pointed at

with arrows ( )

for bolting units

together.

Sanitation Bead Refrigeration Bead

Refrigeration

Bead

Butyl is to be used on

non-visible areas.

Silicone is to be used

on visible areas.

Note: Model GMG4 is

shown for illustrative

purposes only.
