OPERATION, CONT’D: DISPLAY CASE START-UP / LIGHT SWITCHES

2. Display Case Start-Up

A Case

• Unit will begin operating when field wired.

• Front glass fans will begin to operate.

• Receptacle for scale stand receptacle will be

energized.

B. Light Switch

• Light switch for is at case rear on right upright

(as shown in illustration below).

C. Lights

• Lights will turn on when light switch is flipped.

• All lights should come on at the same time.

• First time lighting may require a short warm-up

period.

• Slightly dim / flickering of new bulbs is normal.

If lights do not turn on, check raceway plugs.

• Lighting is wired in series so all lights must be

plugged in or receptacles capped for case lights

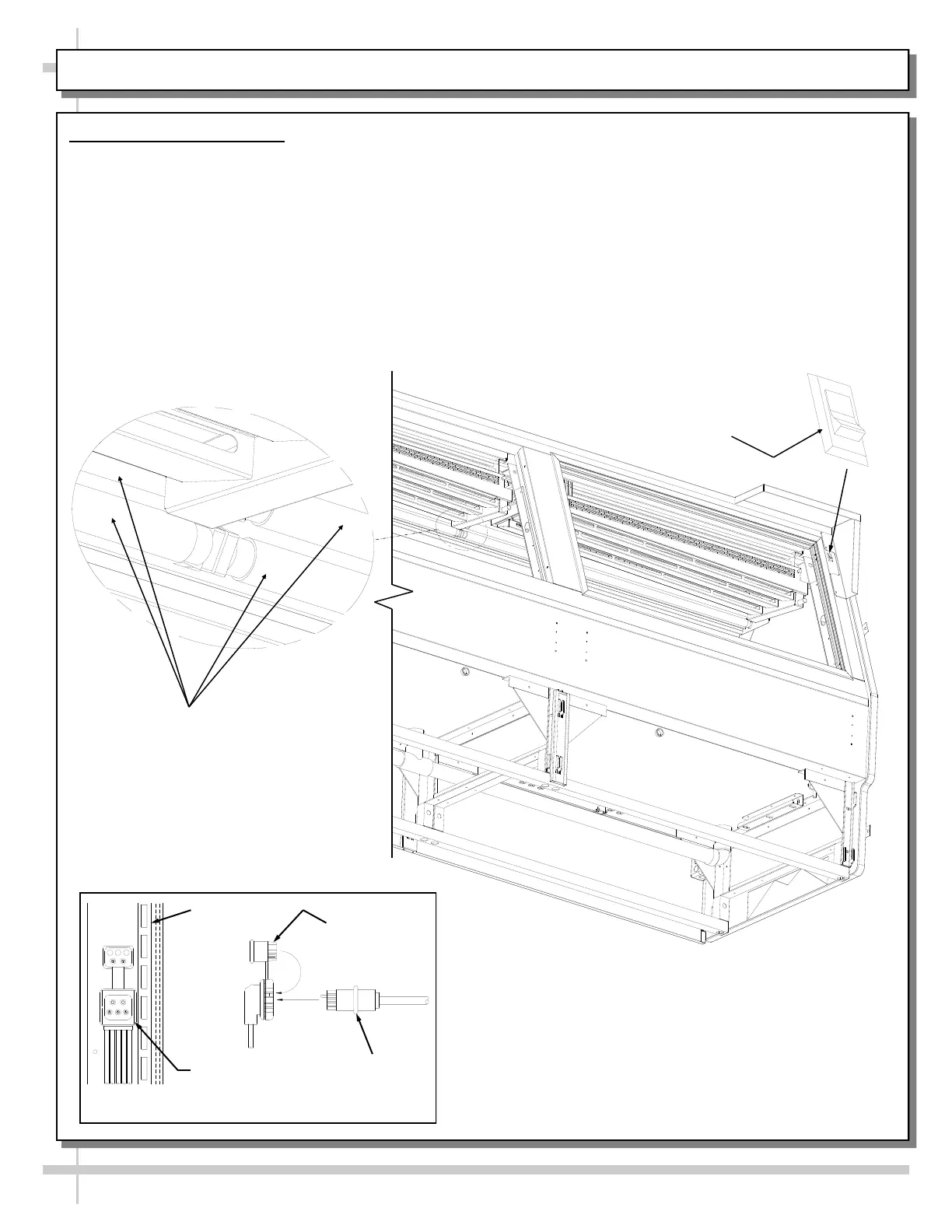

to be on. See illustration below-left.

Light

Fixtures

Cap

Plug

Receptacle

Raceway Receptacle, Plug and Cap

Raceway

Light Switch
