22
OPERATION: SELF-CONTAINED MODEL MEAT CASE REAR DRAIN/TEMPERATURE CONTROLLER
1. Rear ‘Ball Valve’ Drain System
Certain Self-Contained Meat units have a drain sys-
tems that routes water to a drain spout (bypassing
evaporator pan) by using a drain ‘ball valve’ handle.
This drain can flow to a bucket, hose or floor drain.
This feature allows more thorough cleaning of tub
area. See CLEANING SCHEDULE TO BE
PERFORMED BY STORE PERSONNEL for
additional instructions on cleaning unit.
• Raised position of drain ‘ball valve’ handle
allows water to flow to internal evaporator pan.
• Lowered position of drain ‘ball valve’ handle
allows water to flow through rear drain spout.
• See illustrations on this page.
• Caution! Make certain you have a bucket or
hose connected to drain (routed to floor
drain) prior to re-routing water flow!
2. Temperature Controller
• The Programmable Controller maintains proper
case temperature.
• See PROGRAMMABLE CONTROLLER section
in this manual for specifics.

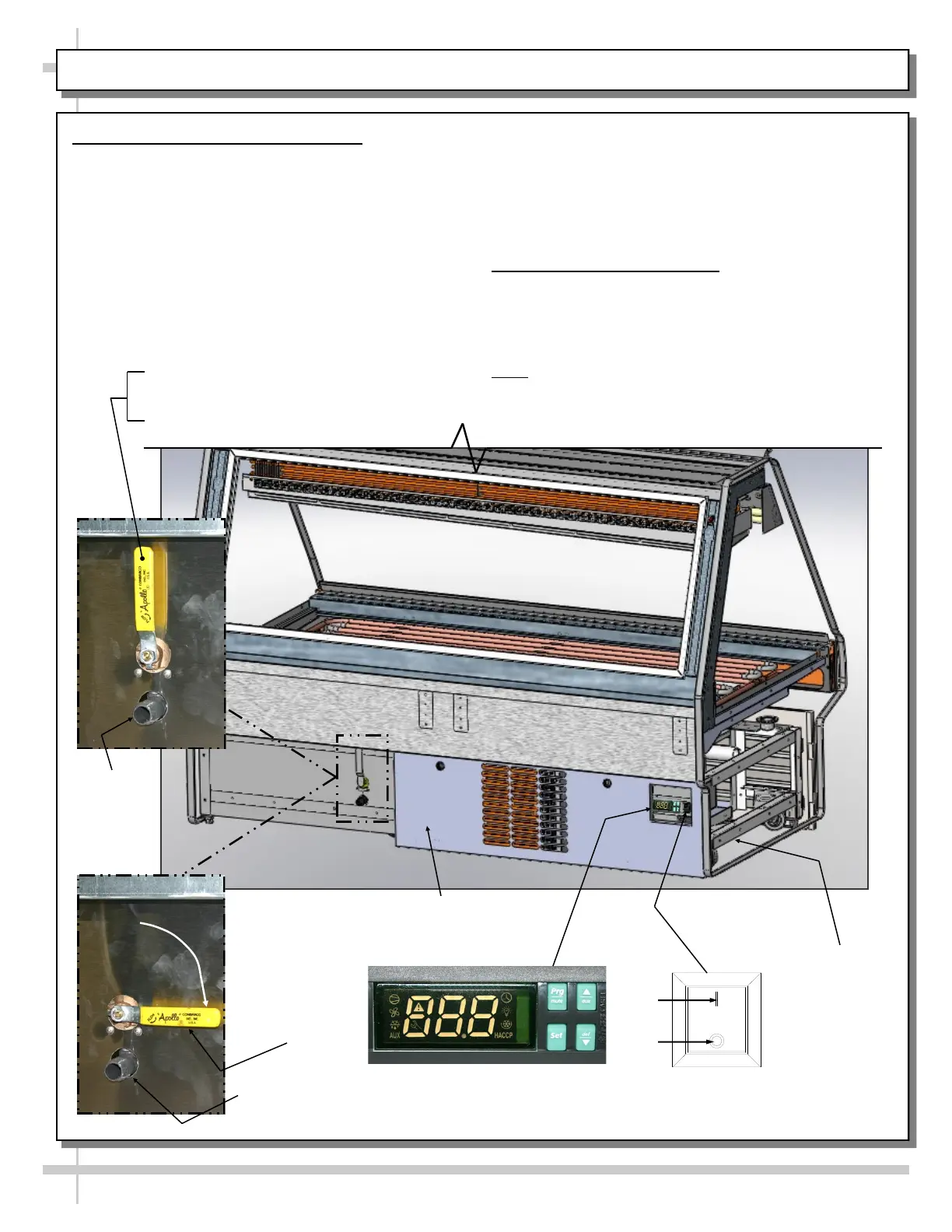

Note: View of model shown below is partially
disassembled for illustrative purposes only.
Main Power
Switch
OFF
ON
--- Sample Programmable Controller ---
Refrigeration
Package
(at Case
Underside)
Drain ‘Ball’
Valve Handle
at Lowered
Position
(Water Flows
through Drain
Spout)
Drain Spout
Rear Panel (May Be
Lifted Up & Off
Drain
Spout
Drain ‘Ball’ Valve Handle at Raised Position
(Water Flows To Internal Evaporator Pan)
--- Model GMG6 Shown Above ---
