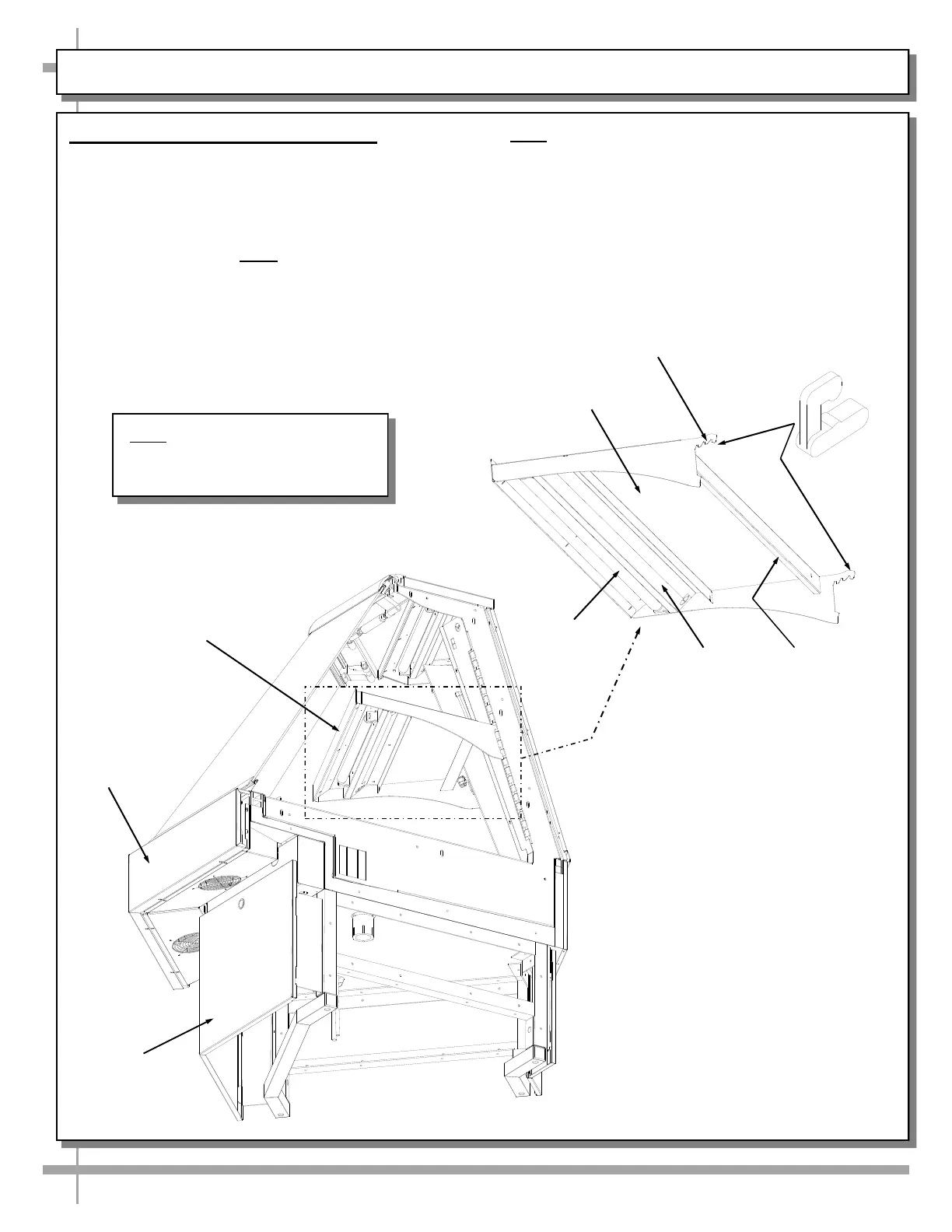

MAINTENANCE FUNDAMENTALS, CONT’D: SHELF ASSEMBLIES

2. Shelf Assembly (Standard Style)

• Shelves may be removed from uprights for

cleaning or service.

• For lighted shelving, unplug the light cord and

detach from the rear shelf support prior to

removing from case.

• Remove brackets. Note: It may be necessary

to remove the bracket retainer. Pliers will be

required to accomplish this task; pull bracket

retainers out of upright toward front of case.

Shelf

Bracket Retainer

(one for each shelf)

Rear Rack

Support

Bulb

Front

Toe-Kick

Shelf

Light

Assembly

Front

Panel

• Note: Depending upon model and options chosen,

shelf assembly may be tilted forward at 5°

increments (see illustration below right).

• See next page for additional shelf assembly styles

(and step styles) on various models.

5° Notches Allow Shelf

To Be Tilted

Note: Illustration shown may not

exactly reflect every feature or

option of your particular unit.
