INSTALLATION, CONT’D: FRAME SUPPORT RAIL SHIMMING

5. Position & Align Case Alongside Other

Cases

 Before adjusting levelers (or shimming frame

support rails), make certain that the case is in

proper position and, if required, aligned with

adjoining case.

 This may require the repositioning of the case

you are installing or the already positioned case.

 Though case below shows both end panels,

case adjoinments routinely consist of end panel

removal for case-to-case placement.

Frame Support

Rails

6. Frame Support Rails Must Be Shimmed

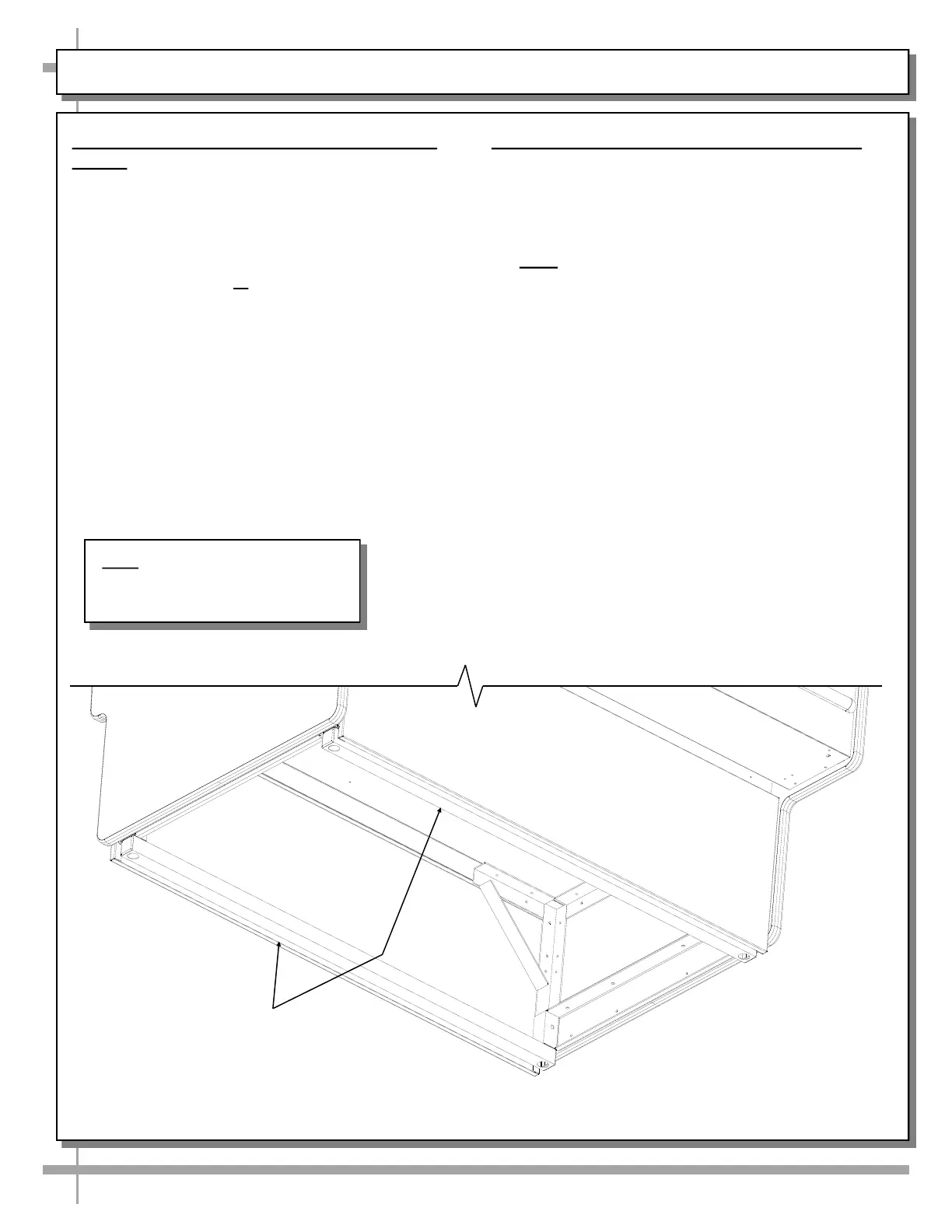

 Illustration below shows case with frame

support rails.

 Shims will be provided with all cases that have

frame support rails.

 Use shims to level case.

 Note: After case is in position, it must be

sealed to floor to prevent entry or leakage

of liquid or moisture.

Note: Illustration shown may not

exactly reflect every feature or

option of your particular unit.
