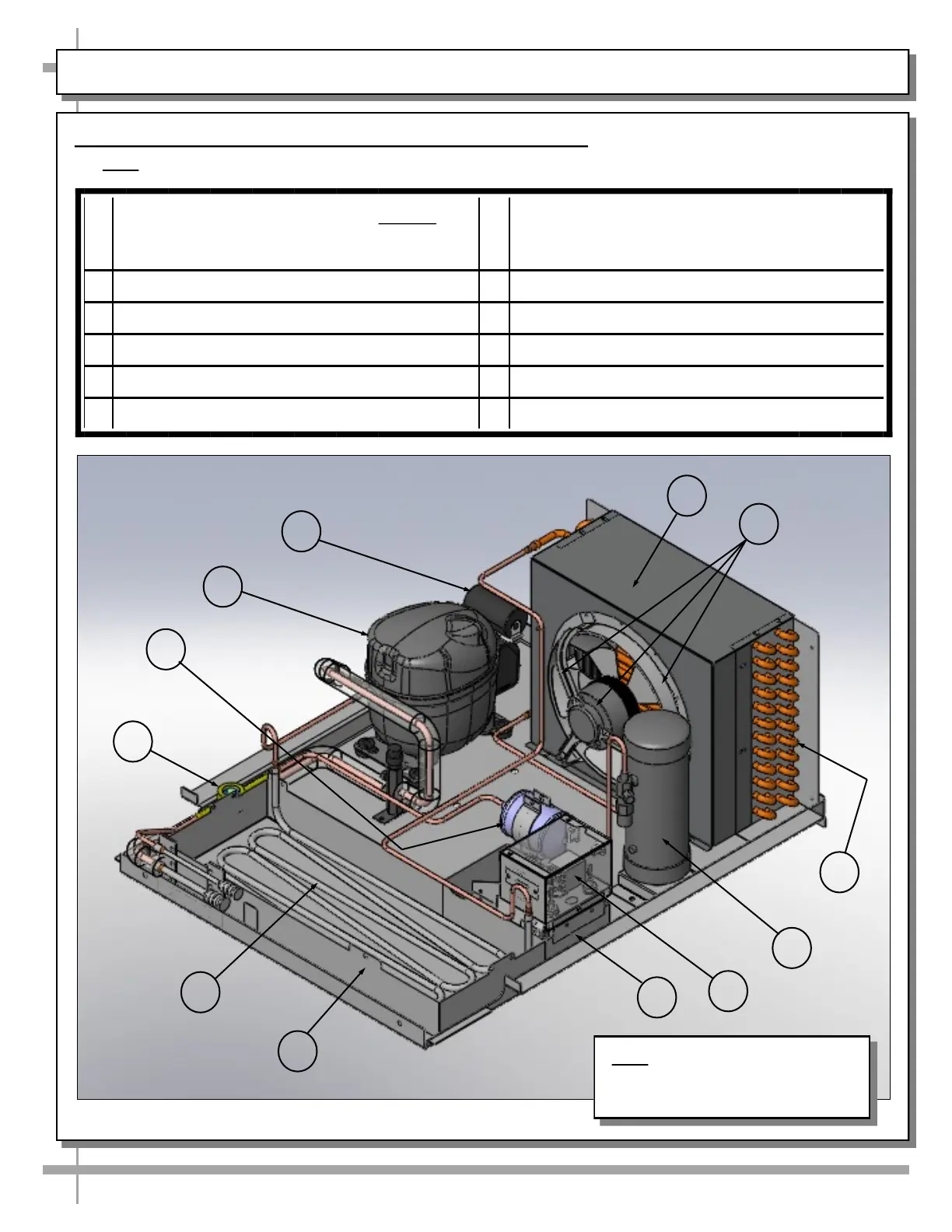

MAINTENANCE FUNDAMENTALS, CONT’D: CONDENSER PACKAGE LAYOUT
9. General EnergyWise Condenser Package Configuration
Note: Your particular compressor may have slightly different refrigeration package layout.
1
Fan Shroud / Condenser Coil Cover: (Optional:
May Have Shroud Attached to House Clean
Sweep™ Automatic Condenser Coil Cleaner)
7 Hot Gas Condensate Evaporator Pan
2 Fan Motor & Bracket 8 Hot Gas Loop
3 Condenser Coil Tubing 9 Sight Glass
4 Receiver 10 Filter / Drier
5 Electrical Box (To Overflow Condensate Pan) 11 Hot Gas Loop Compressor
6 Overflow, Hot Gas Condensate Evaporator Pan 12 Start Components, Hot Gas Loop Compressor
1
2
3
4
5
6
8
9
10
11
12
7
Note: Illustration shown may not
exactly reflect every feature or
option of your particular unit.
