MAINTENANCE FUNDAMENTALS, CONT’D: REAR SLIDING DOORS

4. Removing the Rear Sliding Doors

Note: Doors are not interchangeable. There is an

inner and outer door. The outer must be removed

first and replaced last.

 The outer door is the right hand door (from the

service side or rear of case).

 It is identified by a stop located at the lower right

hand corner to the inside of the case.

 Move doors toward the center of the case.

 Individually lift each door up toward the top of the

case; pivot the bottom of the door out.

 Carefully set rear sliding doors down to prevent

them from falling.

 Replace rear sliding doors in reverse order they

were removed.

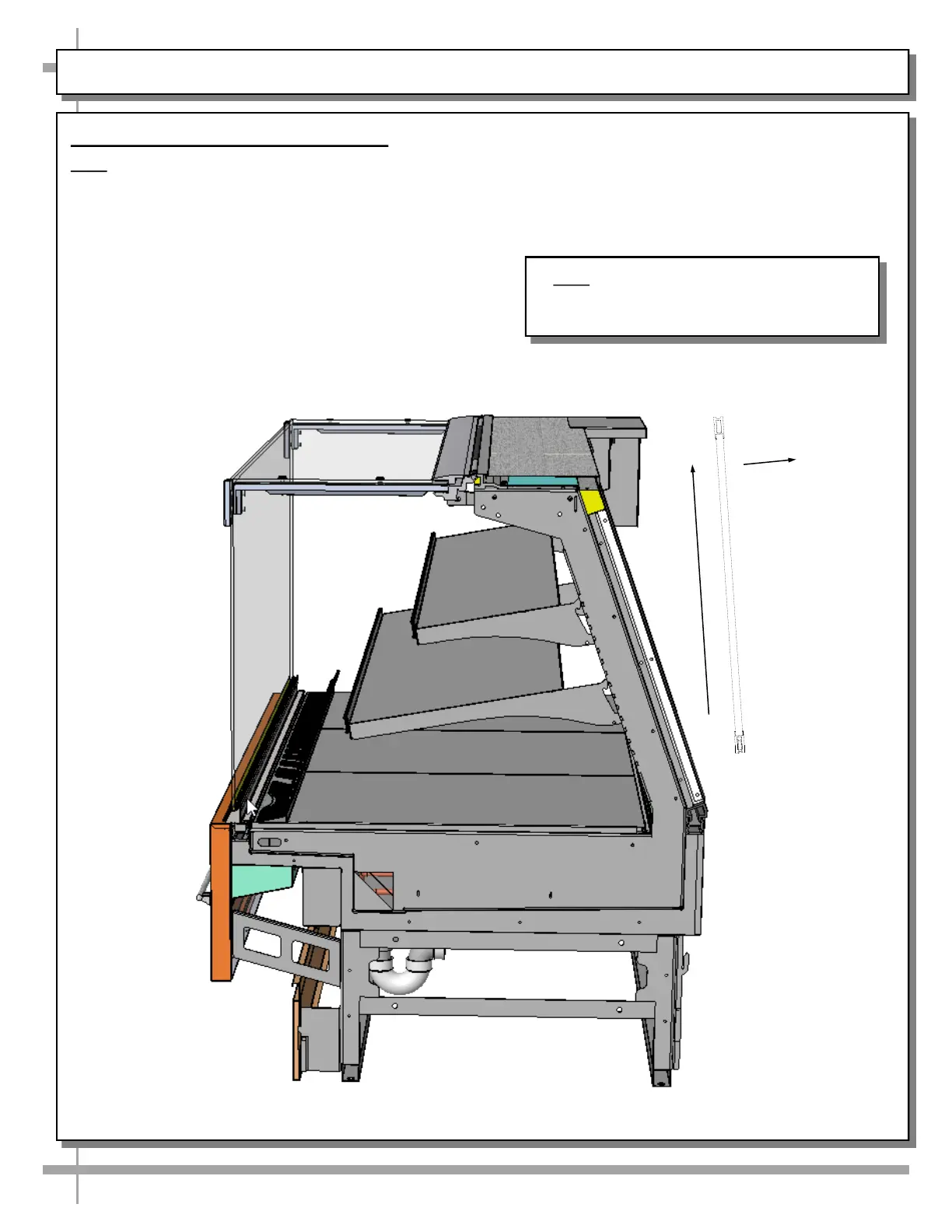

--- Case With Set of Rear Sliding Doors ---

Note: Model GMDSV6R.7115C (shown)

may not exactly reflect every feature or

option of your particular unit.
