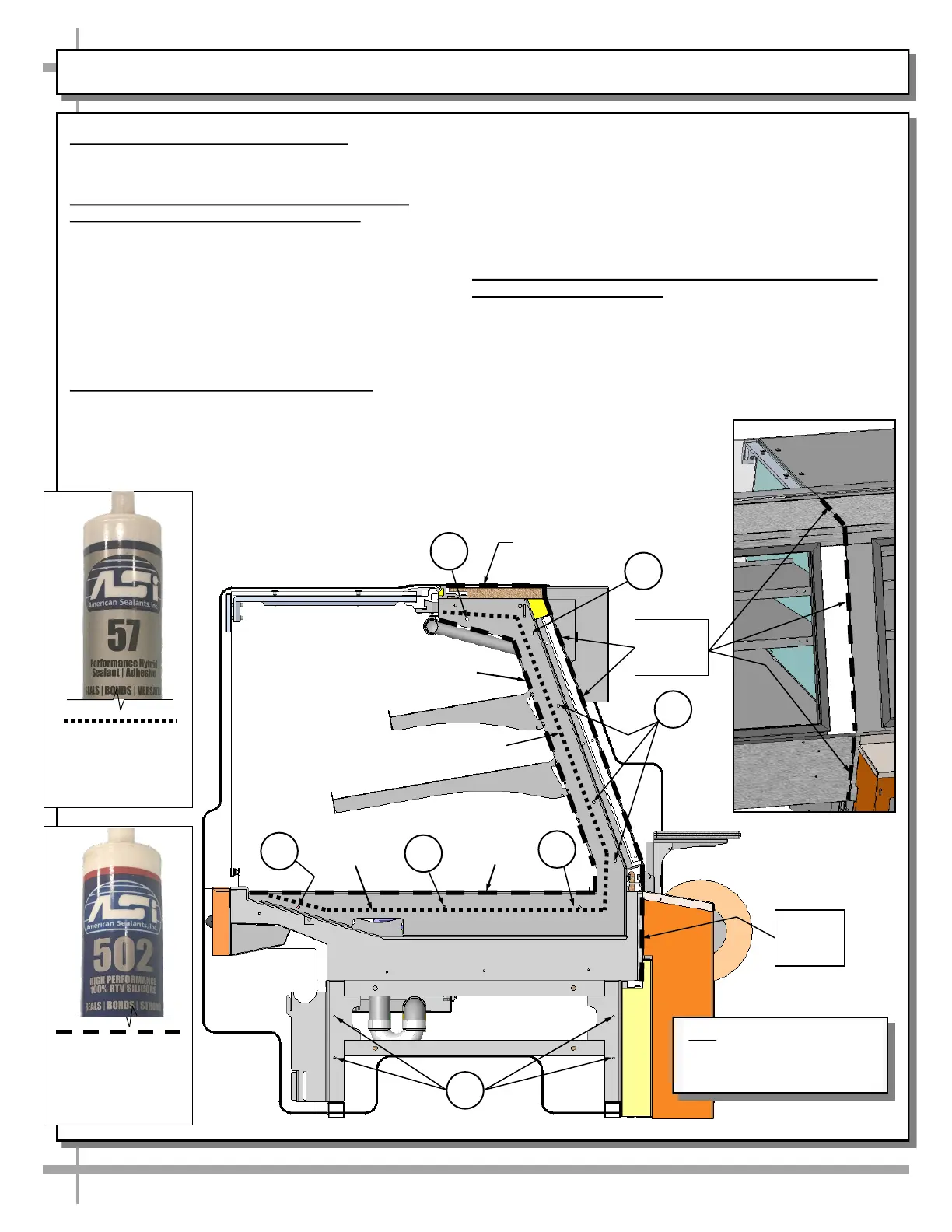

Note: Model GMDSV8R.7306 Is

Shown at Left. Decking And Front

Toe-Kick Have Been Removed

For Illustrated Purposes Only.

INSTALLATION, CONT’D: CASE ADJOINMENT INSTRUCTIONS

4. Case Adjoinment Instructions

>> Warranty is void if improper sealant/urethane is used.

>> Lay generous beads of sealant/urethane as specified.

A. Prior To Adjoinment - Apply Industrial Grade

Urethane Adhesive at Center of Uprights

 Lay a generous bead of industrial grade urethane

adhesive at center of uprights (in non-visible areas).

 This urethane adhesive prevents refrigerated air from

escaping between cases (causing condensation and

reducing refrigeration efficiency) as well as preventing

ants or other insects from entering case.

 See industrial grade urethane adhesive illustration

below-left.

B. Adjoining Cases - Using Bolts and Nuts

 Use appropriately sized nuts and bolts for each hole.

#1 - Hole is accessible through rear sliding door (if you

are able to avoid gas cylinder, attach bolt); otherwise

start at #2 in bolt/nut attachment process.

#2 - Holes are accessible through rear sliding door.

#3 - Holes are accessible at underside of decking.

Decking must be removed to attach bolts/nuts.

#4 - Holes are accessible at base frame (through front of

case after front toe-kick has been removed).

 Tighten nuts securely (but do not over-tighten).

 See illustration below.

C. After Adjoinment - Apply Food Grade Silicone Sealant

To Inner And Outer Seams

 After all nuts/bolts are securely attached to case, apply a

generous bead of food grade silicone sealant at both inner

and outer seams.

 When properly applied, this food grade silicone sealant will

prevent water from seeping between cases (into the case or

to the floor) as well as crumbs or other residue from

entering between case seams.

 See silicone sealant illustration

below-left.

>> You must reattach toe-kick and

decking after case adjoinment

process is complete.

Refrigeration

Bead

Inner

Sanitation

Bead

Inner Sanitation

Bead

Refrigeration

Bead

Outer Sanitation Bead

To Be Applied At Rear

Adjoinment Seams

(Shown Above)

Outer

Sanitation

Beads

Outer

Sanitation Bead

Outer

Sanitation

Bead

Industrial Grade

Urethane Adhesive

(For Refrigeration

Bead Applications)

Silver, Black or Clear

Silicone Sealant

Conforming To NSF/

ANSI 51 Specs (For

Sanitation
