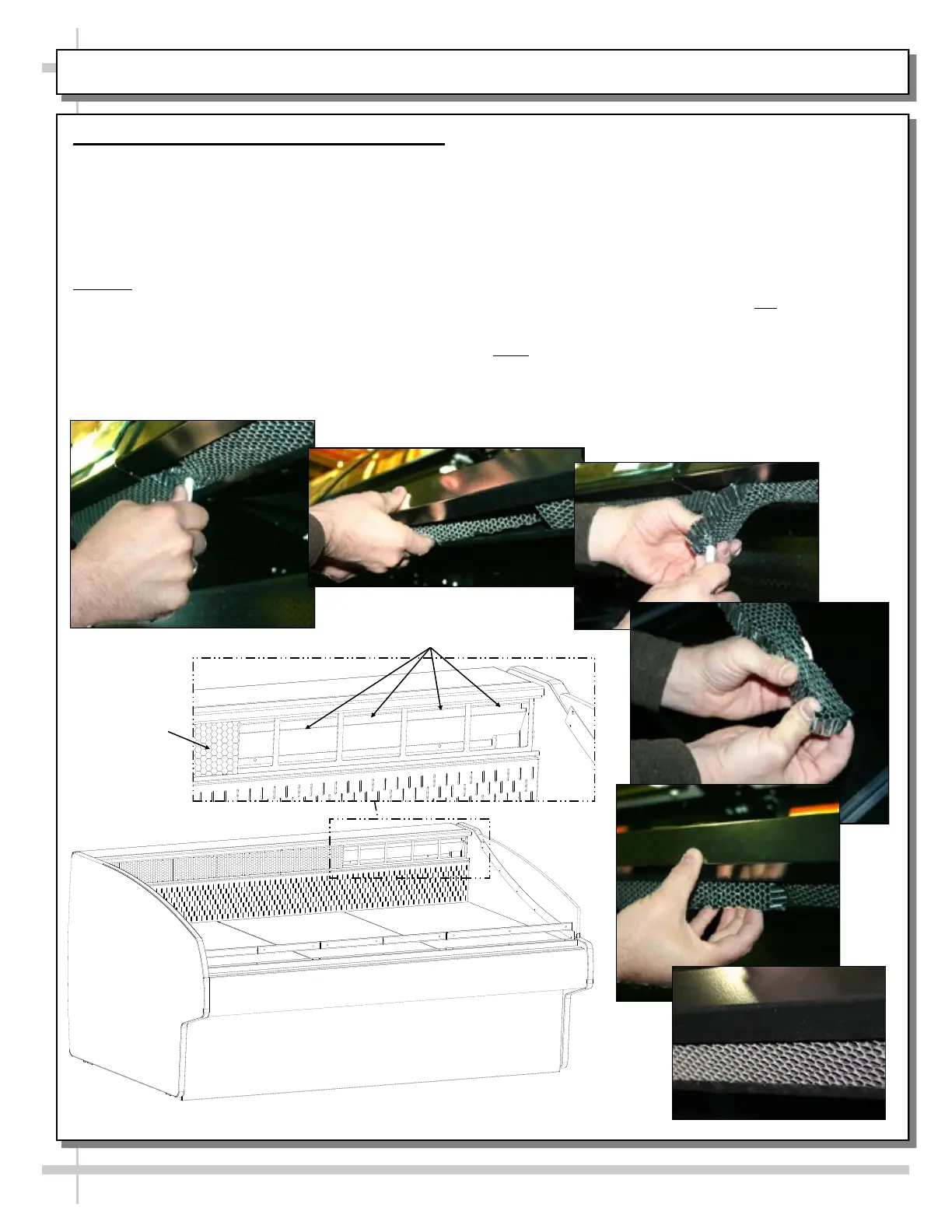

HONEYCOMB AIR DIFFUSERS (SERVICE TECHNICIANS ONLY) - PAGE 1 of 2

1. Flat Case Honeycomb Air Diffuser Removal

See PREVENTIVE MAINTENANCE (TO BE

PERFORMED BY TRAINED SERVICE PROVIDER)

section in this manual for cleaning frequency.

A. Wedge a non-metallic device of suitable strength

(such as a ballpoint pen) between the honeycomb

and the end panel.

Caution! Use care not to dislodge the heating wire

(that prevents condensation on the lamp assembly).

B. Apply pressure to collapse the honeycomb to

allow it to be pulled out of honeycomb retainer.

C. Carefully pry downward and away from the

honeycomb retainer.

Clean honeycomb with warm water and soap

solution. Submerse if necessary. Use brush to

dislodge stubborn or sticky residue. Dry by using

vacuum’s blow mode (vs. suction mode).

Honeycomb Air Diffuser Installation

D. Squeeze honeycomb to allow it to fit into the

honeycomb retainer.

E. Carefully slide honeycomb into place.

F. Adjust honeycomb so that it fits flat against

retainer. It must not be wavy or out of position.

Note: See next page for honeycomb air diffuser

information pertaining to oval cases.

Model GLDSS6R is Shown Above

Honeycomb

Air Diffuser Removed

Honeycomb

Intact
