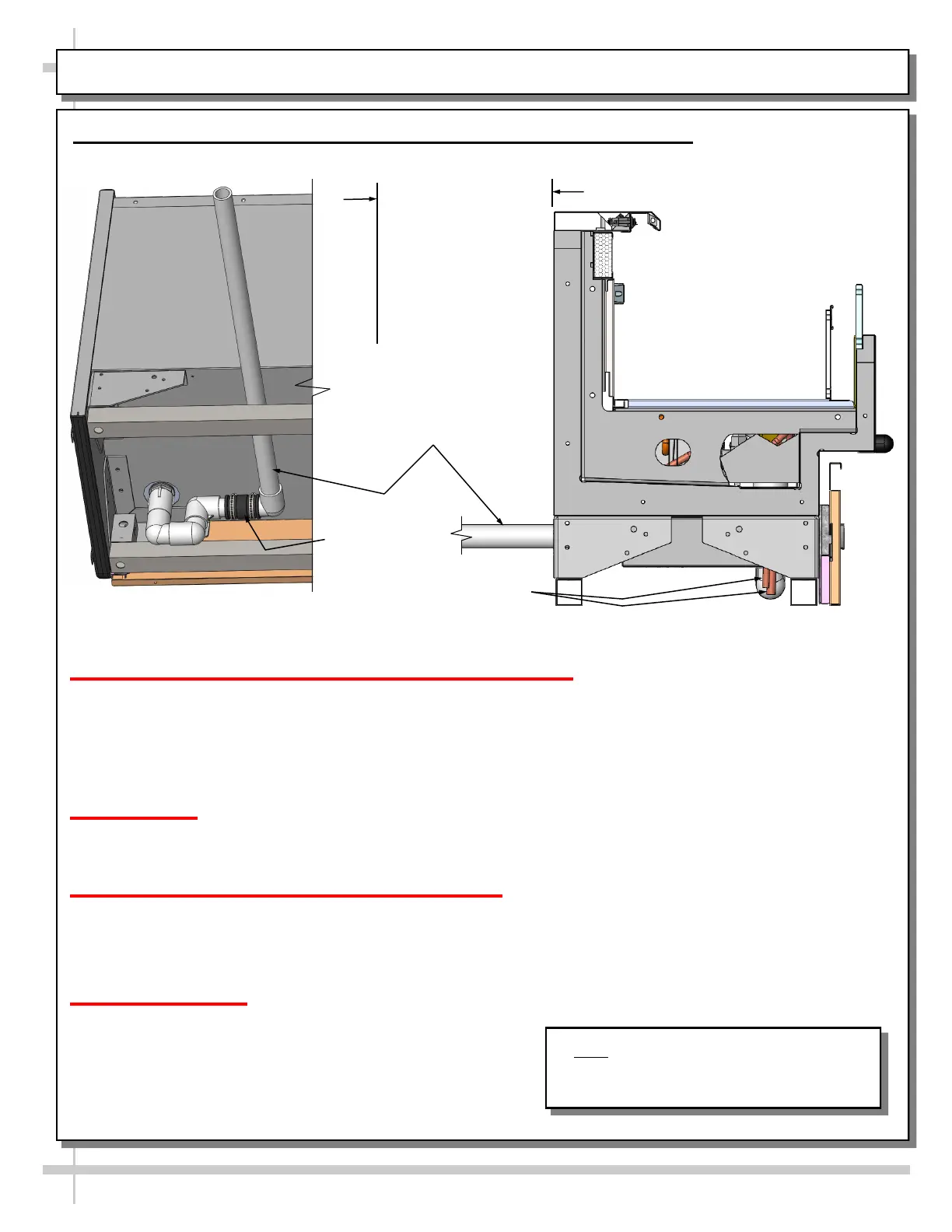

INSTALLATION: FIELD SERVICE CONNECTION SPACE REQUIREMENTS

4. Field Service Connection Requirements - Follow These Instructions

Note: Any Changes To This Document

Must Also Be Made To SCC Field

Service Connection Guide P/N 20-68334.

PURPOSE OF THESE INSTRUCTIONS: FOLLOWING THESE

INSTRUCTIONS WILL ENABLE THIS CASE TO BE MOVED

FORWARD FOR SERVICING FANS OR OTHER COMPONENTS

IN THE REAR (LARGER) CASE.

BRAZING: KEEP CASE 2-FOOT AWAY FROM REAR (LARGER)

CASE WHILE BRAZING REFRIGERATION LINES.

PVC DRAIN TUBE ATTACHMENT: SLIDE CASE BACK

AGAINST REAR (LARGER) CASE. THEN, CONNECT PVC

DRAIN TUBE TO COUPLER.

ELECTRICAL: ALLOW 2-FOOT SLACK IN WIRING.

Important!

Keep 2-Foot

Space From

Case Rear

(Larger Case)

While Brazing!

Coupler

PVC Drain Tube (To Be

Attached To Coupler)

Refrigeration Lines
