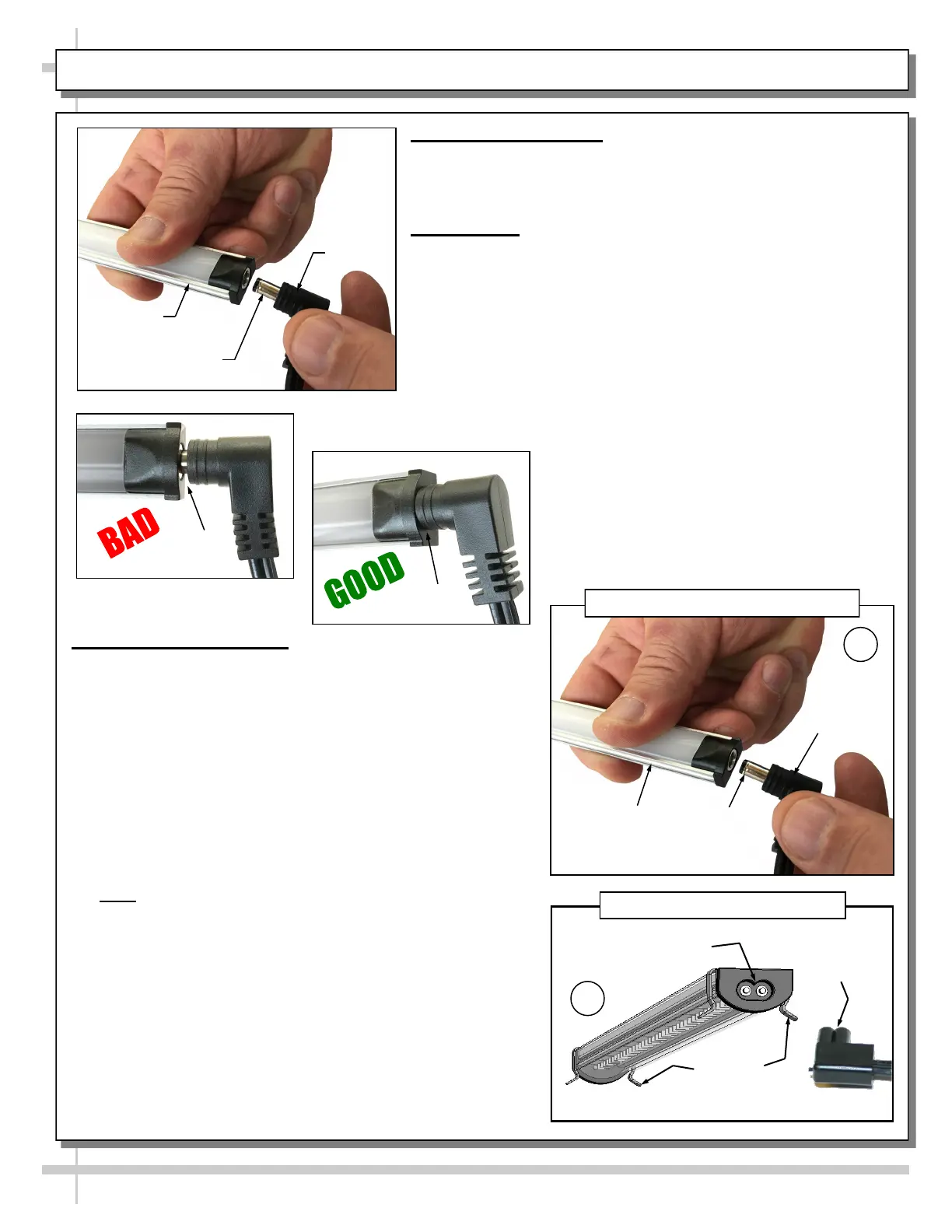

TROUBLESHOOTING (TO BE PERFORMED BY STORE PERSONNEL), CONT’D

1. Power Cord and Plug

• Power cord and plug (for LED lights) locations vary

depending upon model.

• Caution! You must plugged in an approved outlet!

2. LED Lights

• LED lights are usually located at both header and shelving

of case; placement on your merchandiser may differ.

• Check that ALL of the light plugs are properly connected to

the LED light.

• Plug must be inserted ALL THE WAY into the LED light

orifice (with no gap) to work properly.

• See TROUBLESHOOTING section in manual if LED lights

malfunction.

3. LED Style Light Fixtures

Removal of faulty LED light:

• LED lights rarely require change-out.

• To remove faulty LED light, simply grasp light near

retaining spring and carefully pull away from its spring.

Disconnect plug from LED’s socket.

• Contact Structural Concepts’ Technical Service

Department for replacement parts (see Technical

Service section of this manual for information).

Replacement of LED light:

• To replace LED light fixture, simply insert new LED light

at proper position (socket must be near plug). Carefully

snap into metal springs so LEDs are held firmly in place.

• Note: LED light and plug must be connected in a

specific manner or they will not work.

A. Certain plug designs (“barrel type”) merely require that

plug be pushed all the way in.

B. Other plugs require “oval edge” of plug to

connect to oval edge of LED light.

• See illustrations at right.

LED’s Oval Form

Plug’s

Oval Form

--- LED Plug & Light Fixture ---

Retaining

Springs

Plug

LED’s Barrel

Shaped

Insert

LED

Light

“B-Shaped” LED Plug & Light Fixture

“Barrel-Shaped” LED Plug & Light Fixture

LED Light

Plug

LED’s Barrel

Shaped Insert

No Gap

Gap
