INSTALLATION: REFRIG. LINE & DRAIN STUB-UP CONNECTION - MODEL GJDSS10RLB ONLY

11. Refrigeration Line Stub-Up Connection

• Remove front panel/toe-kick.

• Refrigerant stub-up access opening is at the

front on the left hand side of the base (as shown

in illustration below).

• See previous page for Model GJDSS8RLB

refrigeration line stub-up connection layout.

12. Evaporator Coil Drain Connection

• Coupler connection point is under the case near

center of case (as shown in below illustration).

• Front panel/toe-kick may be removed to allow

access when connecting PVC drain tube to

coupler.

• Maintain 1/4”-fall per foot to provide proper

drainage.

• See next page for Model GJDSS12RLB

evaporator coil drain connection layout.

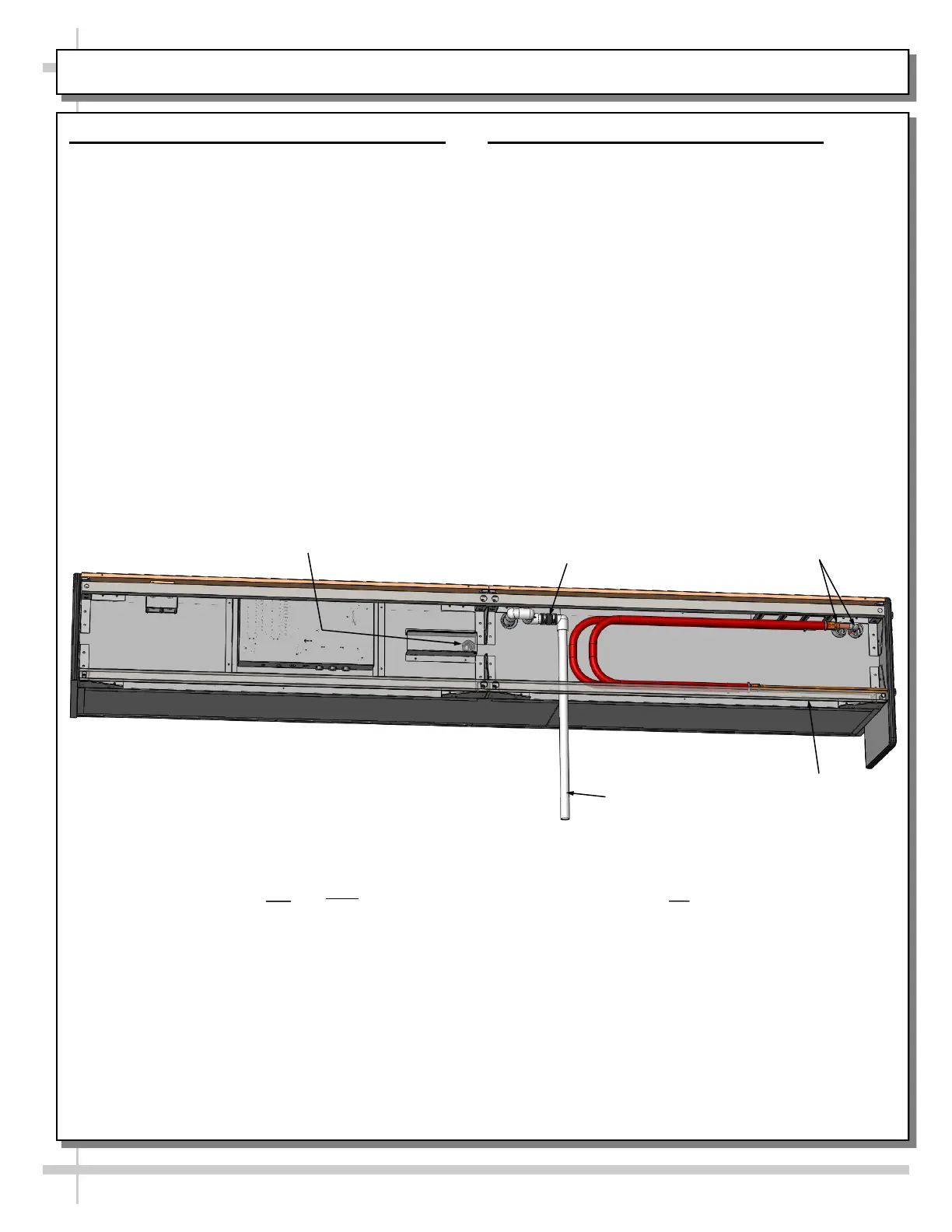

Case Rear

Case Front

Refrigeration

Lines Stub-Ups

Note: Model GJDSS10RLB is Shown Above.

See Next Page for Model GJDSS12RLB Layout.

Wire Raceway

Route Shown Under

Hat Channel

Coupler

PVC Drain Tube

(To Be Attached

To Coupler)

Frame Support Rail

Shown Transparent

For Illustrative

Purposes Only
