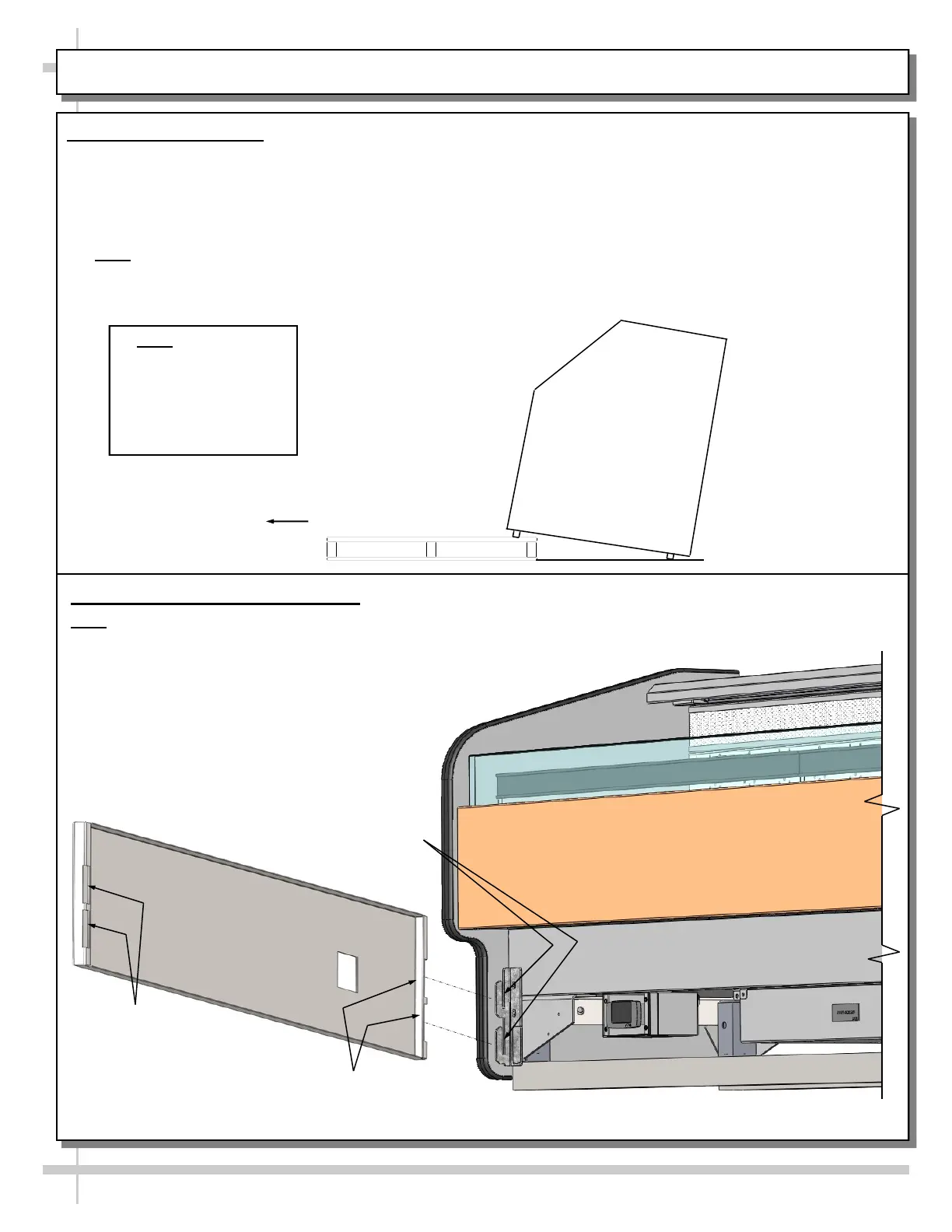

INSTALLATION: REMOVAL FROM SKID / REMOVING LOWER FRONT PANELS

1. Remove From Skid

• Remove shipping brace that may be securing case to skid.

• Support case to prevent tipping.

• Caution! Frame support rails (or levelers) can be damaged if case hits floor with heavy force!

• Carefully slide unit to rear of skid and tip backward off skid.

• Illustration may not reflect every feature or option of your particular case.

• Note: Case can be repositioned with pallet truck when front lower panel is removed. Blocking may be

necessary to obtain adequate height.

Slide Skid Out

Note: Illustrations

shown reflect a general

outline of sample

cases and do not reflect

features or options of

your particular model.

2. Removing Lower Front Panels

Note: No screw removal required: Simply lift lower front panel up (off hooks) and out (away from case).

View of Unit After Front Panel Removed

Hooks For Lower

Front Panel

Slots For Lower

Front Panel

Slots For Lower

Front Panel
