INSTALLATION: REFRIG. LINE & DRAIN STUB-UP CONNECTION - MODEL GJDSS12RLB ONLY

13. Refrigeration Line Stub-Up Connection

• Remove front panel/toe-kick.

• Refrigerant stub-up access opening is at the

front on the left hand side of the base (as shown

in illustration below).

• See previous page for Model GJDSS10RLB

refrigeration line stub-up connection layout.

14. Evaporator Coil Drain Connection

• Coupler connection point is under the case near

center of case (as shown in below illustration).

• Front panel/toe-kick may be removed to allow

access when connecting PVC drain tube to

coupler.

• Maintain 1/4”-fall per foot to provide proper

drainage.

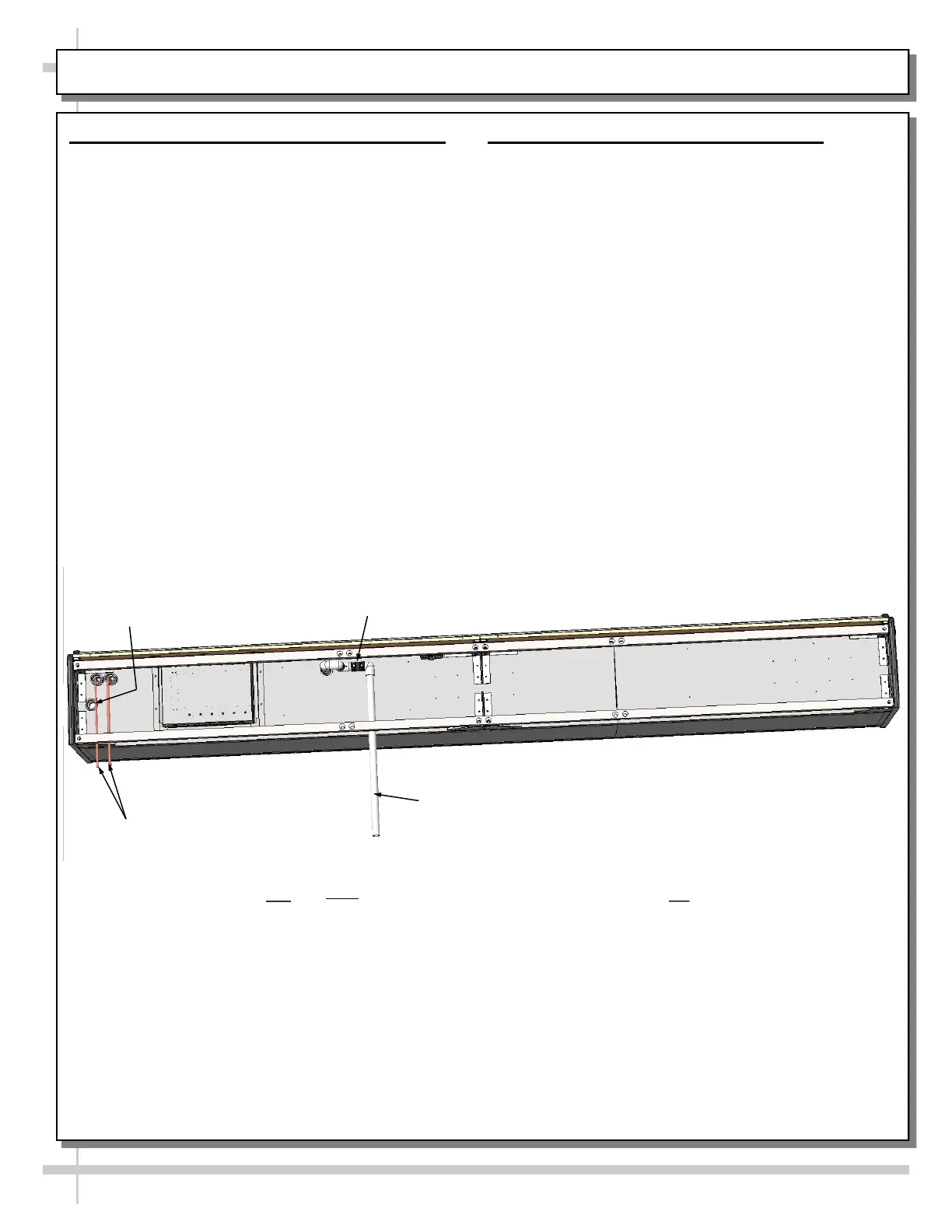

Case Rear

Case Front

Refrigeration

Lines Stub-Ups

Note: Model GJDSS12RLB is Shown Above.

See Previous Page for Model GJDSS10RLB Layout.

Wire Raceway

Route

Coupler

PVC Drain Tube

(To Be Attached

To Coupler)
