8

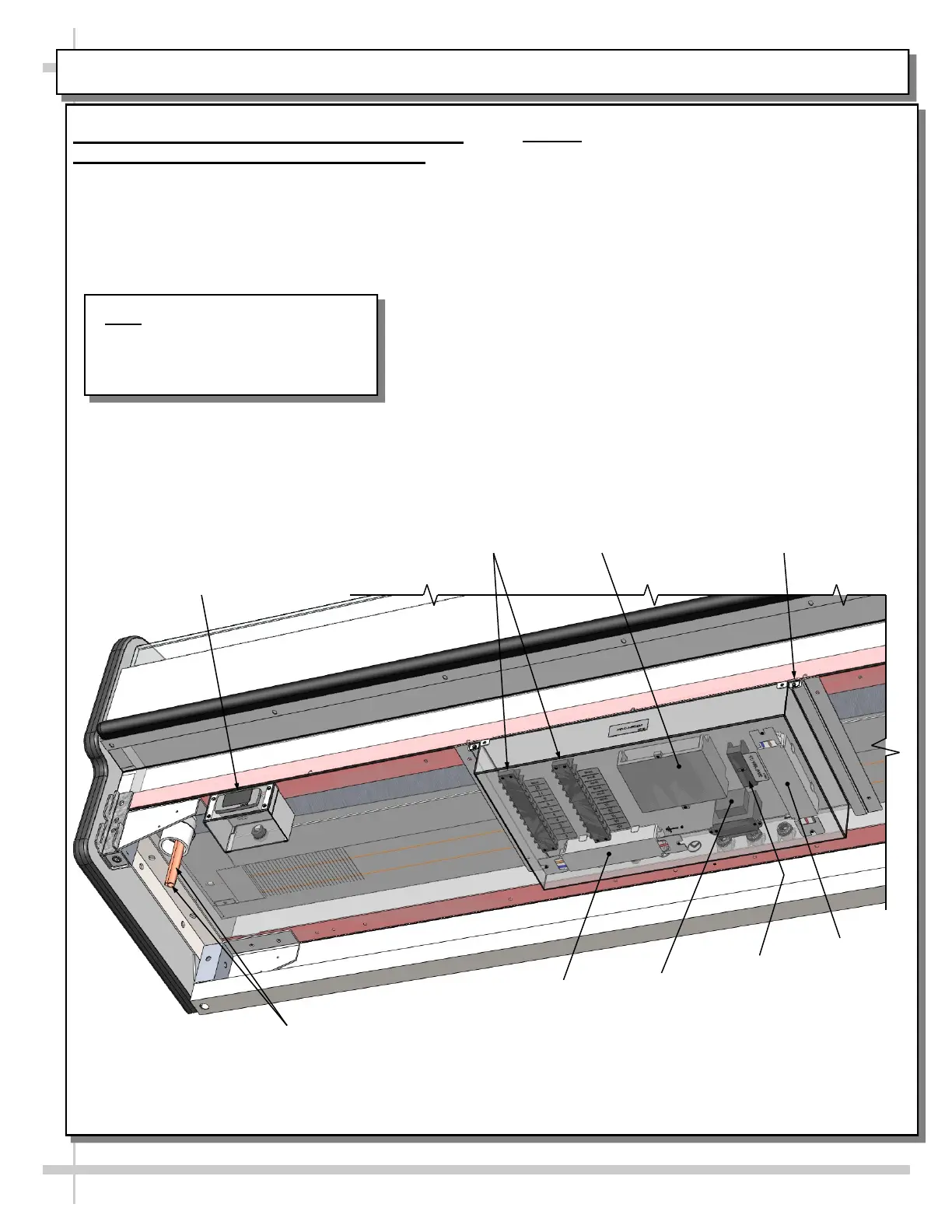

INSTALLATION: UNDERSIDE FIELD ACCESS COMPONENTS (MODEL GJDSS6RLB DISPLAYED)
5. Underside Field Access Box Components
and Underside Refrigeration Line Route
• On certain models, field access components (a
variety of which is shown below) are at underside.
• Model GHSSEH456RLB is illustrated below; your
underside component layout may vary.
• Caution! Only certified electricians are to perform
electrical connectivity duties.
• To access large field access box, two screws (at
case front) must be removed and box slid out.
• Temperature controller is customer maintained.
See your store manager for operational specifics.
Note: Illustration Reflects Remote
Model GJDSS6RLB With
Underside Electrical Components.
Your Case May Vary.
Dixell®
Display
LED
Driver
Temperature
Controller
Transformer
Refrigeration
Lines
Fuse
Block
Remove Screws (Typ.)
to Slide Out Large Field
Access Box From
Underside Of Case
LED
Driver
Terminal
Blocks
