MAINTENANCE: LED LIGHT REMOVAL/REPLACEMENT, PLUG/CORD CONNECTION

1. LED Style Light Fixtures

Removal of Faulty LED Lights:

• Contact Structural Concepts’ Technical Service

Department for replacement LED lights.

• Turn off LED light switch.

• To remove faulty LED light, follow these steps:

A. Disconnect plug from LED light.

B. Using both hands, grasp LED light assembly

(with its magnetic mounting clips). Pull

downward and off its shelf (or header).

C. Remove magnetic mounting clips from LED light

by pressing against flange part of clip with

thumb.

>> Note: Mounting clips MAY be riveted to shelf or

header. In such instances, simply remove LED light from

mounting clips by pressing against flange part of clips

with thumb.

Replacement of LED lights:

• Attach magnetic mounting clips onto LED light.

• Adjust magnetic mounting clips so they are equally

spaced on LED light.

• Reattach LED light assembly to its shelf/header.

• Position properly in shelf/header.

>> Note: If mounting clips are riveted to shelf (or head-

er), attach by placing LED in base of clip and then

snapping into clip at FLANGE SIDE.

• Press plug’s barrel-shaped insert deep into LED

light.

• Important: If plug is not inserted ALL THE WAY IN

the LED light’s orifice, the light may not energize.

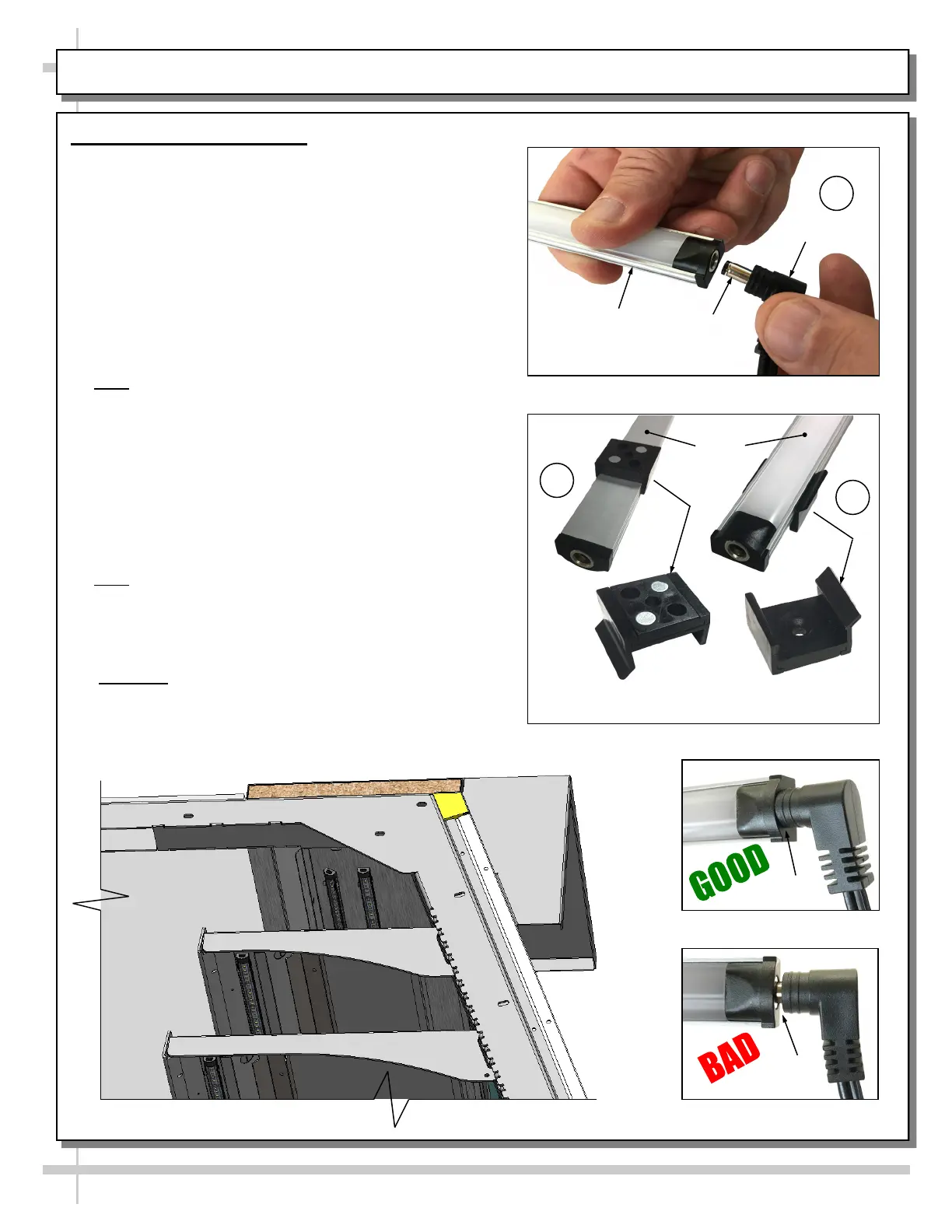

See “BAD” vs. “GOOD” insertion illustrations

below-right.

• Turn LED light switch back on.

Magnetic Mounting

Clip View #2

LED

Lights

Plug

Barrel

Shaped

Insert

LED

Light

Magnetic Mounting

Clip View #1

No Gap

Gap
