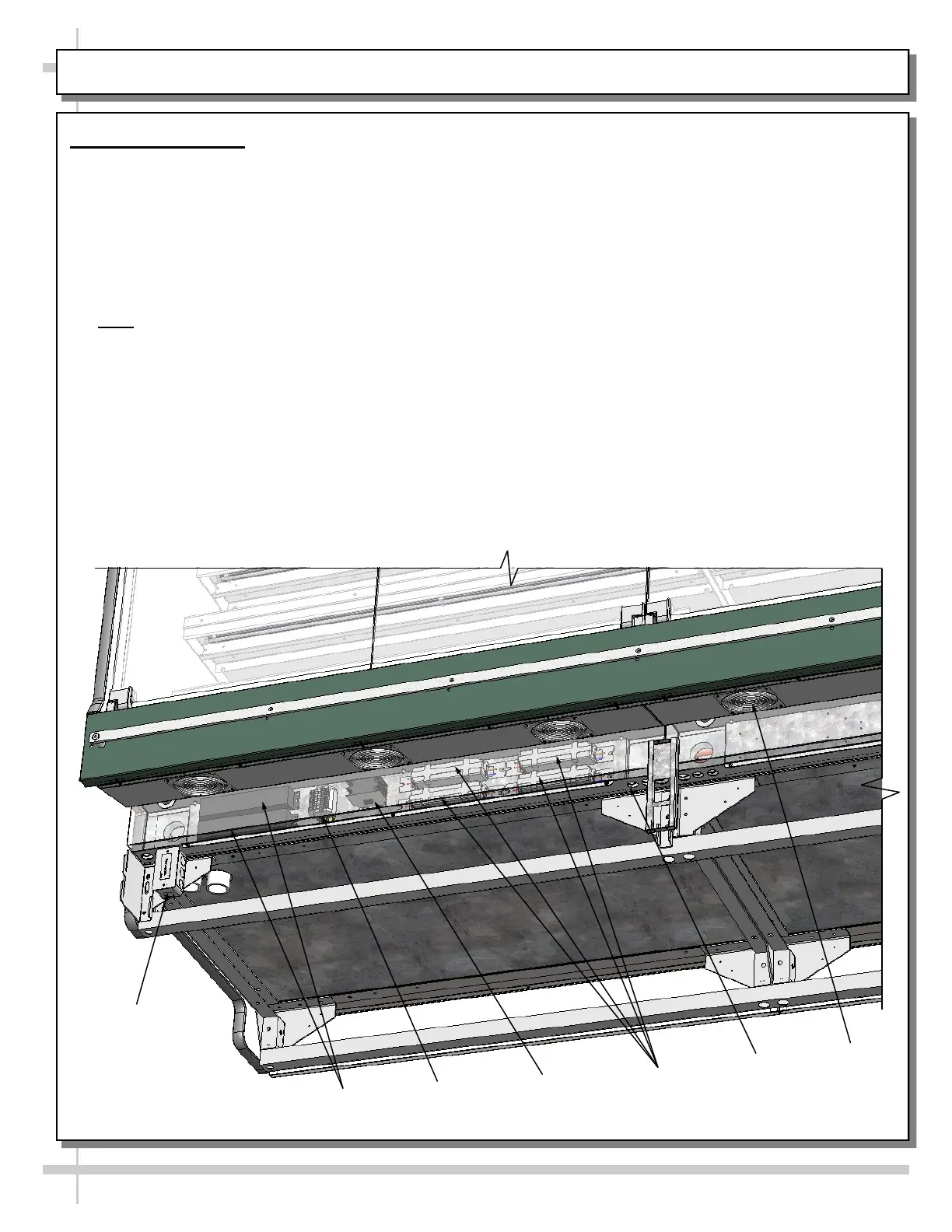

INSTALLATION, CONT’D: ELECTRICAL LAYOUT

4. Electrical Layout

Front Ballast Box or LED Driver Box (Optional)

Remove front panel. See INSTALLATION: REMOVAL FROM SKID, REMOVING VERTICAL LOWER

FRONT PANELS section in this manual for details.

• Stub-up connections are in ballast box.

• Remove ballast box / LED driver box cover.

• Knockouts are on the underside of ballast box /

LED driver box making electrical connections.

• Voltage rating is on serial label at case rear.

• Note: Wiring process must be performed by certified electrician only.

Field Access

Box

Ballasts

Terminal

Block

Contactor

LED Drivers

Axial Fan

(Typ)

Raceway

(Typ.)
