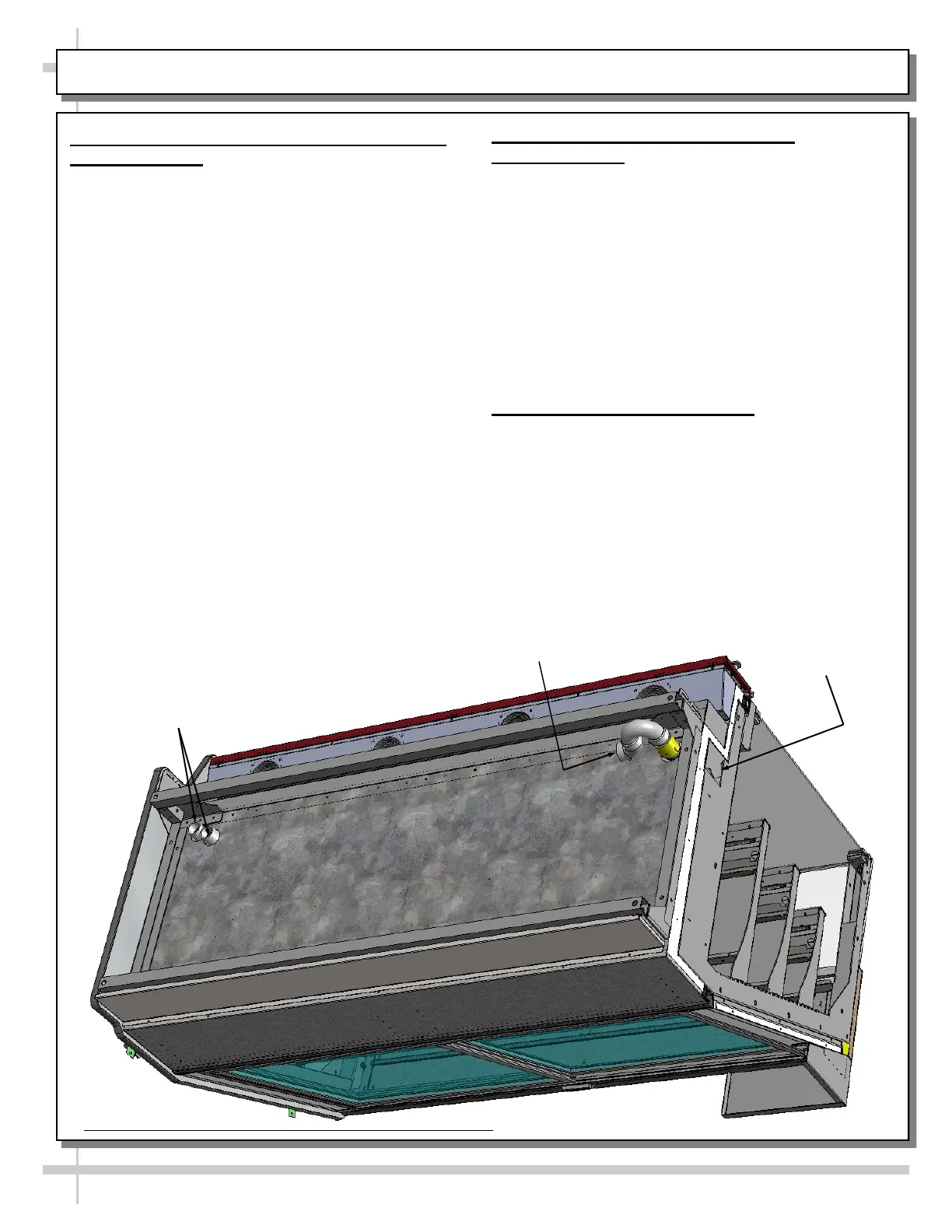

INSTALLATION, CONT’D: REFRIGERATION LINES / STUB-UPS / DRAINS / WIRING DIAGRAMS

8. Refrigeration Line Stub-Up Connections

(Remote Units)

• Remove front panel.

• Refrigerant stub-up access opening is at the

front on the left hand side of the base (see

illustration at top-right).

• Stub-up connections are accessed from inside

the case.

• Remove interior decks.

• Remove fan shroud assembly.

• Line connections are in the tub front, on the left

hand side

• Remove foam material from the entry hole

provided in the tub drain trough.

• Route refrigerant lines through access hole.

• Run case-to-case connections through

cutouts in base.

• Sweat the high and low pressure

connections.

• Fill access hole with suitable filler to insure

watertight integrity of tub.

• Illustration at top-right may not reflect every

feature or option of your particular case.

9. Refrigeration Drain Connection

(Remote Units)

• Depending upon drain access needs, either front

or rear panel may be removed to gain access to

drain stub-up.

• 1.5” male PVC stub-up connection is under the

case on the right hand side.

• Drain stub-up may be at case center in extended

length cases.

• Connect tub drain to floor drain. Maintain

1/4”-fall per foot to provide proper drainage.

• Illustration at top-right may not reflect every

feature or option of your particular case.

10. Electrical Wiring Diagram

• Each case has its own wiring diagram folded

and in its own packet.

• Wiring diagram placement may vary; it may

be placed near condenser fan cover, ballast

box, raceway cover, or other related location.

Refrigeration

Line Stub-Ups

Access

Cutout For

Case-To-Case

Adjoinment

Drain Stub-Up (may be at case

center inextended length cases)
