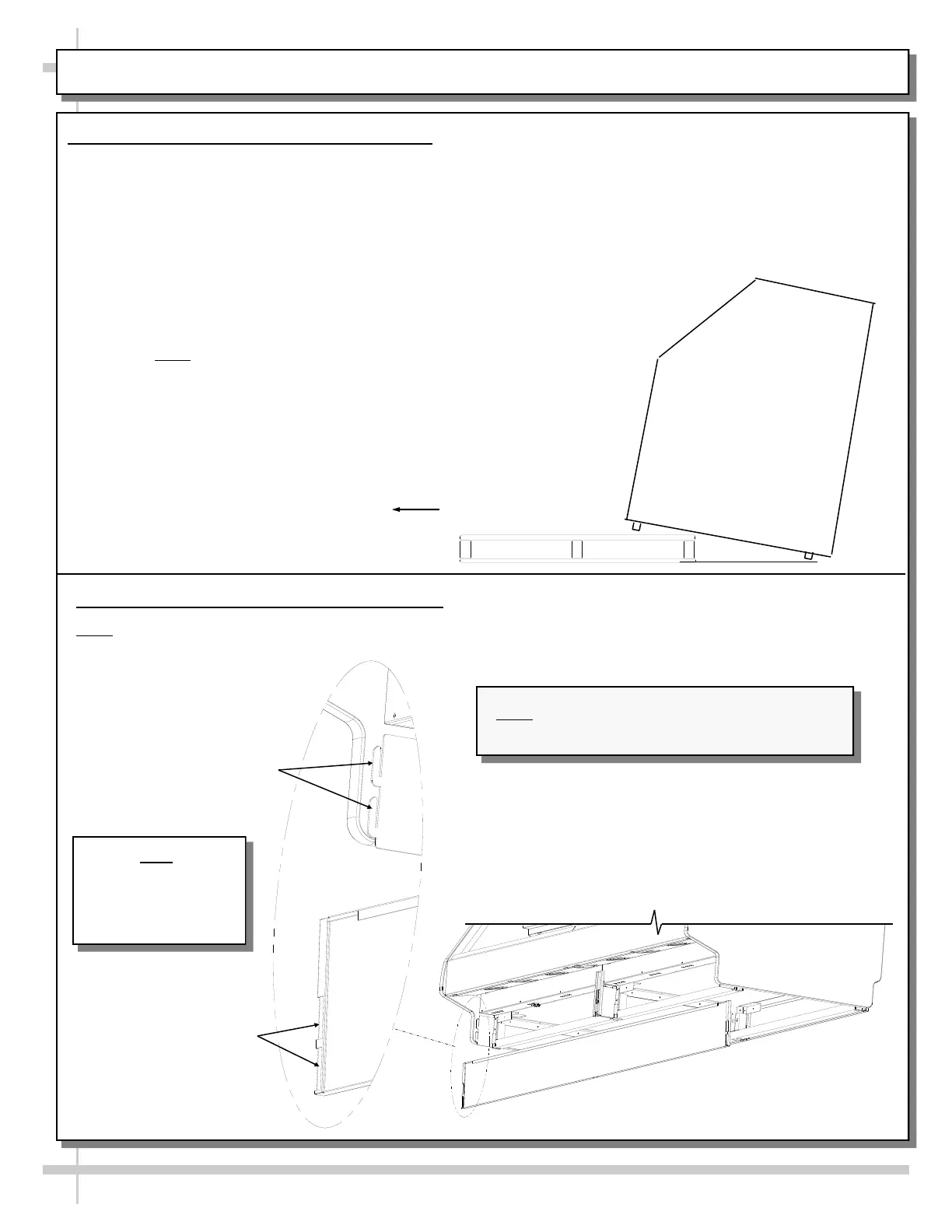

INSTALLATION: REMOVAL FROM SKID, REMOVING VERTICAL LOWER FRONT PANELS

1. Remove From Skid (Rails or Levelers)

• Remove shipping brace that may be securing case to skid.

• Support case to prevent tipping.

• Caution! Frame Support Rails (or levelers) can be damaged if case hits floor with heavy force!

• Carefully slide unit to rear of skid and tip backward off skid.

• Illustration may not reflect every feature or option of your particular case.

Note: Case can be repositioned with pallet truck

when front lower panel is removed. Blocking may

be necessary to obtain adequate height.

Slide Skid Out

2. Removing Vertical Lower Front Panels

Note: No screw removal required: Simply lift lower front panel up (off hooks) and out (away from case).

View of Front Panel (Removed & Reversed)

Hooks For Lower

Front Panel

Slots For Lower

Front Panel

Note

Lower Front Panel

Removed & Reversed

For Illustrative

Purposes Only

Note: Illustration shown may not reflect every

feature or option of your particular case.
