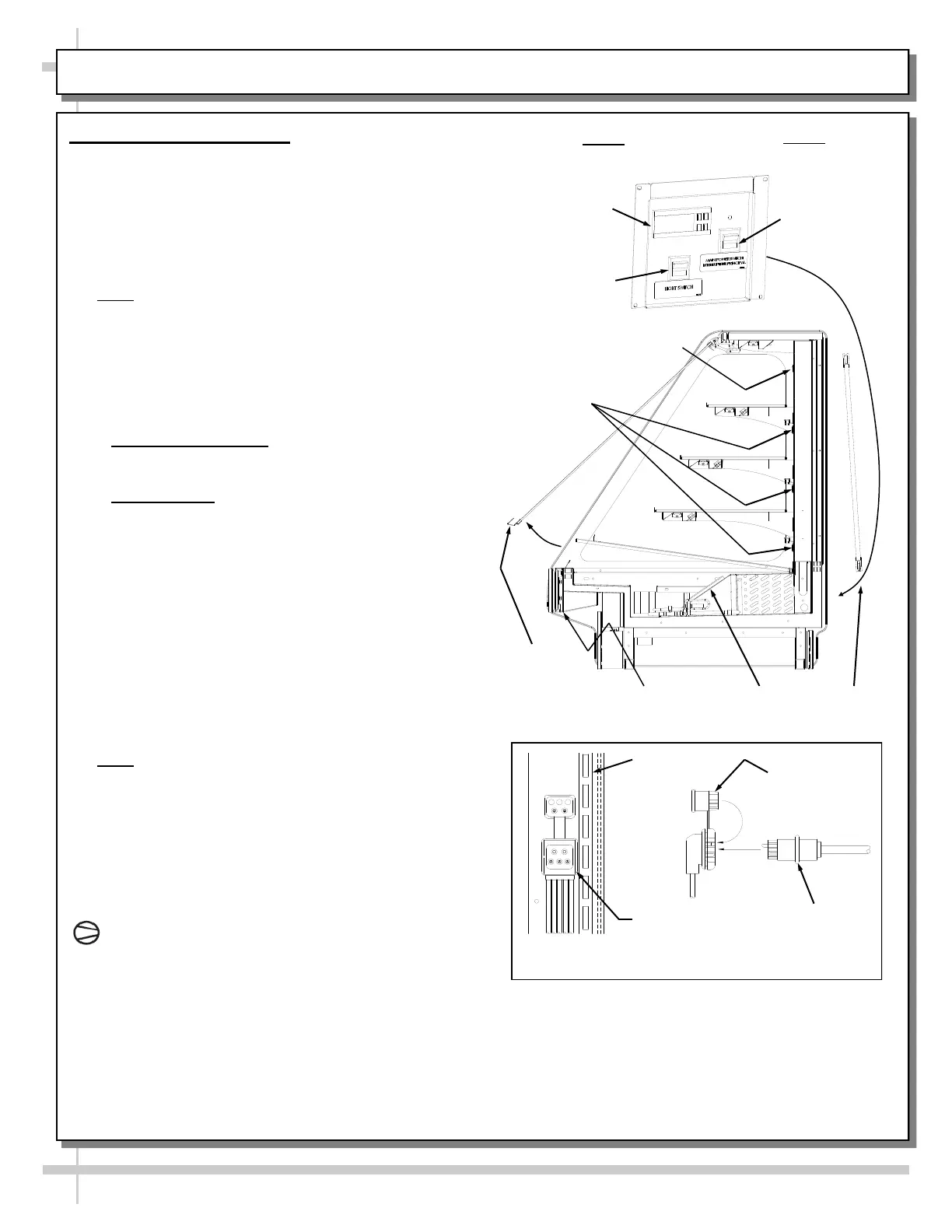

START-UP & OPERATION: CASE / LIGHTS / THERMOSTAT / SST

Cap

Plug

Receptacle

Raceway Receptacle, Plug and Cap

Raceway

1. Display Case Start-Up

A. Case

• Remote: Case will power-up when properly field

wired (or plugged in).

• Self-Contained: Turn main power on.

• After case is powered up, lift curved or flat front

glass by grasping lift handle and raising (see

illustration at right).

• Note: Illustration at right reflects flat front glass

(optional). Yours may have curved front glass.

• Lift deck to check that coil fans are running.

• Coil fans (and in self-contained units, compressor

motor) should turn on.

B. Lights

• Turn lights on.

> Self-Contained Units: Switch is likely at rear of

case (as shown at top-right) or at rear plenum

(as shown at mid-right).

> Remote Units: Switch is likely at rear plenum.

If not, there may be NO SWITCH (lights will come

on when case powers up).

• All lights should come on at the same time. If

bulbs are fluorescent, first time lighting may

require a short warm-up period. LEDs have no

warm-up period.

• Slightly dim / flickering of new bulbs is normal.

If lights do not turn on, check raceway plugs.

• Lighting is wired in series so all lights must be

plugged in or receptacles capped for case

lights to be on. See illustration at right.

• LED Lights may have single or dual rows

(depending upon model).

• Note: If lights do not come on, check that plug is

properly inserted into socket.

C. Thermostat (All Self-Contained Units and Some

Remote Units)

• Check that compressor symbol light is on.

• Compressor will likely be identified with:

Compressor symbol (common in programmable

controllers).

• After case has run for a few minutes, check

that temperature starts to drop.

• If temperature controller does not begin cooling

(in a few minutes) see temperature controller

section in this operating manual for instructions.

• Remote units (without temperature controller on

case): Verify that refrigeration requirements listed

on serial label (found on the case) are being met.

Main Power

Switch

Light Switch

Temperature

Controller

Rear Doors Coil Fans

Lift Handle

to Raise

Front Glass

Raceway

Plugs (See

Illustration

Below)

Light Switch (Remote Units

D. Saturated Suction Temperature (Remote)

• See serial label on case for suction

temperature requirements and BTU

requirements.

• See serial label on case for defrost schedule

and temperature termination parameters.

Control Panel

Self-Contained Only

Skirt Lighting

(On Certain Cases)
