INSTALLATION, CONT’D: BOLTING AND SEALING UNITS TOGETHER

3. Bolting and Sealing Units Together

Follow these steps to assure a secure, level lineup.

A. Begin lineup leveling from highest point of floor.

B. After ‘first’ case is level, apply industrial grade

urethane on non-visible areas (at case end). Use

industrial grade silicone sealant on visible areas

(at case end). See caulk/silicone illustrations at

lower-left.

C. Form Two (2) Urethane/Sealant Lines: (Sanitation

and Refrigeration). See illustration below for

outline of urethane/sealant lines.

D. Line up ‘second’ case bolt-hole to bolt-hole to ‘first’

case.

E. Using SCC-supplied bolts (and/or screws) found in

installation packet, insert bolts in bolt hole locations

(shown below). You may need to remove decking to

access lower bolt holes.

F. Caution! Front of cases MUST be flush with each

other! After leveling, cases are to be same height.

G. Using SCC-supplied nuts & bolts, lightly tighten

each of the 5 to 8 bolts in a cross-wise pattern.

Work your way around the pattern, tightening more

firmly at each pass. Do not firmly tighten one bolt

and then start on the next!

H. After the cases are bolted together, level the

‘second’ case. Repeat this process for each case

to be adjoined.

I. After all lined-up cases are level, seal all seams

with industrial grade silicone sealant.

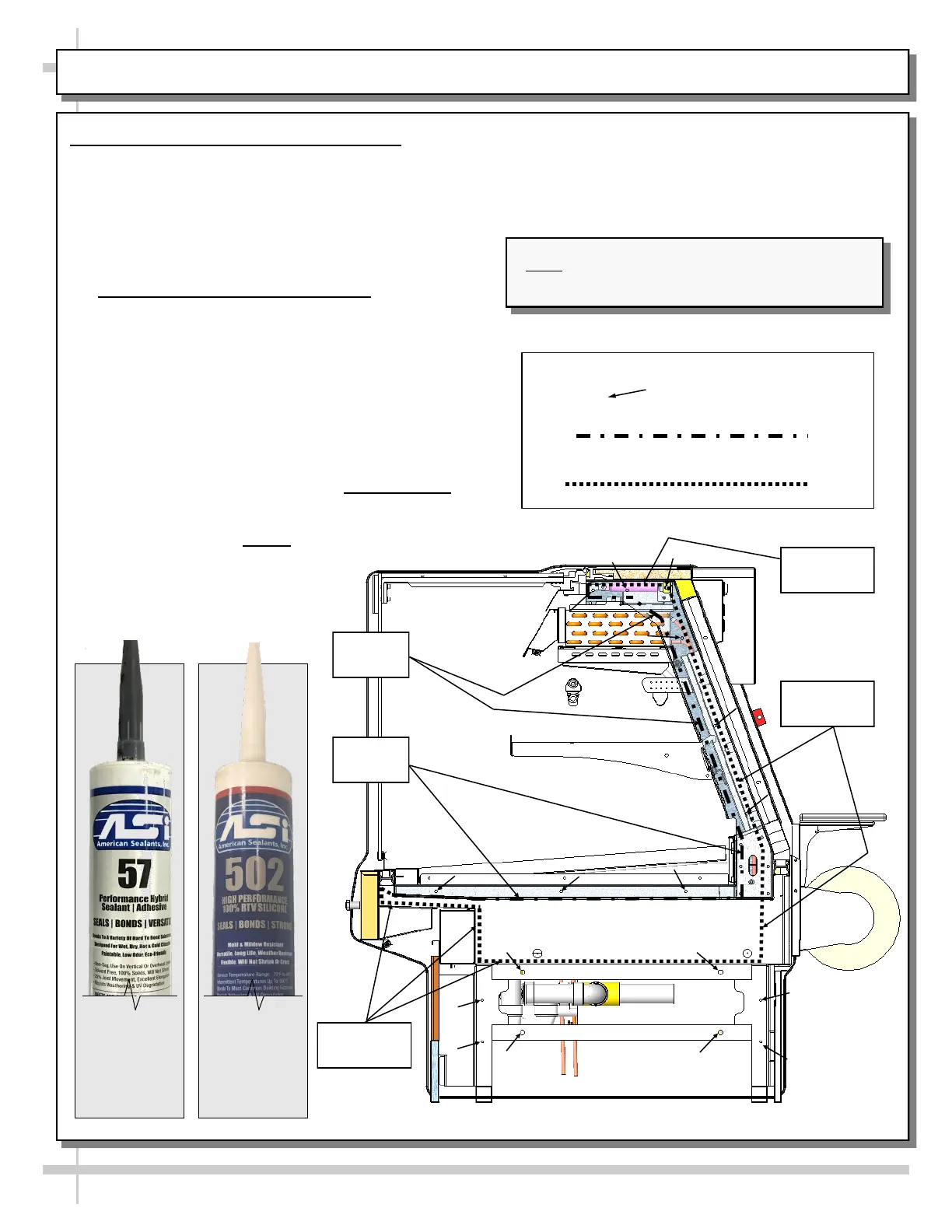

Approximate hole locations pointed at with

arrows ( ) for bolting units together.

Sanitation Bead

Refrigeration Bead

--- Sample Flat Glass Unit ---

Note: Illustration shown may not reflect every

feature or option of your particular case.

Sanitation

Bead

Sanitation

Bead

Refrigeration

Bead

Refrigeration

Bead

Urethane

to be

used on

non-visible

areas.

Silicone

to be

used on

visible

areas.

Refrigeration

Bead
