MAINTENANCE, CONT’D: DRAIN / TXV / REFRIGERATION LINES / SOLENOID / EVAPORATOR FANS

2. Drain and Expansion Valve Access

• The drain and expansion valve are both accessible from the front of the case.

• Unplug the fans (one plug per side) and remove the fastener from the access panel in the front right

(or left) corner of the unit (as shown in illustration at right).

• The drain, thermostatic expansion valve (TXV) and shut-off valve (optional, depending upon model) are

directly below the access panel.

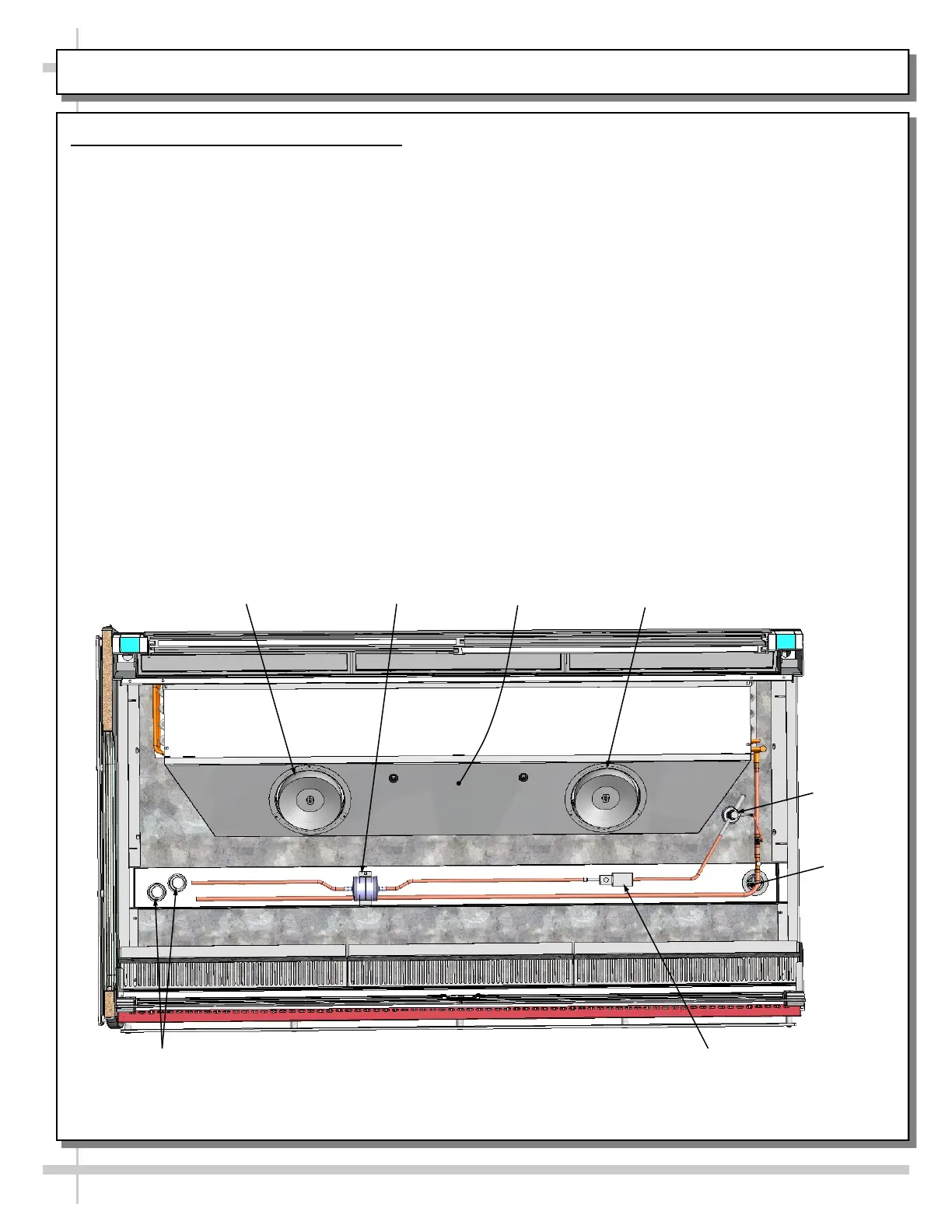

• See illustration below for partially disassembled model depicting solenoid valve, drain, refrigeration lines,

TXV, etc.

TXV

View of Case With Decking, Rear Plenum

and End Panel Shown Removed for

Illustrative Purposes Only

Evaporator

Fan

Evap. Fan

Shroud

Filter Dryer

Solenoid

Evaporator

Fan

Evaporator

Fan

Drain
