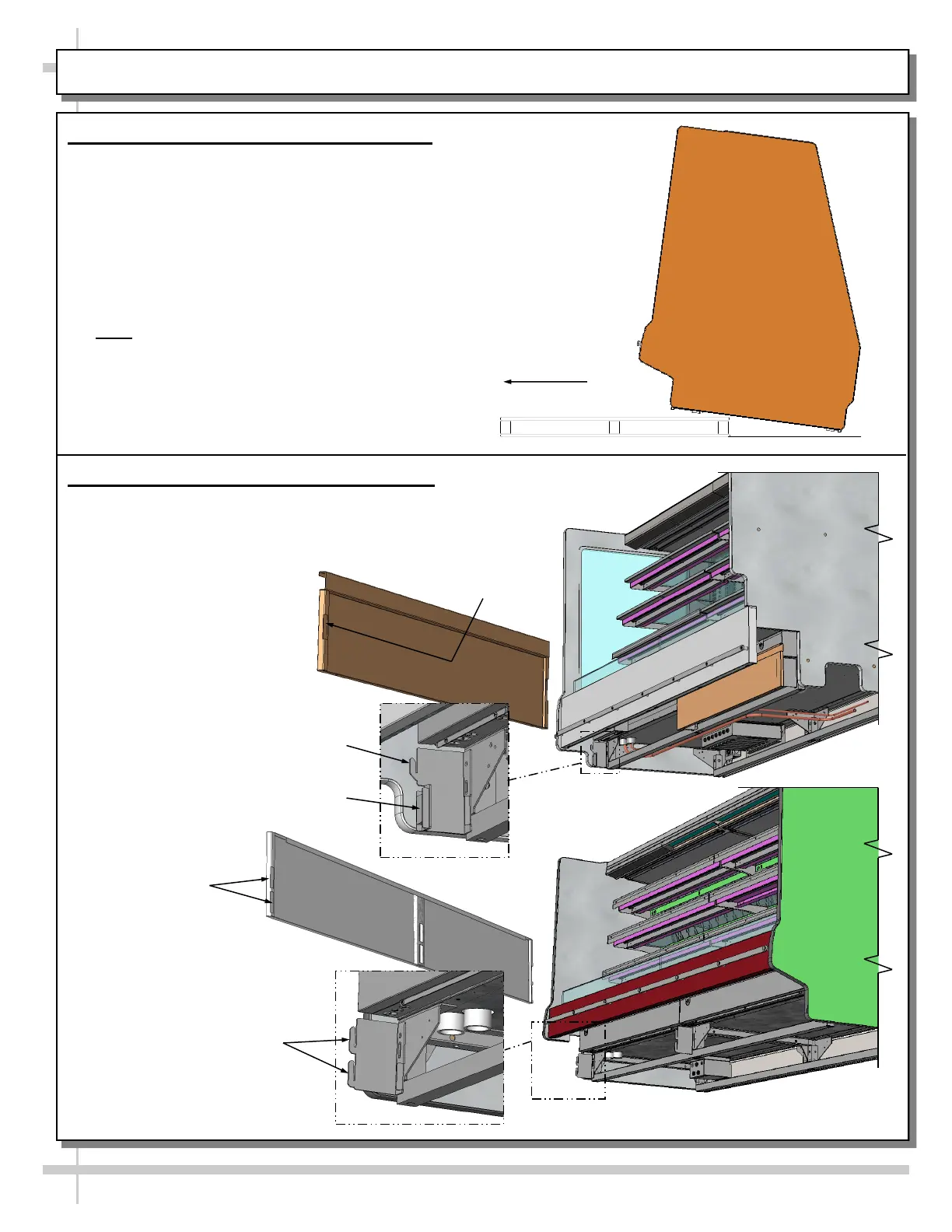

INSTALLATION: REMOVAL FROM SKID, REMOVING VERTICAL LOWER FRONT PANELS

1. Remove From Skid (Rails or Levelers)

• Remove shipping brace that may be securing case

to skid.

• Support case to prevent tipping.

• Caution! Frame support rails (or levelers) can be

damaged if case hits floor with heavy force!

• Carefully slide unit to rear of skid and tip backward

off skid.

• Illustration may not reflect every feature or option

of your particular case.

• Note: Case can be repositioned with pallet truck

when front lower panel is removed. Blocking may

be necessary to obtain adequate height.

Slide Skid Out

2. Removing Vertical Lower Front Panels

• No screw removal required: Simply lift lower front panel up

(off hooks) and out (away from case).

View of Front Panel (Removed & Reversed)

Slots For Lower

Front Panel

Hooks For Lower

Front Panel (Typ.)

Hook For Lower

Front Panel

Magnet For Lower

Front Panel (Typ.)

Slot For Lower

Front Panel

• Certain models have hook/

magnet/slot attachment

method (shown at

immediate right).

• Other models have just

hook/slot attachment

method (shown

lower-right).
