14
MAINTENANCE FUNDAMENTALS, CONT’D: REAR DOORS / PERFORATED ACRYLIC PLENUM
5. Removing Rear Doors
• Note: Doors are not interchangeable.
• There is an outer and inner door.
• Outer door is the right hand door (at case rear).
If removing doors, remove outer door must be
removed first.
• Inner door is left-hand door (at case rear).
• Both inner and outer doors can be removed by
sliding to center of case, lifting up and out.
6. Perforated Acrylic Plenum
• Each door has a bracket that is inserted in a
perforated acrylic plenum slot.
• When either rear sliding door is removed, its
bracket is also removed (because it is attached).
• Perforated acrylic plenum may then be removed
by sliding to center of case, lifting up and out.

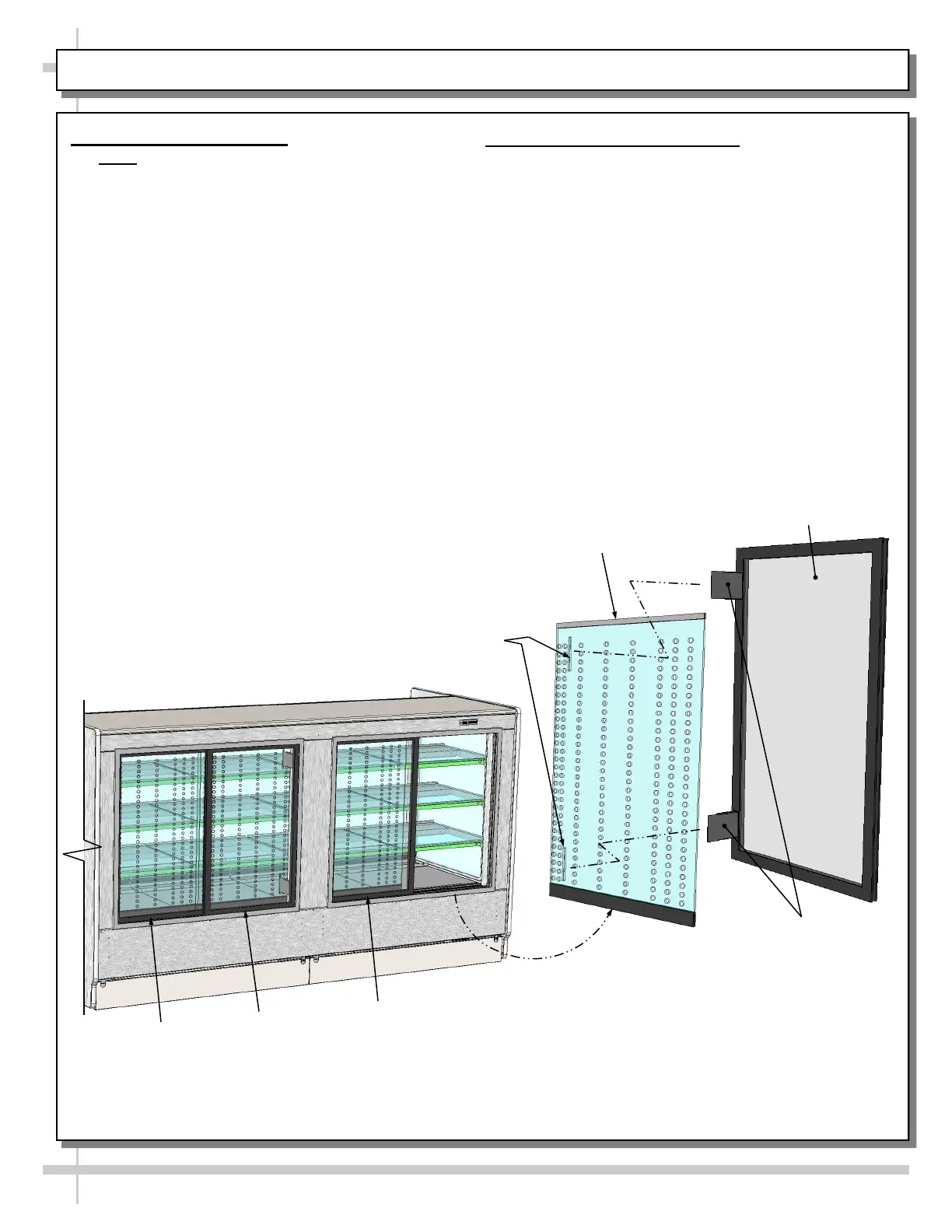

• See illustrations below.
Enlarged View Of
Perforated Acrylic Inner
Plenum (Shown Reversed)
Enlarged View Of
Outer Door
(Shown Reversed
Brackets (To Control
Perforated Acrylic
Inner Plenum)
Outer Door
Inner Door
Outer Door
Slots (Allows Perforated Acrylic
Plenum To Move In Tandem
With Rear Sliding Door)
--- Model GHSSV856RLB.6988D ---
