INSTALLATION, CONT’D: ELECTRICAL LAYOUT / LED DRIVERS / OPTIONAL BALLASTS

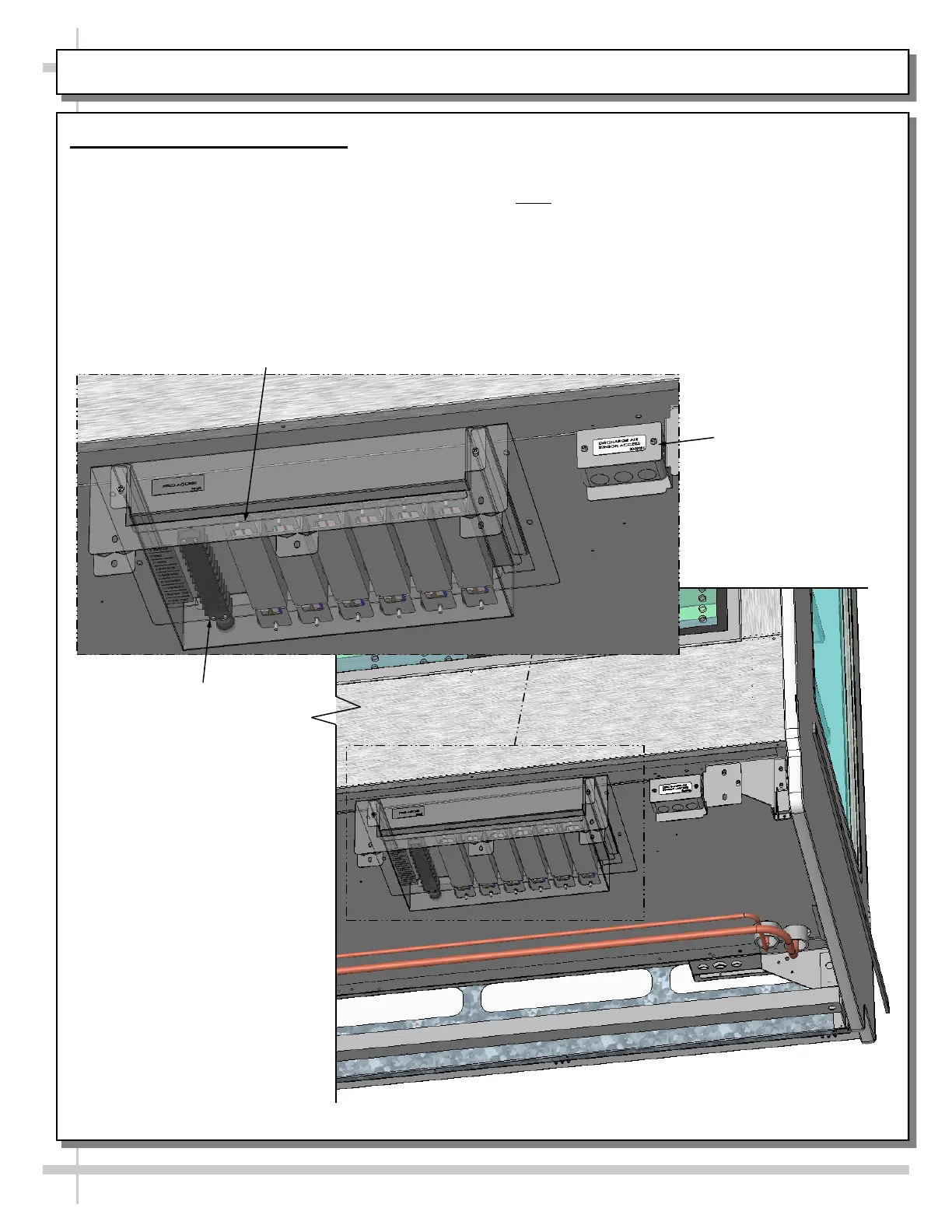

6. Electrical Layout - Option #2

LED Drivers (and/or Optional Ballasts)

• Remove REAR panel (lift up and off - no screw

removal is required).

• Stub-up connections are in LED driver box.

• Remove LED driver drawer screws and slide out

box to access.

• Knockouts are at rear of field access box

(for taking electrical connections).

• Voltage rating is on serial label at case rear.

• Note: Wiring process must be performed by

certified electrician only.

LED Drivers (Number of Drivers May

Vary Depending Upon Model)

Terminal

Strip

Discharge Air

Sensor Access

--- Model GHSSV856RLB.6988D ---
