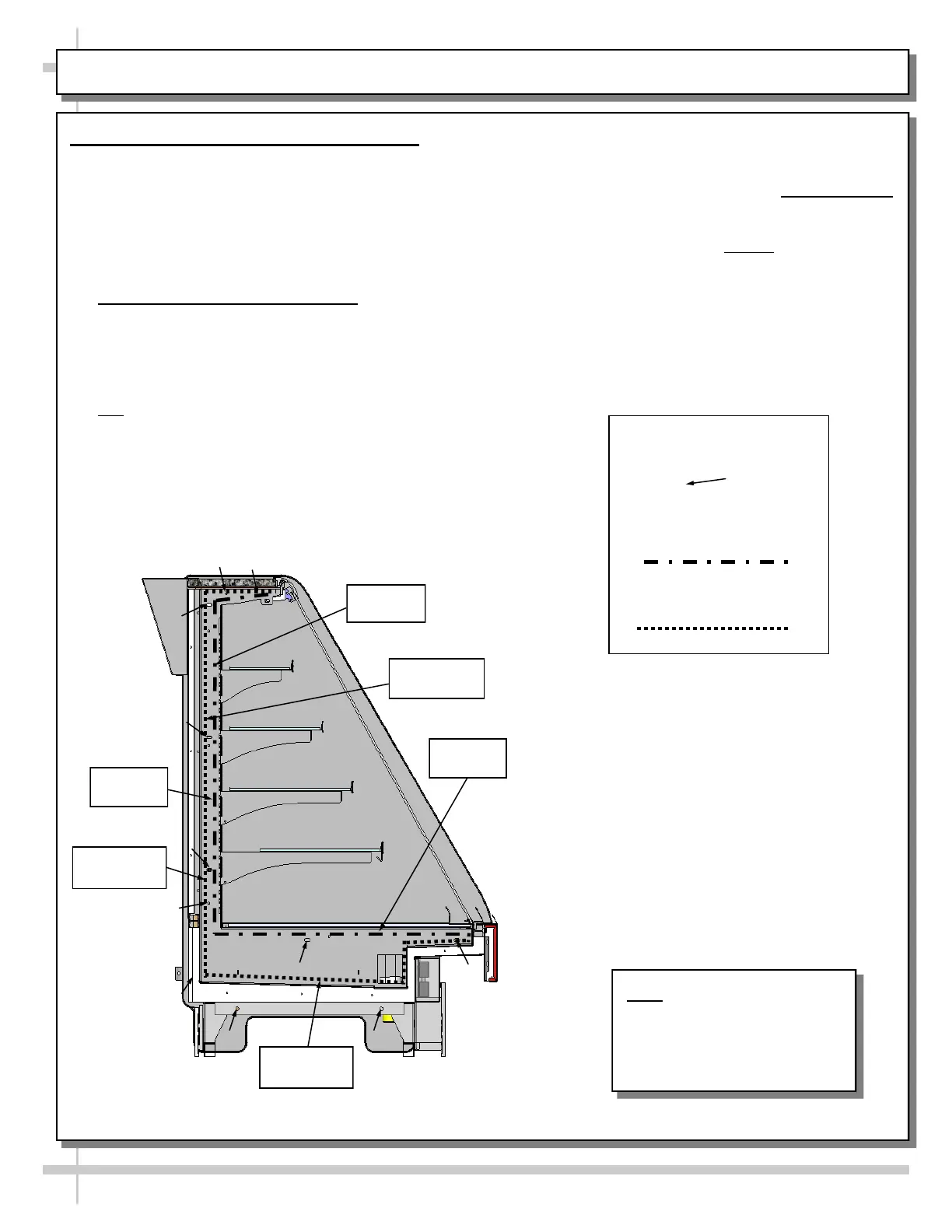

INSTALLATION, CONT’D: BOLTING AND CAULKING UNITS TOGETHER

3. Bolting and Caulking Units Together

Follow these steps to assure a secure, level lineup.

A. Begin all lineups leveling from highest point of

floor.

B. After the ’first’ case is level, apply industrial grade

butyl caulk on non-visible areas (at case end).

Use industrial grade silicone sealant on visible

areas (at case end).

C. Form Two (2) Caulk/Sealant Lines: (Sanitation

and Refrigeration). See illustration at mid-right for

outline of caulk/sealant lines.

D. Line up ‘second’ case bolt-hole to bolt-hole to

‘first’ case.

E. Using SCC-supplied bolts (found in hole locations

OR in installation packet), insert bolts in bolt hole

locations (shown at top-right). You may need to

remove decking to access lower bolt holes.

Note: Illustration shown may

not exactly reflect every

feature or option of your

particular case. However,

general bead layout applies.

Sanitation

Bead

Refrigeration

Bead

Sanitation

Bead

Refrigeration

Bead

F. Caution! Front of cases MUST be flush with

each other! After leveling, all cases to be same

height.

G. Using SCC-supplied nuts & bolts, lightly tighten

each of the 5 to 8 bolts in a cross-wise pattern.

Work your way around the pattern, tightening

more firmly at each pass. Do not firmly tighten

one bolt and then start on the next!

H. After the cases are bolted together, level the

‘second’ case. Repeat this process for each

case to be adjoined.

Approximate hole

locations pointed at with

arrows ( ) for bolting

units together.

Sanitation Bead

Refrigeration Bead

Sanitation

Bead

Refrigeration

Bead

--- Sample Flat Glass Unit ---
