13
MAINTENANCE FUNDAMENTALS, CONT’D: DRAIN / TXV / REFRIG. LINES / SHUT-OFF VALVE, ETC.
4. Drain and Expansion Valve Access
• The drain and expansion valve are both accessible from the front of the case.
• Unplug the fans (one plug per side) and remove the fastener from the access panel in the front right (or
left) corner of the unit (as shown in illustration at right).
• The drain, thermostatic expansion valve (TXV) and shut-off valve (optional, depending upon model) are
directly below the access panel.

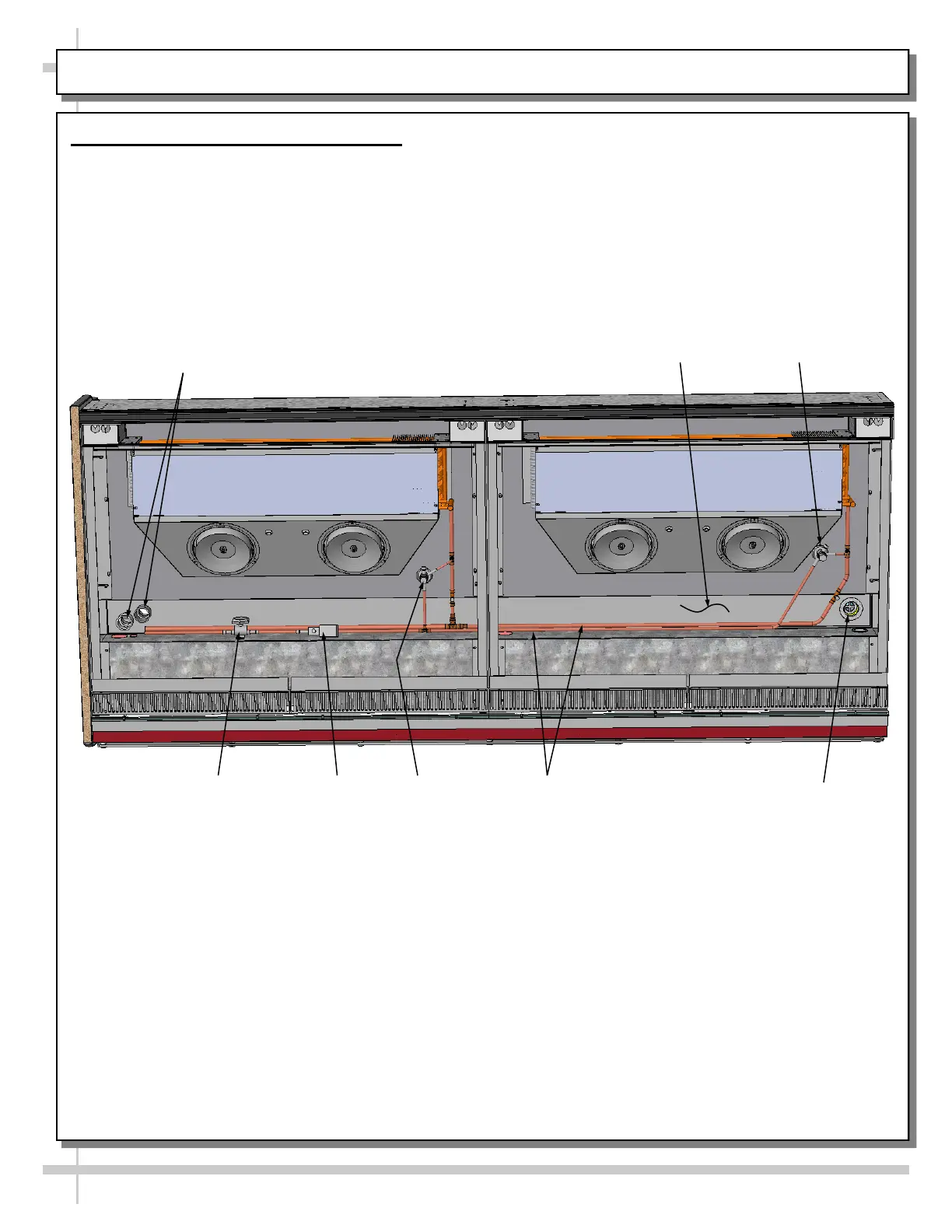

• See illustration below for partially disassembled model depicting shut-off valve, drain, refrigeration lines,
TXV, etc.
TXV
Shut-Off Valve TXV
Drain
Refrigeration
Lines
Solenoid
Refrigeration Line
Route
Trough
