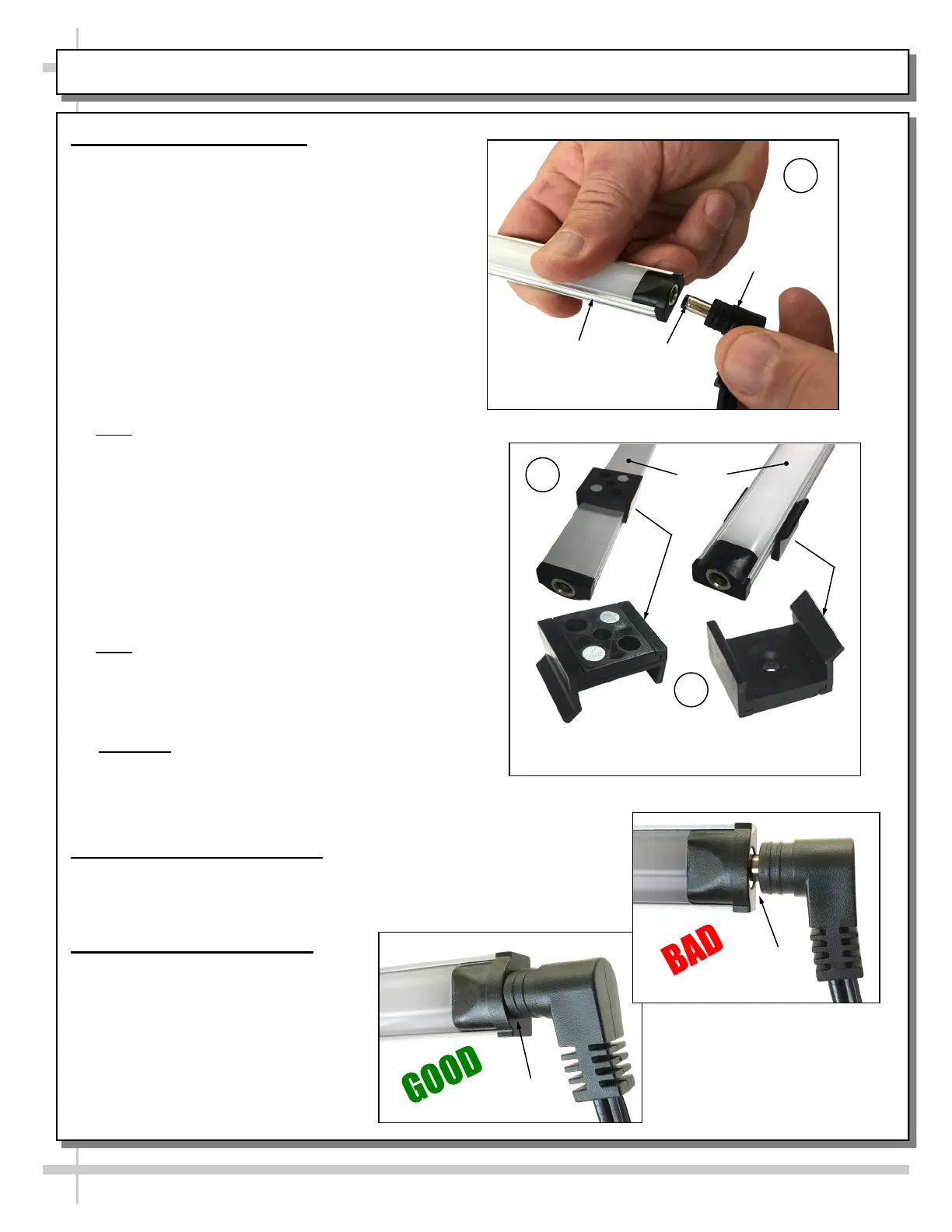

MAINTENANCE FUNDAMENTALS: LED LIGHTS / BRACKETS / SHELVES

1. LED Style Light Fixtures

Removal of Faulty LED Lights:

• LED lights rarely require change-out.

• Contact Structural Concepts’ Technical Service

Department for replacement LED lights.

• Turn off LED light switch.

• To remove faulty LED light, follow these steps:

A. Disconnect plug from LED light.

B. Using both hands, grasp LED light

assembly (with its magnetic mounting

clips). Pull downward and off its shelf

(or header).

C. Remove magnetic mounting clips from LED

light by pressing against flange part of clip

with thumb.

>> Note: Mounting clips MAY be riveted to shelf or

header. In such instances, simply remove LED light

from mounting clips by pressing against flange part

of clips with thumb.

Replacement of LED lights:

• Attach magnetic mounting clips onto LED light.

• Adjust magnetic mounting clips so they are

equally spaced on LED light.

• Reattach LED light assembly to its shelf/

header.

• Position properly in shelf/header.

>> Note: If mounting clips are riveted to shelf

(or header), attach by placing LED in base of clip

and then snapping into clip at FLANGE SIDE.

• Press plug’s barrel-shaped insert all the way

into LED light.

• Important: If plug is not inserted ALL THE

WAY IN the LED light’s orifice, the light may

not energize. See “BAD” vs. “GOOD”

insertion illustrations below-right.

• Turn LED light switch back on.

2. Bracket Retainer Removal

• To remove brackets, it may be necessary to

remove nylon shipping bracket retainers.

• Pliers will be required to accomplish this task.

3. Shelf Assembly Removal

• If glass, remove shelf.

• For lighted shelving, unplug the

light cord.

• Remove rear shelf support.

• Remove shelf light cover from

brackets.

• Lift brackets up and out.

Plug

Barrel

Shaped

Insert

LED

Light

Magnetic Mounting

Clip View #2

LED

Lights

Magnetic Mounting

Clip View #1

No Gap

Gap
