9
INSTALLATION, CONT’D: UNDERSIDE FIELD ACCESS COMPONENTS (MODEL GHSSEH456RLB)
8. Underside Field Access Box Components and
Underside Refrigeration Line Route
• On certain models, field access components (a
variety of which is shown below) are at underside.
• Model GHSSEH456RLB is illustrated below; your
underside component layout may vary.
• Caution! Only certified electricians are to perform
electrical connectivity duties.
• To access large field access box, two screws (at
case front) must be removed and box slid out.

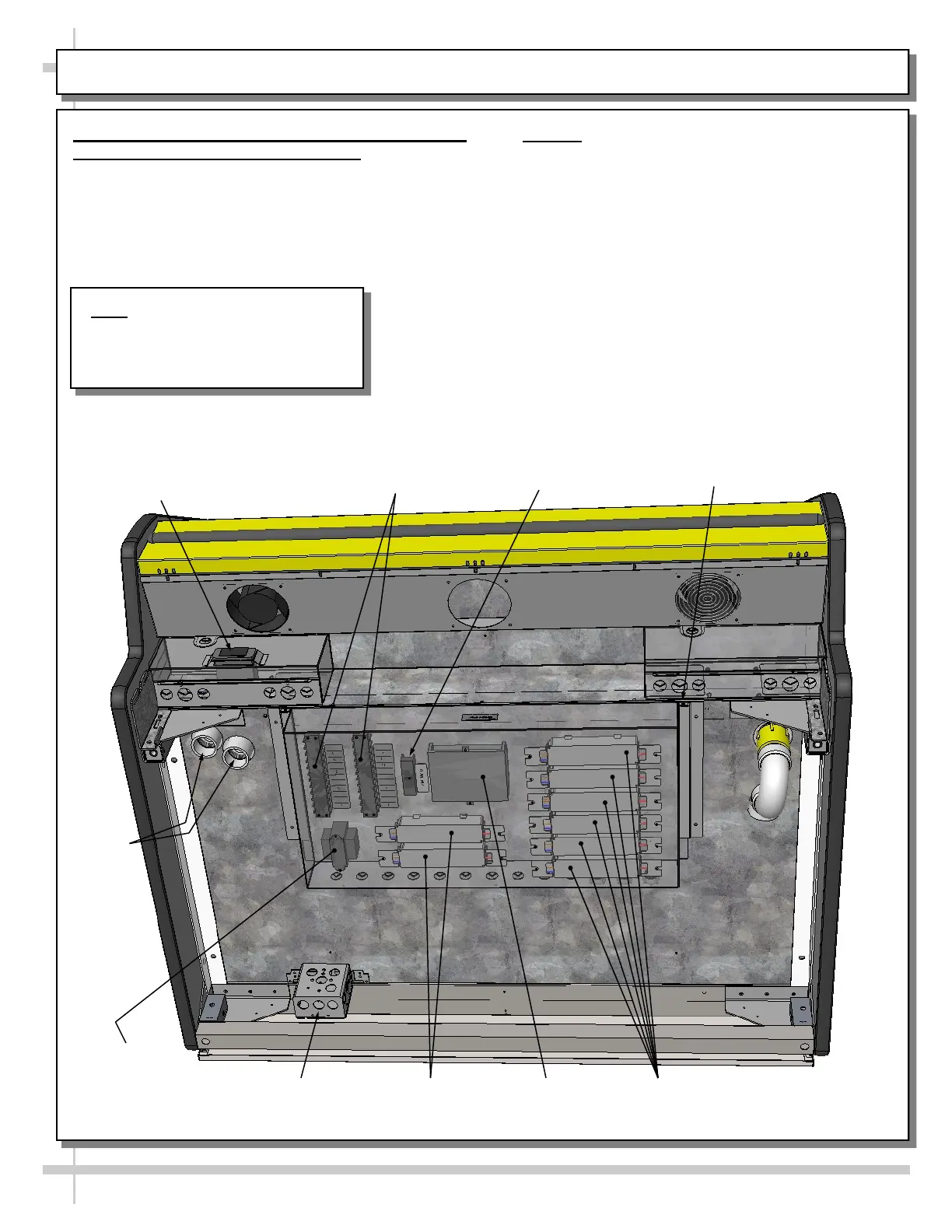

Note: Illustration Reflects Remote
Model GHSSEH456RLB With
Underside Electrical Components.
Your Case May Vary.
4” x 4” Field
Access Box
Dixell®
Display
LED
Drivers
Temperature
Controller
Transformer
Refrig.
Lines
LED
Drivers
Terminal Blocks
Fuse Block
Remove Screws (Typ.)
to Slide Out Large Field
Access Box From
Underside Of Case
