MAINTENANCE, CONT’: OPTIONAL SLIDING REAR DOORS / PERF. PLENUM / COND. COIL FILTER

9. Rear Sliding Doors/Perforated Acrylic Plenum

(Optional) is Illustrated Below

• Rear sliding doors have metal brackets

connected to perforated acrylic plenums.

• These perforated acrylic plenums are designed to

maintain proper refrigerated temperature.

• When sliding rear doors open, the perforated

acrylic plenums also slide open (allowing access

to contents inside case).

• Be sure to completely close the rear sliding doors

after accessing case contents.

10. Rear Sliding Door Removal

• Rear sliding doors can be removed WITHOUT

removing the perforated acrylic plenum.

• Simply slide rear sliding doors to case center, lift

upward and out. Replace in reverse order the

doors were removed.

11. Perforated Acrylic Plenum Removal

• Access perforated acrylic plenums from front of

case.

• Simply lift the pieces up and out of case.

• Replace in reverse order they were removed.

12. Magnetic Condenser Coil Filter

• This filter helps prevent dust particles from

entering condenser coil.

• See GENERAL CLEANING (TO BE

PERFORMED BY STORE PERSONNEL)

section in operating manual for cleaning

specifics.

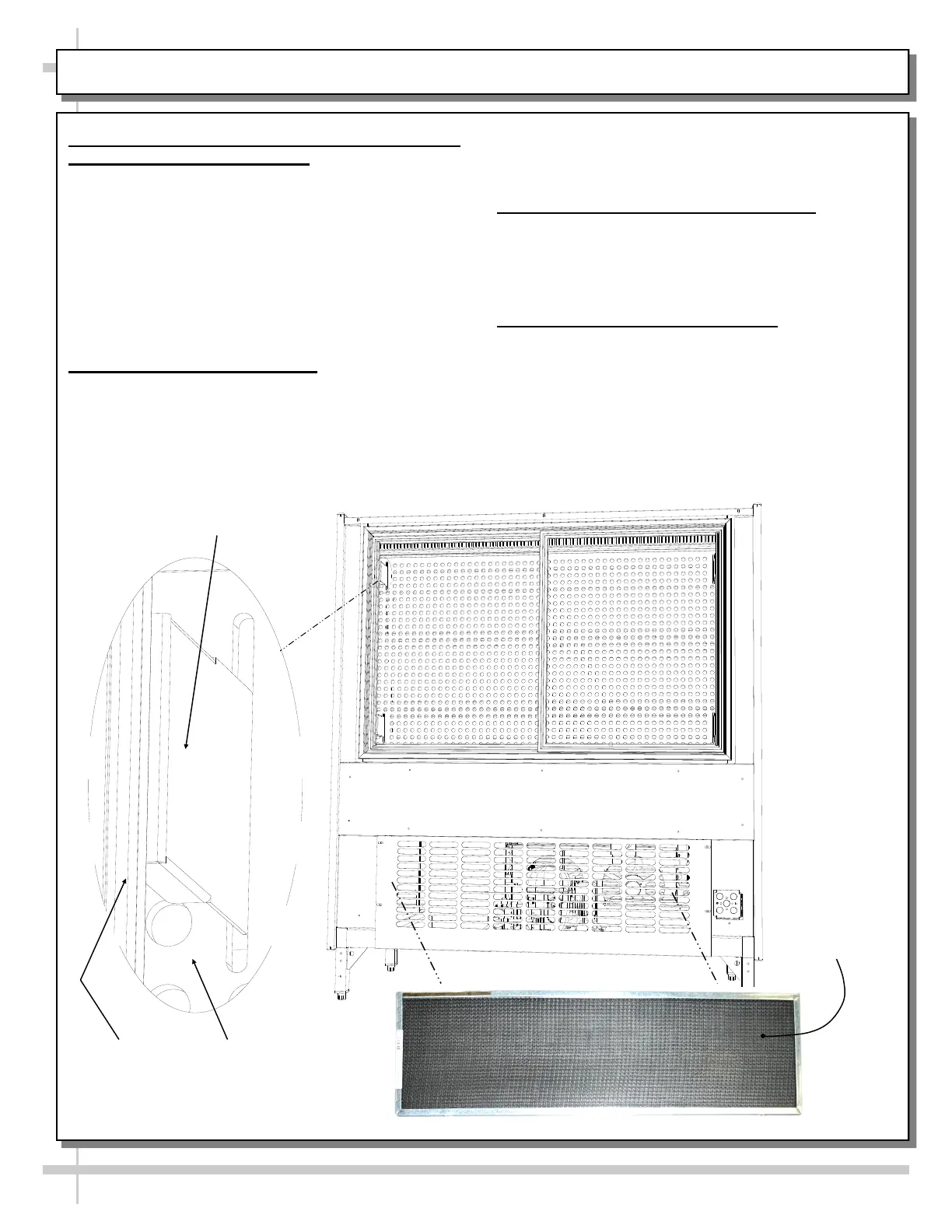

Edge of

Outside

Door

Metal Bracket (Connecting

Perforated Acrylic Plenum

To Rear Sliding Doors)

Perforated

Acrylic

Plenum

Magnetic

Condenser Coil

Filter
