INSTALLATION, CONT’D: ELEC. CONNECTIONS / BALLAST BOX / LED DRIVER (REMOTE UNITS)

• Knockouts are on the underside of ballast box /

LED driver box making electrical connections.

• Voltage rating is on serial label at case rear.

• Remote case Illustration shown below reflects flat

front glass. Your case may differ (but electrical

layout will be accurate).

• Note: Wiring process must be performed by

certified electrician only.

6. Electrical Connections (Remote Units)

Ballast / LED Driver

Remove front panel. See INSTALLATION:

REMOVAL FROM SKID, REMOVING VERTICAL

LOWER FRONT PANELS section in this manual for

instructions.

• Stub-up connections are in ballast box.

• Remove ballast box / LED driver box cover.

Terminal

Strip

Ballast / LED

Driver

Wire

Route

PBV

Ballast Box /

LED Driver Box

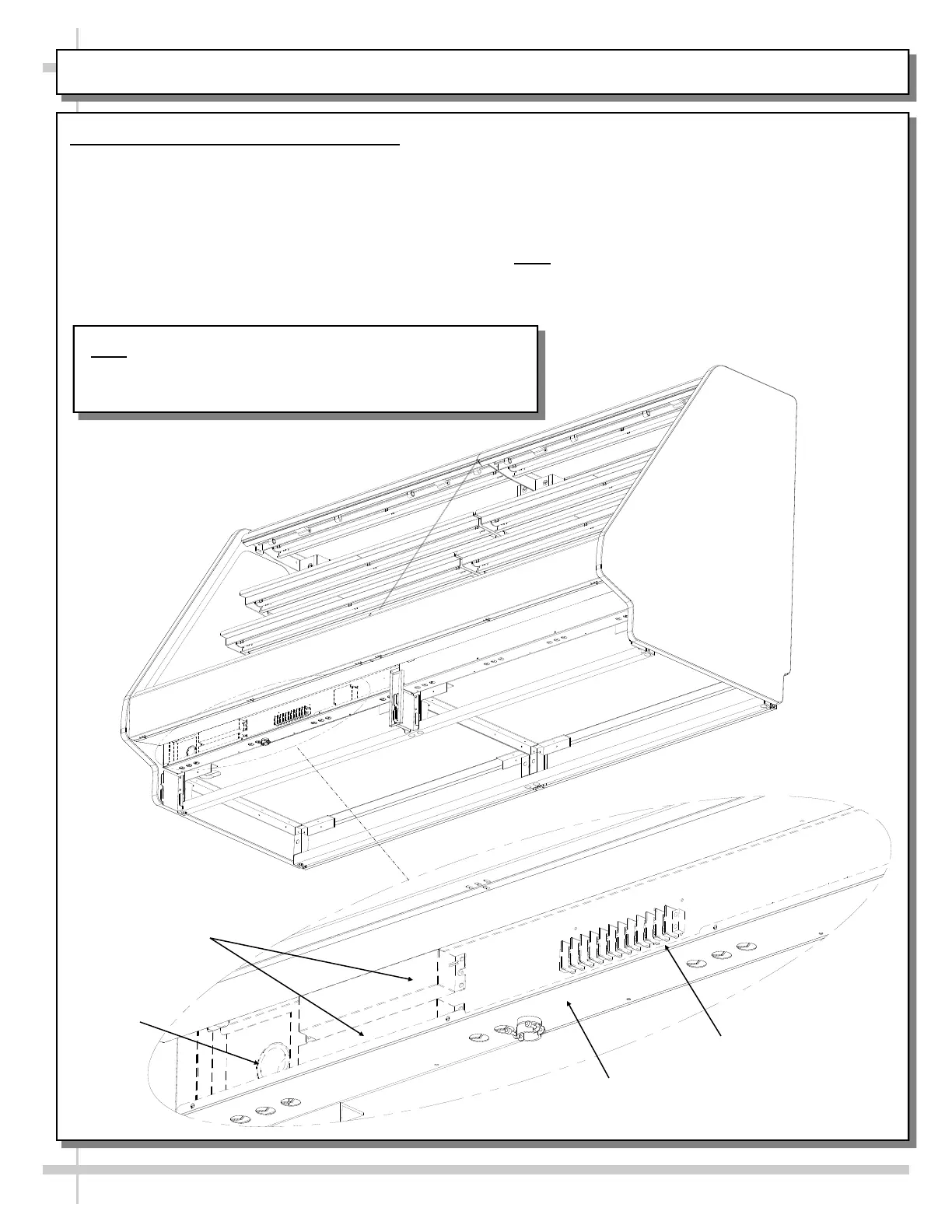

Note: Illustration reflects remote Model GHBSS5R.4986A

with front panel removed for illustrative purposes only.

See next page for self-contained model GHDSS850R.
