MAINTENANCE, CONT’D: LED STYLE LIGHT FIXTURES / LED CLIPS / CONNECTIONS / THERMOMETERS

2. LED Style Light Fixtures

Removal of Faulty LED Lights:

• Contact Structural Concepts’ Technical Service

Department for replacement LED lights.

• Turn off LED light switch.

• To remove faulty LED light, follow these steps:

A. Disconnect plug from LED light.

B. Using both hands, grasp LED light assembly (with its

magnetic mounting clips). Pull downward and off its

shelf (or header).

C. Remove magnetic mounting clips from LED light by

pressing against flange part of clip with thumb.

>> Note: Mounting clips MAY be riveted to shelf or header.

In such instances, simply remove LED light from mounting

clips by pressing against flange part of clips with thumb.

Replacement of LED lights:

• Attach magnetic mounting clips onto LED light.

• Adjust magnetic mounting clips so they are equally

spaced on LED light.

• Reattach LED light assembly to its shelf/header.

• Position properly in shelf/header.

>> Note: If mounting clips are riveted to shelf (or header),

attach by placing LED in base of clip and then snapping into

clip at FLANGE SIDE.

• Press plug’s barrel-shaped insert deep into LED light.

• Important: If plug is not inserted ALL THE WAY IN the

LED light’s orifice, the light may not energize. See “BAD”

vs. “GOOD” insertion illustrations at right.

• Turn LED light switch back on.

3. Thermometers

• Thermometers are is located at rear plenum.

• Thermometers reflect internal air temperature only (not

actual food temperature).

• Use probe thermometers to determine product temp.

• See illustration below for common location of

thermometer (your location may slightly vary).

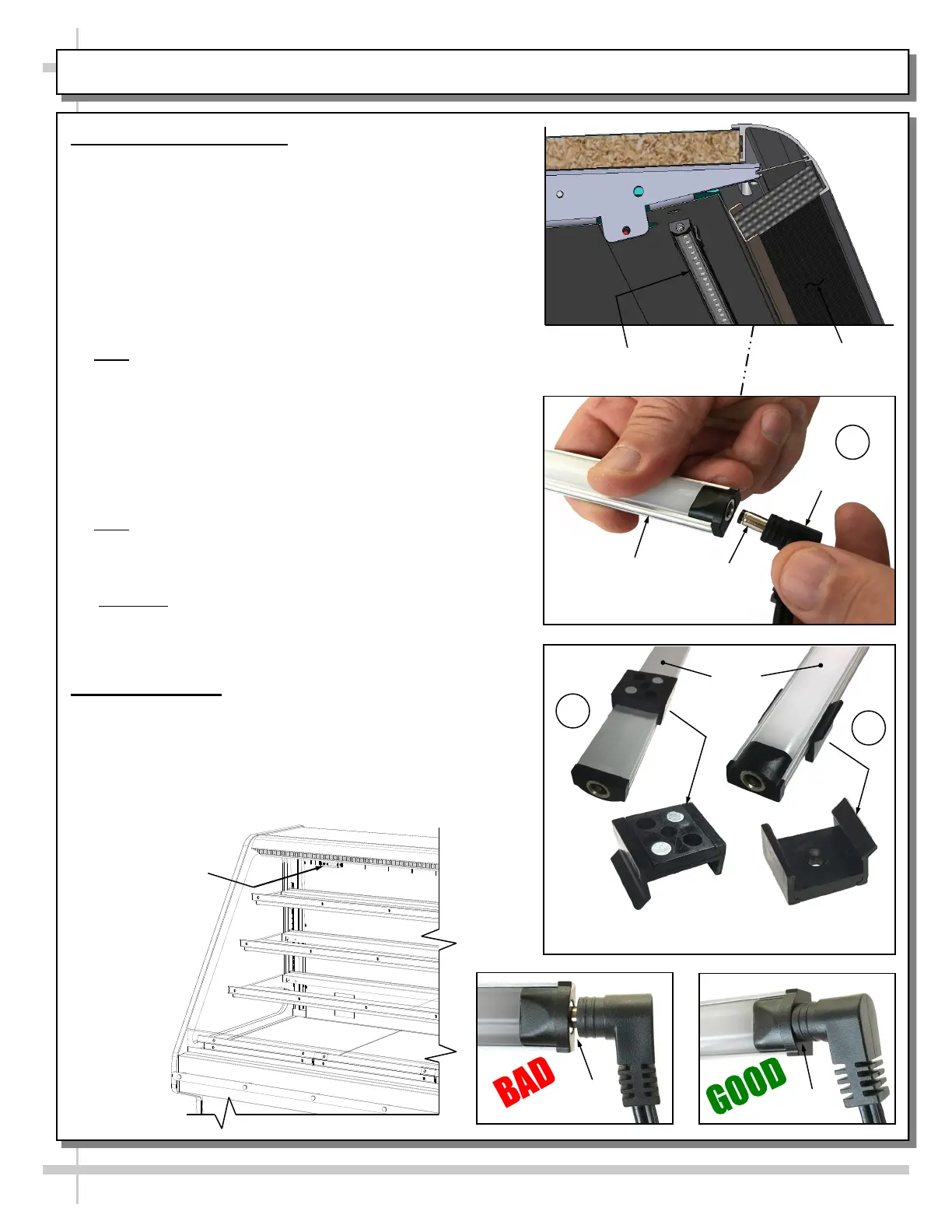

Honeycomb

LED Light

Magnetic Mounting

Clip View #2

LED

Lights

Plug

Barrel

Shaped

Insert

LED

Light

Magnetic Mounting

Clip View #1

No Gap

Gap

Common Location

of Thermometer

(May Vary From

Case to Case)
