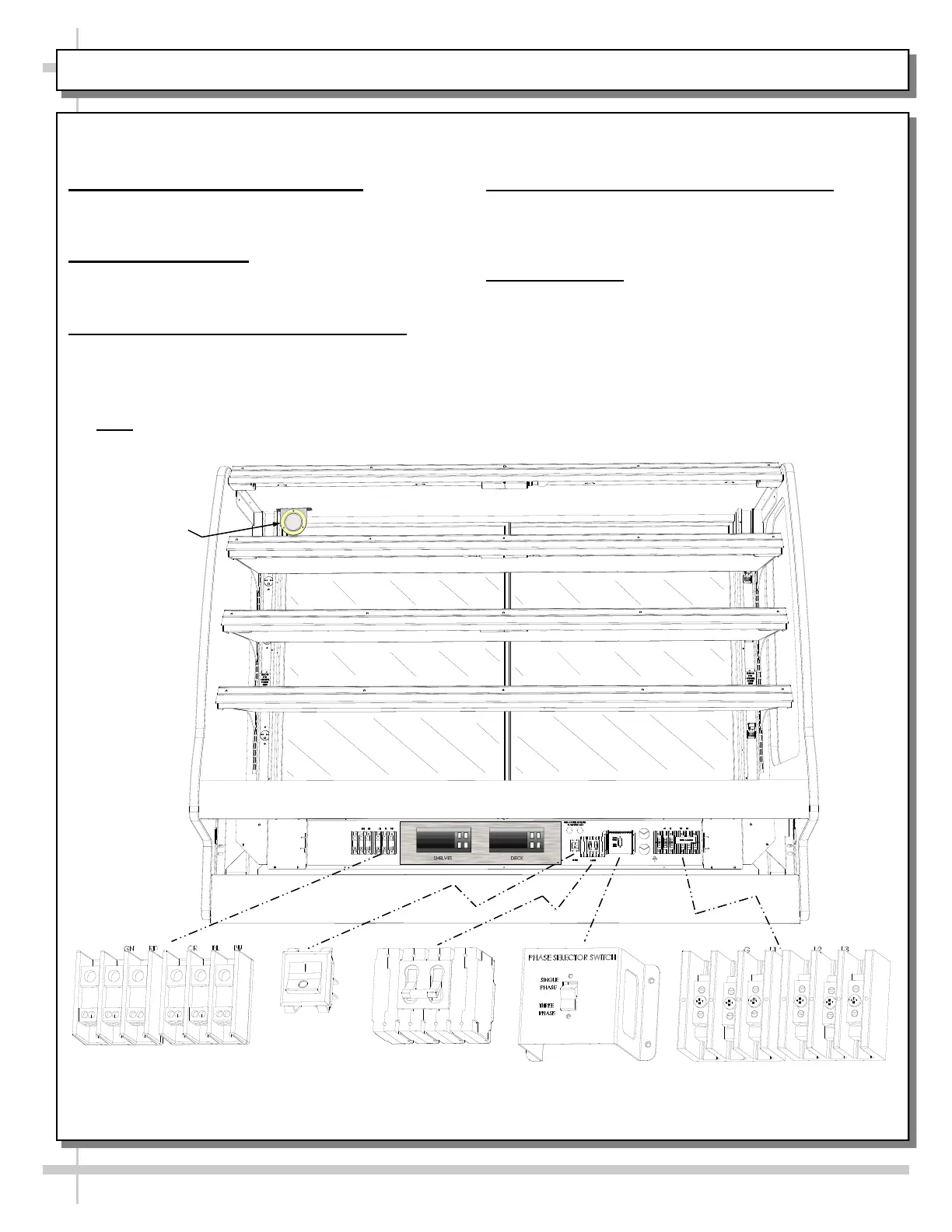

INSTALLATION, CONT’D: FIELD ACCESS WIRING CONNECTIONS/ SWITCHES / THERMOMETERS

Gain access to field wiring / electrical raceway by

removing front panel (removal of screws is required).

4. Field Access Wiring Connections

Field wiring connection location is at customer-right,

at underside of raceway (as shown below).

5. Lamp Power Switch

• Lamp switch is at customer-right.

• One (1) lamp switch controls all bulbs in unit.

6. Single vs. Three-Phase Selector Switch

• Both single phase field wiring leads AND three

phase field wiring leads are provided.

• Phase selector switch (see location below) must

match field wiring.

• Note: Depending upon options chosen, phase

selector switch lockout bracket may be standard.

Lamp

Switch

Terminal Block

Phase Selector Switch

(1-Phase vs. 3-Phase)

Terminal Block

50-Amp

4-Pole Lever

Main Power Switch

If not, optional phase selector switch lockout

bracket (SCC P/N 20-35413) is available.

7. 50-Amp 4-Pole Lever Main Power Switch

• See illustration below.

• Power to all lights AND heated shelves is shut off

when this switch is turned off.

8. Thermometers

• Thermometers in equipment reflect internal air

temperature only (not actual food temperature).

• Use probe thermometers to determine actual

product temperatures.

• See Vapor Thermometer section in manual for

temperature dial design and range.

Vapor

Thermometer
