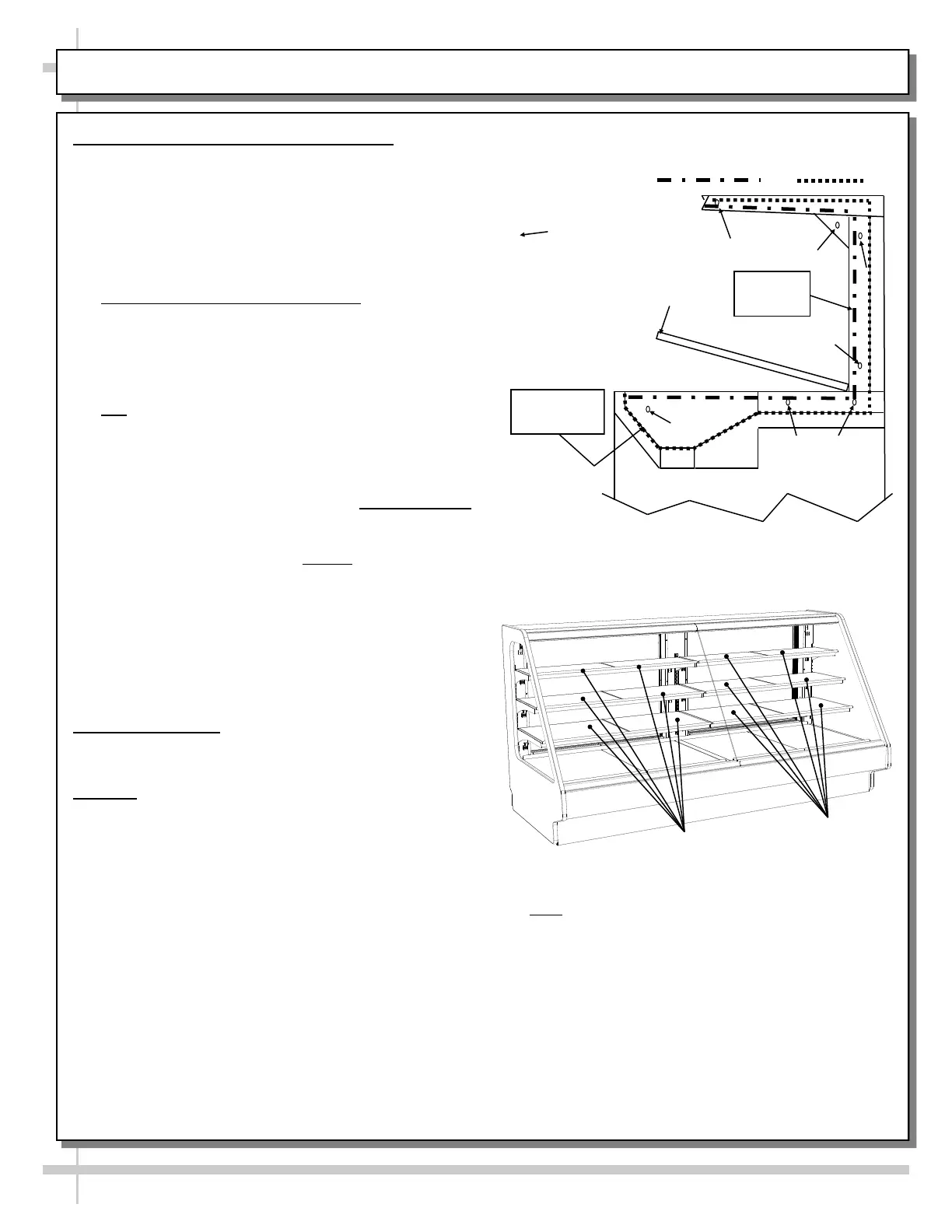

INSTALLATION, CONT’D: ADJUSTING FRONT PANELS / ADJOINING UNITS / GLASS SHELVING

4. Bolting and Caulking Units Together

Follow these steps to assure a secure, level lineup.

A. Begin all lineups leveling from highest point of

floor.

B. After the ’first’ case is level, apply industrial grade

butyl caulk on non-visible areas (at case end).

Use industrial grade silicone sealant on visible

areas (at case end).

C. Form Two (2) Caulk/Sealant Lines: (Sanitation

and Refrigeration). See illustration at mid-right for

outline of caulk/sealant lines.

D. Line up ‘second’ case bolt-hole to bolt-hole to

‘first’ case.

E. Using SCC-supplied bolts (found in hole locations

OR in installation packet), insert bolts in bolt hole

locations (shown at top-right). You may need to

remove decking to access lower bolt holes.

F. Caution! Front of cases MUST be flush with each

other! After leveling, all cases to be same height.

G. Using SCC-supplied nuts & bolts, lightly tighten

each of the 5 to 8 bolts in a cross-wise pattern.

Work your way around the pattern, tightening

more firmly at each pass. Do not firmly tighten

one bolt and then start on the next!

H. After the cases are bolted together, level the

‘second’ case. Repeat this process for each case

to be adjoined.

I. After all lined-up cases are level, seal all seams

with industrial grade silicone sealant.

• See illustration at top-right.

5. Glass Shelving

If your unit has glass shelving, it will be packed

separately.

Caution! Carefully remove from packaging.

• Grasp firmly and carefully install.

• Caution! Check that plastic edging is intact

before placing glass shelving onto brackets!

• Plastic edging must NOT be removed from glass

shelves. Contact Structural Concepts for

replacement edging (see TECHNICAL

SERVICE CONTACT INFORMATION section).

• Check that glass shelving is in proper position

before placing product in case.

• See illustrations at mid and lower-right showing

both curved and flat front glass (optional).

Deck

Approximate hole

locations pointed

at with arrows

( ) for bolting

units together.

Sanitation Bead

Refrigeration Bead

Sanitation

Bead

Refrigeration

Bead

Glass

Shelves

Glass

Shelves

Note: Illustration above reflects dual case unit with

glass in end panels. Your case may not reflect

every feature or option of this particular case.
