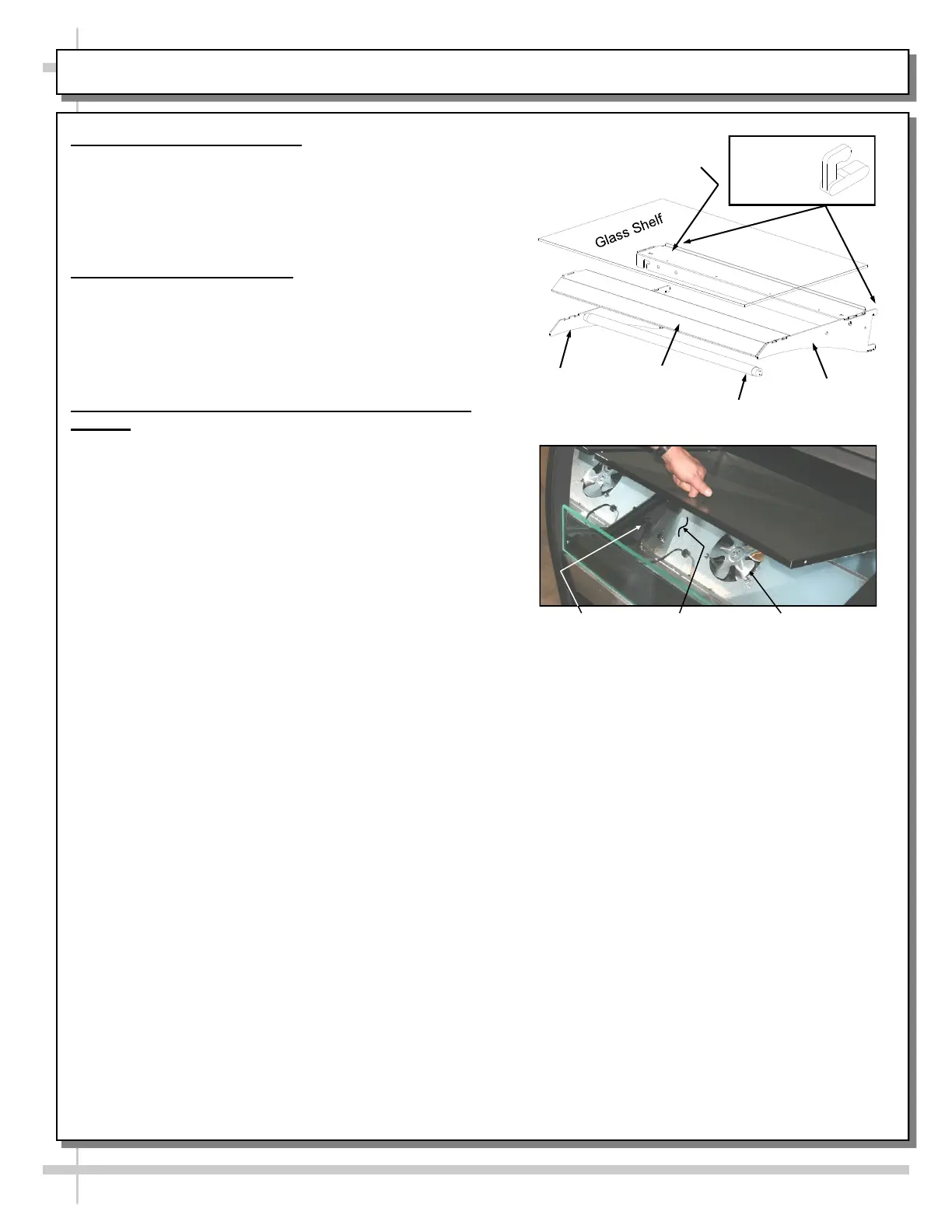

MAINTENANCE, CONT’D: BRACKET RETAINER REMOVAL / SHELF ASS’Y REMOVAL / DRAIN / TXV

4. Bracket Retainer Removal

• To remove brackets, it may be necessary to

remove the nylon shipping bracket retainers.

• Pliers will be required to accomplish this task.

• See illustration at top-right for location of bracket

retainers.

5. Shelf Assembly Removal

• Remove glass shelves

• For lighted shelving, unplug the light cord.

• Remove rear shelf support.

• Remove shelf light cover from brackets.

• Lift brackets up and out.

6. Drain and Thermostatic Expansion Valve (TXV)

Access

• The drain and thermostatic expansion valve are both

accessible from the front of the case.

• Unplug the fans (one plug per side) and remove the

fastener from the access panel in the front right (or

left) corner of the unit.

• The drain and the thermostatic expansion valve

(TXV) are directly below the access panel.

Fan Plug

TXV Panel

Shelf

Bracket

Shelf Light

Cover

Rear Shelf Support

Lamp

Bracket

Retainer

Locations

Evaporator

Fan
