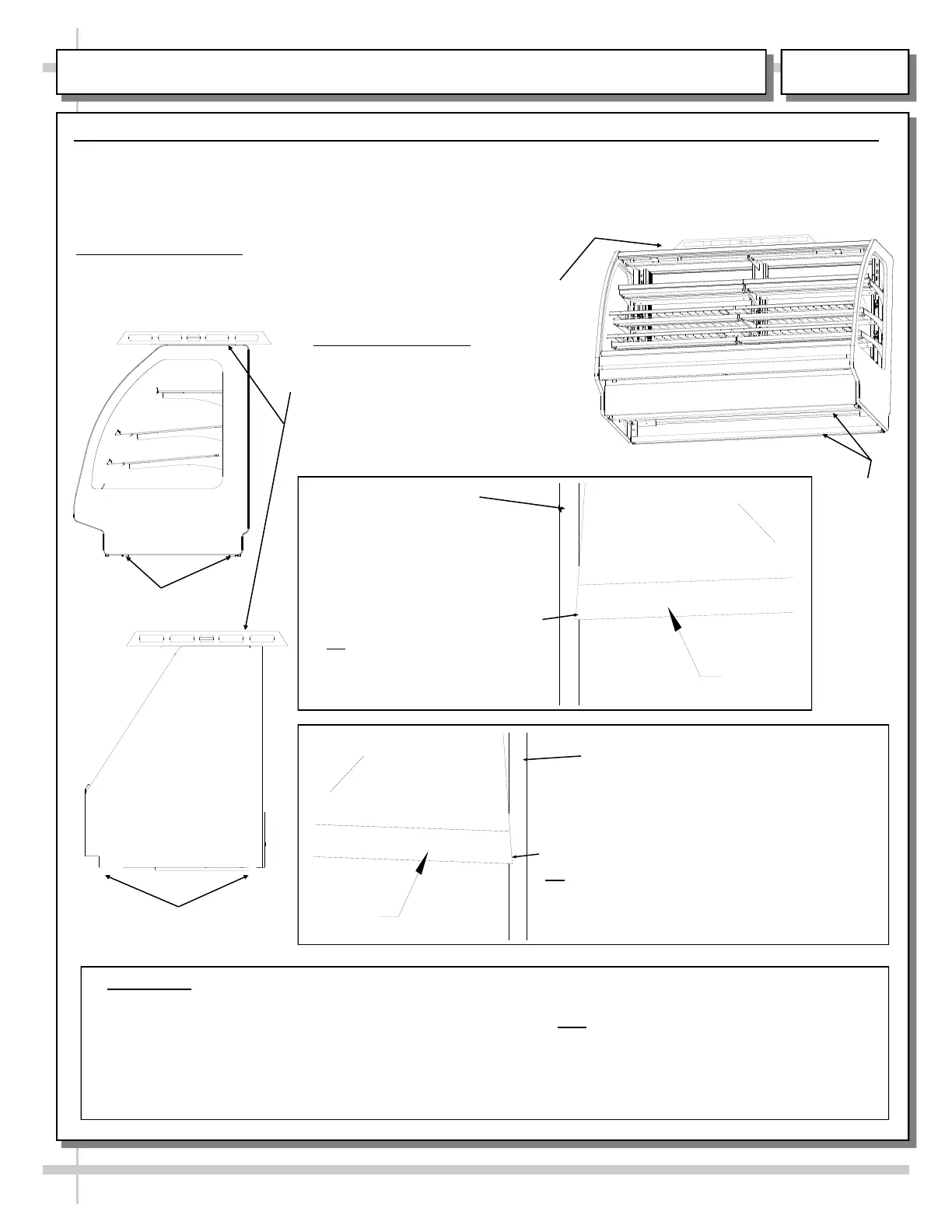

INSTALLATION: FRONT GLASS ALIGNMENT & ADJUSTMENT - RAILS / LEVELERS

Case with Curved

Front Glass

15. Front Glass Alignment & Adjustment via Rails / Levelers (For Curved / Flat Front Glass)

• Proper alignment of the front glass is important to create and maintain a seal inside the case.

• Improper alignment can cause air leaks compromising the environment inside the case and create condensation.

• Follow the five steps listed below to assure proper front glass alignment.

B. Front-to-Back Leveling:

• Place a level on top of case,

perpendicular to the front glass.

• Raise or lower either side of case by

shimming under the rails or adjusting

levelers (following steps 3 & 4 below).

• Double-check the side-to-side level.

A. Side-to-Side Leveling: Place a level on top of display case (parallel

to front glass). Level the case by inserting shims under the rails (or,

for levelers, rotating either clockwise or counter-clockwise). Follow

steps 3 and 4 below for specifics.

E. Verification:

• After inserting shims (or adjusting levelers), open and shut the front glass.

• Verify (again) that front glass is properly aligned at left-hand and right-hand side of the case.

• If not, repeat the shimming procedure (or leveler adjustment) until the front glass is properly aligned

along both sides of the case.

CURVED

FRONT

GLASS

END

PANEL

LIFT

D. If FRONT-RIGHT CORNER is too close

to end panel (or hitting it), insert shims at

the BACK RIGHT CORNER of case.

Or, for leveler system, adjust levelers at the

BACK RIGHT CORNER of case

DOWNWARD.

LIFT

END

PANEL

CURVED

FRONT

GLASS

C. If FRONT-LEFT CORNER

is too close to end panel (or

hitting it), insert shims at the

BACK LEFT CORNER of case.

Or, for leveler system, adjust

levelers at the BACK LEFT

CORNER of case DOWNWARD

END PANEL

Case with Flat

Front Glass

END PANEL

Rails

Shown

Rails or Levelers

5-6563

Rails or Levelers
