Note: See INSTALLATION section in this manual

for the following:

• Front Panel adjustment and removal

• Angled Base adjustment and removal

• Vertical Base adjustment and removal

1. Fluorescent Light Fixtures

Warning! Disconnect power before providing

maintenance and service to unit.

Caution: Lamps have been treated to resist

breakage and must be replaced with similarly

treated lamps.

Note: Warranty will be void if claims arise from

negligence, misuse of goods, extreme

environmental conditions or improper

maintenance. See Overview And Warnings

section in this operating manual.

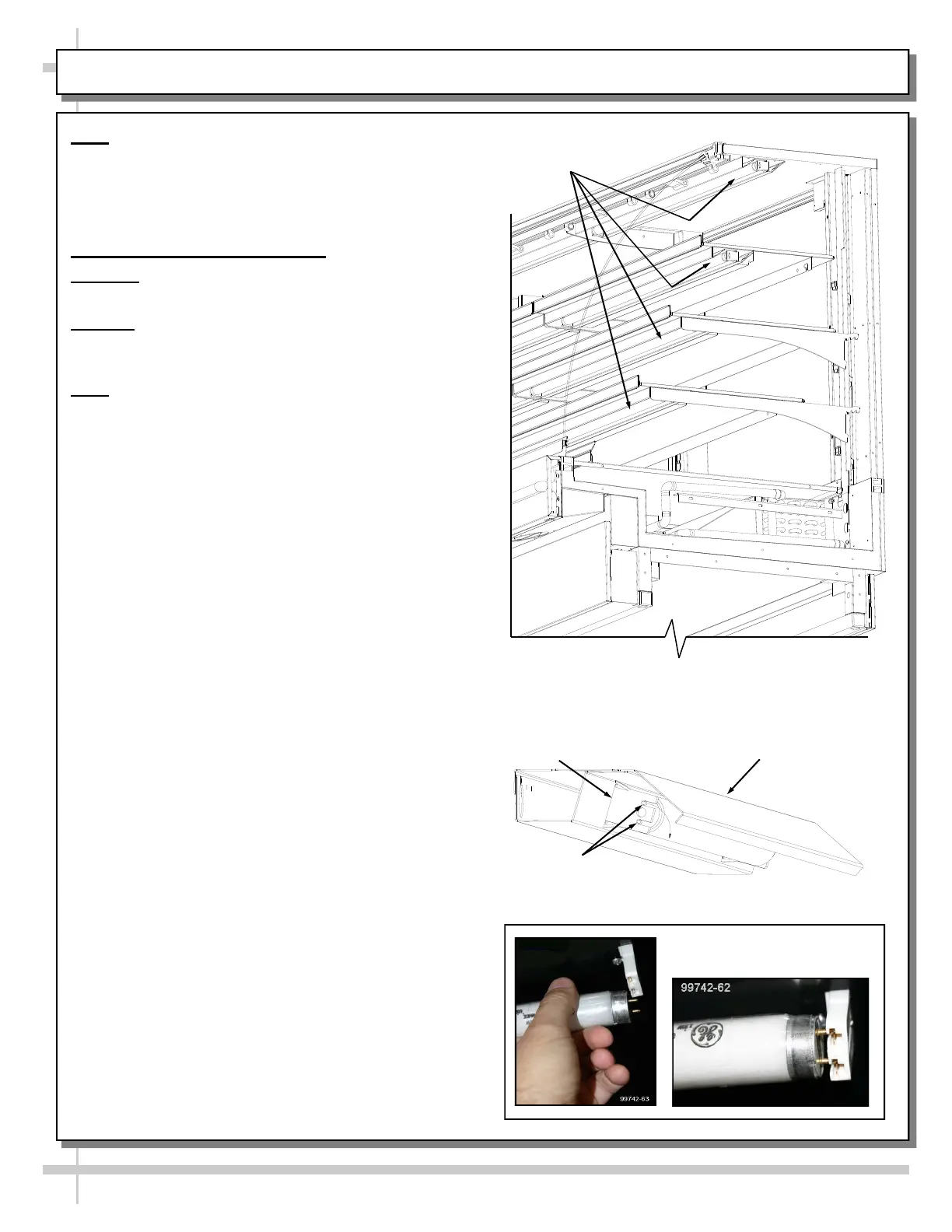

Light fixtures are located on underside of shelf

assemblies, at underside of top board (inside of

case). See illustration at top-right.

Removal of lamp:

• Rotate lamp (1/4-turn) either direction to

disengage (upper or lower) pins/contacts from

lamp-mounting sockets.

• Remove bulb by applying even pressure from

back side at the bulb ends and pulling the

remaining contact from sockets.

• See illustrations at mid and lower-right.

Installation of lamp:

• Align pins with slot.

• Insert pins into socket by rotating the bulb

1/4-turn to secure either the (upper or lower)

pin contacts into the sockets.

• Rotate remaining bulb contacts (1/4-turn) into

remaining lamp mounting socket contacts.

• See illustrations at right.

See next page for LED Light Fixture information

MAINTENANCE FUNDAMENTALS - FLUORESCENT LIGHT FIXTURES

Lamp Pins

Light Socket

Light Fixture

Light

Fixtures

Above illustration has end panel removed for

illustrative purposes only.
