INSTALLATION: FRAME SUPPORT RAILS / SEALING TO FLOOR / LOCKING CASTERS / LEVELERS

9. Cases With Frame Support Rails: Shim

• Partially disassembled illustration at right shows

case with frame support rails.

• Shims will be provided with all cases that have

frame support rails.

• Use shims to level case.

• Note: After case is in position, it must be

sealed to floor to prevent entry or leakage of

liquid or moisture.

10. Cases With Casters: Lock and Unlock

• To lock casters, press down on lever.

• To unlock casters, pull lever up.

• See mid-right illustration.

11. Cases With Levelers: Adjust

• After case is in position, adjust case so it is level

and plumb (see illustration below-right).

• You may need to remove front and/or rear

toe-kick to access levelers.

• Use adjustable wrench (and possibly a pry bar)

to adjust leveler.

• Do not use pry bar on toe-kick as it may buckle.

• Do not use pry bar on end panel as it may chip.

• Use pry bar ONLY on base frame to avoid

damaging case.

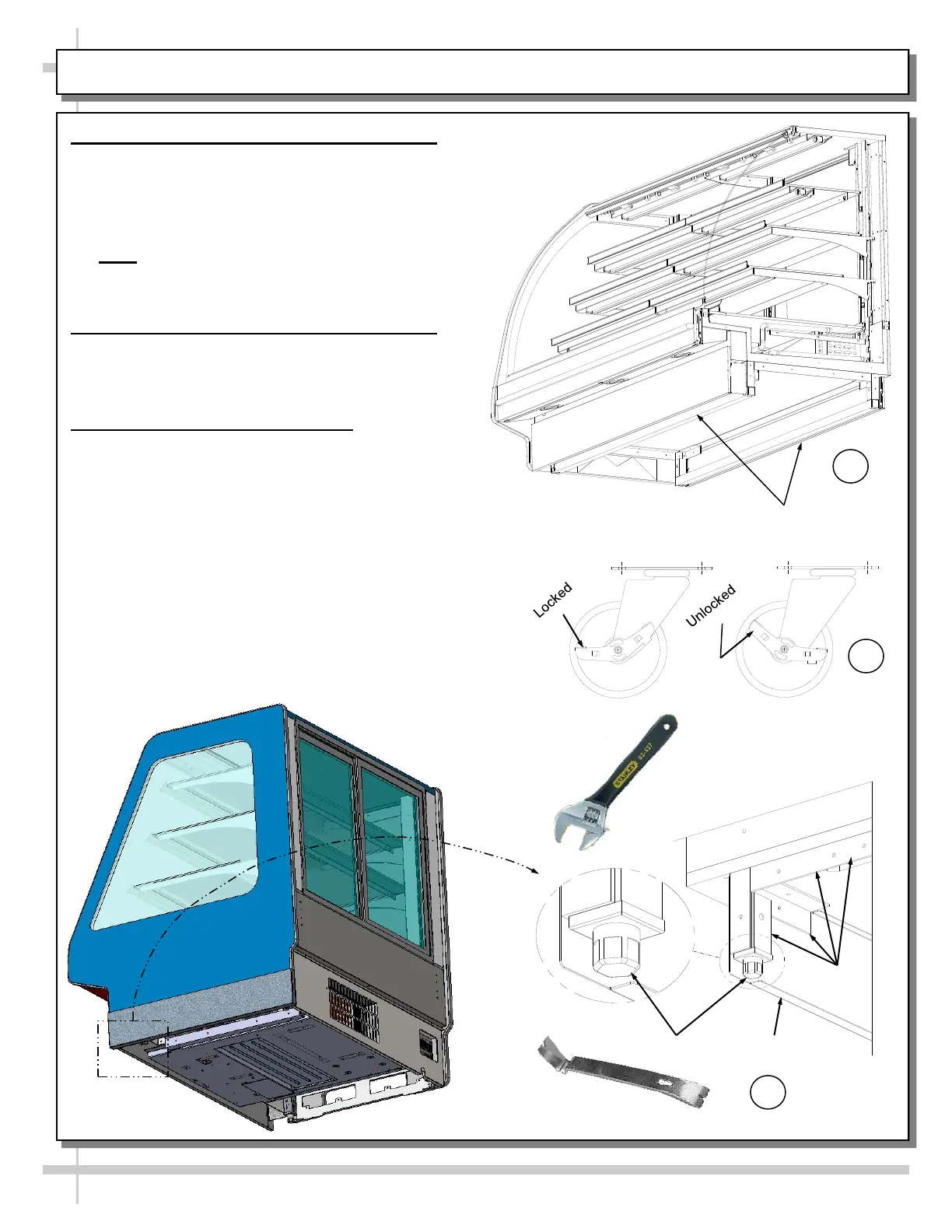

• See sample model GHSEH452R.6235 below for

general leveler illustration.

Frame Support Rails

Pry Bar

Base

Frame

Leveler

Adjustable

Wrench

Toe-Kick
