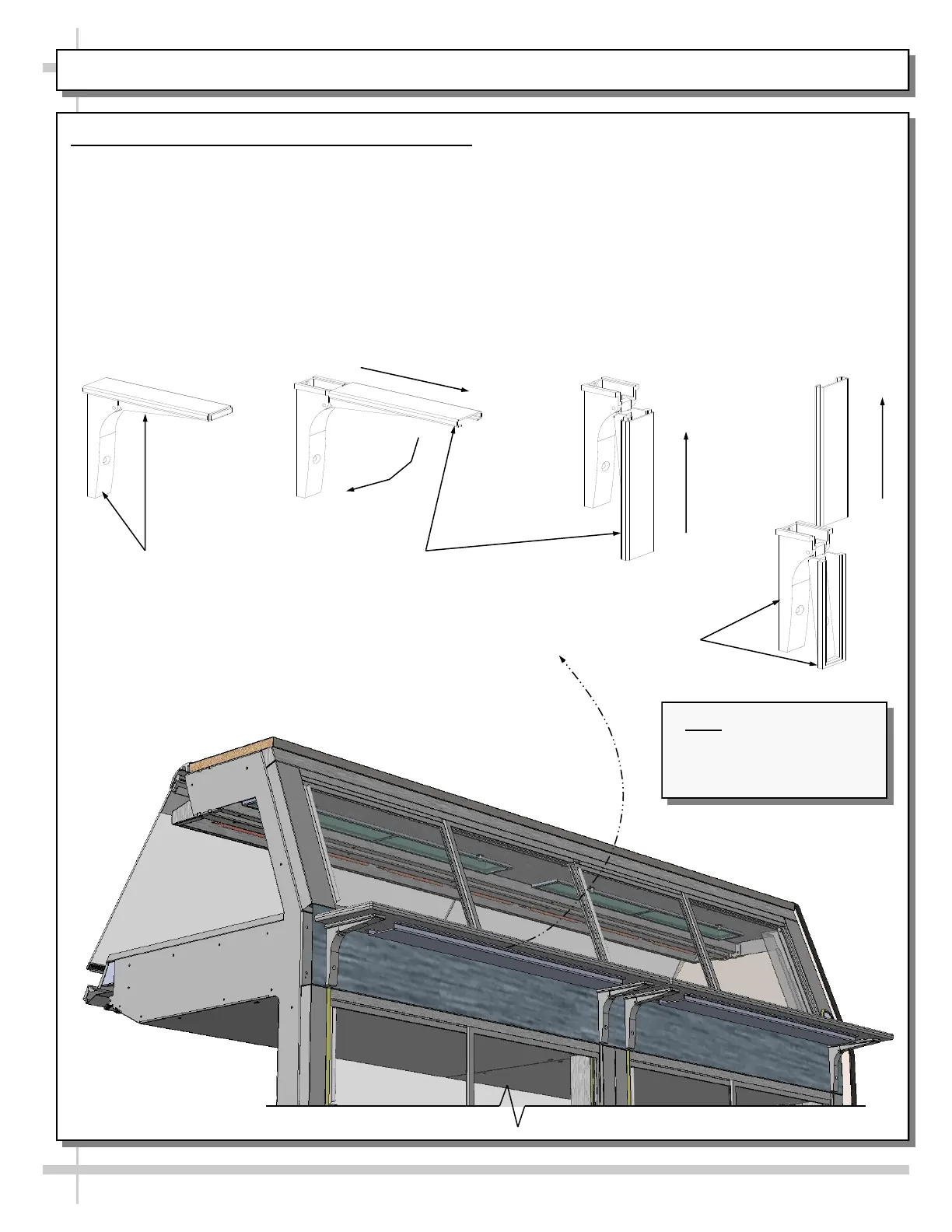

MAINTENANCE, CONTINUED: CUTTING BOARD/ REAR LEDGE REMOVAL

4. Cutting Board / Rear Ledge Removal Steps

Illustrations below reflect step-by-step removal

method.

A. Hinged support bracket is shown in its standard

upright position.

————— Rear Ledge Removal Steps —————

Note: For clarity, only Shelf Track is shown being

removed. Rear Ledge is attached to Shelf Track.

Hinged Support

Bracket

Shelf Track

- A - - B - - C -

- D -

Hinged Support

Bracket

B & C. While upright, rear ledge must be slid away

from case and then rotated downward to vertical

position.

C & D. From the shelf’s lowered position, lift from

bottom edge upward to disengage shelf track

(and attached rear ledge) from bracket.

Note: Illustration shown

may not reflect every

feature or option of your

particular case.
