Warning! Disconnect power before providing

maintenance and service to unit.

Caution: Lamps are treated to resist breakage

and must be replaced with similarly treated

lamps.

Note: Warranty will be void if claims arise from

negligence, misuse of goods, extreme

environmental conditions or improper

maintenance.

1. Rear Sliding Doors

Note: Doors are NOT interchangeable. There is an

inner and outer door. Outer door must be removed

first and replaced last.

• The outer door is the right hand door (from the

service side or rear of case).

• Move doors toward the center of the case.

• Individually lift each door up toward the top of the

case; pivot the bottom of the door out.

• Replace rear sliding doors in reverse order they

were removed.

2. LED Lights

• LED lights are located at both header

and shelving of case (as shown below).

• Check that ALL of the light plugs are

properly connected to the LED light.

• Plug must be inserted ALL THE WAY

into the LED light orifice (with no gap)

to work properly.

• See TROUBLESHOOTING section in manual

if LED lights malfunction.

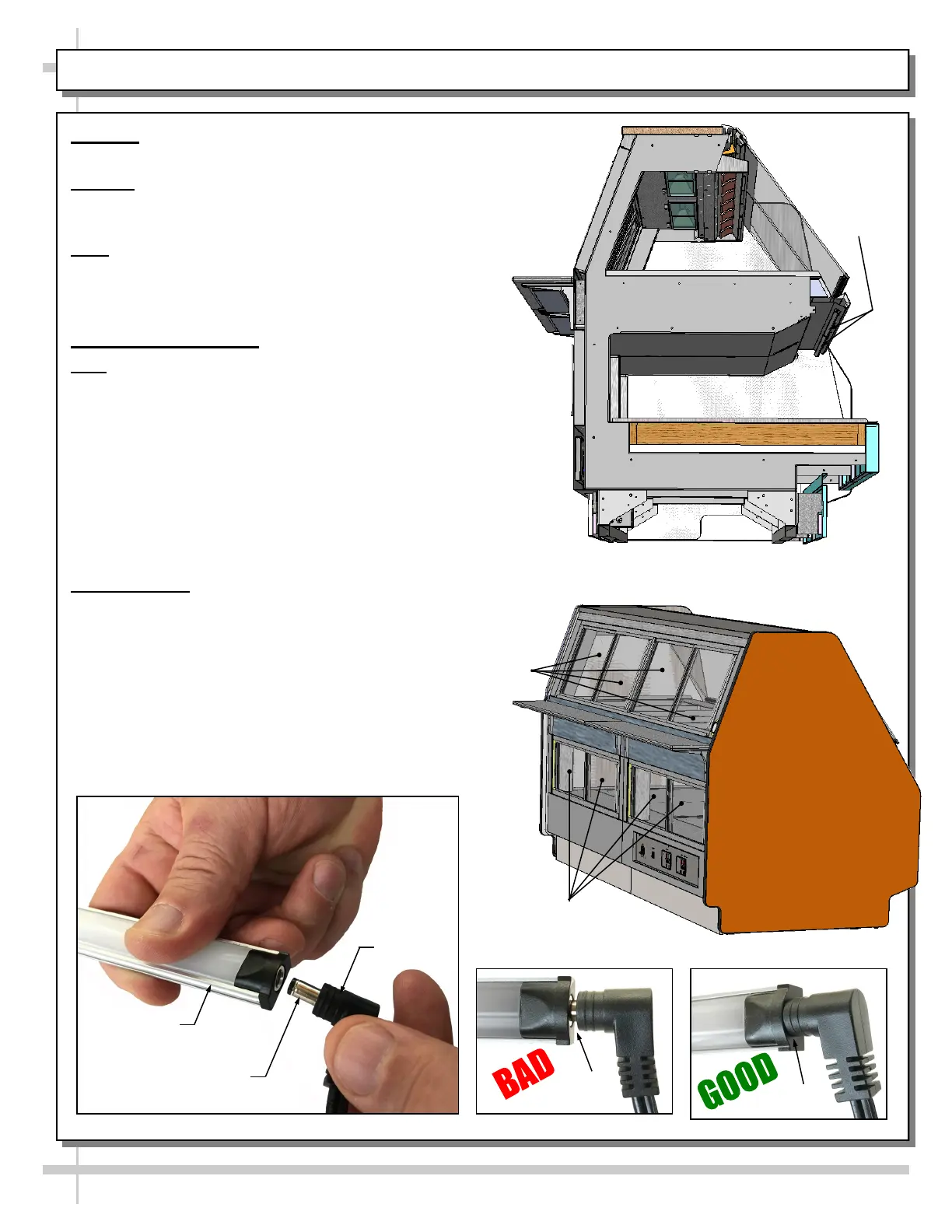

MAINTENANCE: UPPER AND LOWER REAR SLIDING DOORS / LED LIGHT FIXTURES

LED Light

Fixtures

End Panel Removed

For Illustrative Purposes Only

Lower Rear

Sliding Doors

Upper Rear

Sliding Doors

No Gap

Gap

LED Light

Plug

LED’s Barrel

Shaped Insert
