Blend® User Manual 7

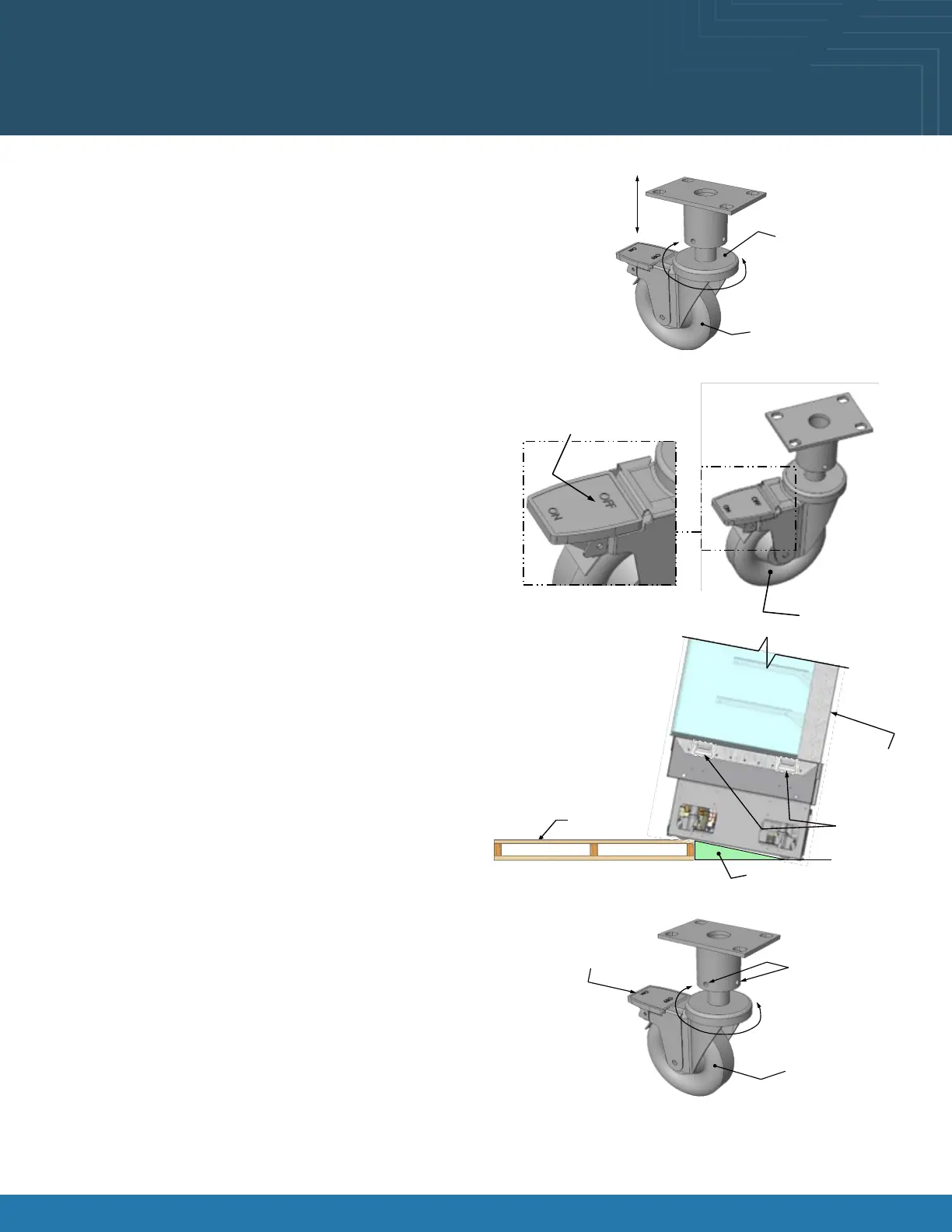

Installation: Case Removal From Skid

Caster Height-Raising and Lowering:

• Raise or lower casters (to adjust case height) by rotating

casters’ vertical adjustment rings.

• Rotate the vertical adjustment ring clockwise to lower the

caster (and increase the height of the case).

• Rotate the vertical adjustment ring counter-clockwise to

raise the caster (and decrease the height of the case).

Caster Rolling Capability-Unlocking:

• Important! The case is shipped with caster mechanisms

factory set at ON (locked) to prevent the case from

rolling.

• Unlock casters by pressing OFF on the caster mechanism.

• See illustration at right.

Carefully Remove Case From Pallet:

• Check that casters are lowered as far down as they will

go (as instructed in step #4).

• Use handles to carefully slide the case to rear of the

pallet (see illustration at right).

• Caution! 4 people are required for this task!

• Carefully lower to the oor (using a ramp if available).

• Slide pallet from under case as required.

• Maintain support of the case at all times, or the center of

gravity may cause the case to fall.

• See illustration at right.

Casters-Locking:

• After the case is at the desired position (and height), use

level to check that the case is level and plumb.

• Readjust height as needed (as instructed in step #4).

• Locking Height: After proper height (and positioning) of

the case is attained, tighten the 2 set screws to lock each

caster’s height in place.

• Locking Movement: Then, to prevent casters’ rolling

capability, lock casters by pressing ON atop the “ON” and

“OFF” lever mechanism (shown on the right). The case

will now be secured at its new location.

Vertical

Adjustment

Ring

Caster

Ramp

Handles

Pallet

Support

case while

removing

Press ‘OFF’

Lever To

Unlock

Casters

Press

‘ON’ Lever

To Lock

Casters

Tighten Set

Screws To

Lock Caster

Height
