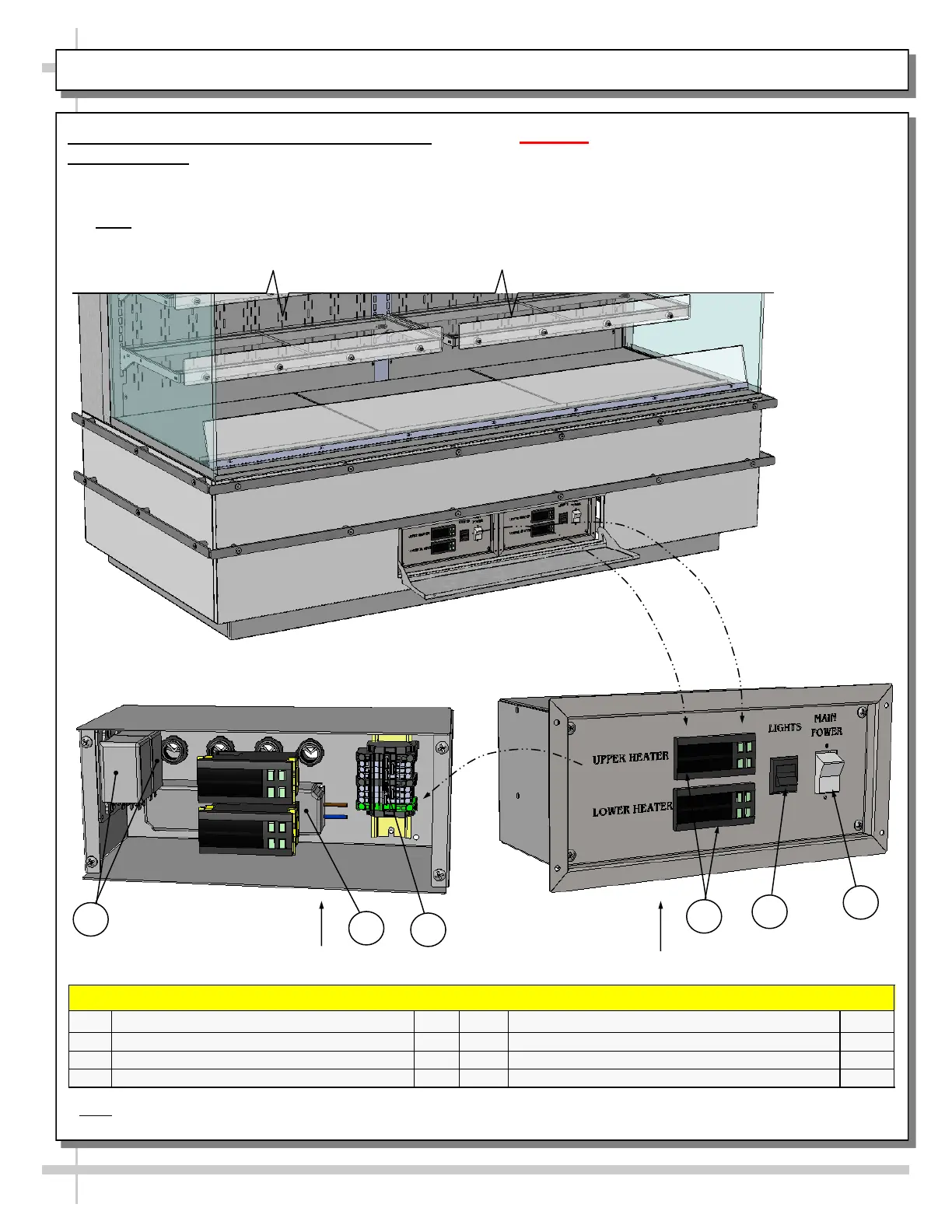

CASE DESIGN & FIELD SERVICE PARTS LIST, CONT’D: MODEL NM7255HSSV ONLY
2. Thermostat / LED Driver / Lights / Main
Power Switch
• Model NM7255HSSV with rear plenum is
illustrated below.
• Note: Only certified electricians are to access
electrical components in this case.
• Caution! Turn off power to case before
accessing.
• Lower the flip-down door.
• Remove 4 screws from the controller/DC driver
box cover to access electrical components.
• After accessing controller components, return the
flip-up door to its former position (closed).
FIELD SERVICE PARTS LIST: ELECTRICAL BOX COMPONENTS (FOR EACH ELECTRICAL BOX)
P/N COMPONENT NAME AMT P/N COMPONENT NAME AMT
15 RELAYS 2 18 PROGRAMMABLE CONTROLLERS 2*
16 DRIVER 1 19 LIGHTS SWITCH 1
17 TERMINAL STRIP 1 20 MAIN POWER SWITCH 1
Electrical Box With Two
Programmable Controllers
(Faceplate Attached)
15
Electrical Box With Two
Programmable Controllers
(Faceplate Removed)
16
19
20
18
17
* Note: Only taller models have upper AND lower heaters (requiring two programmable controllers). All others have
only ONE heater (with ONE programmable controller).
