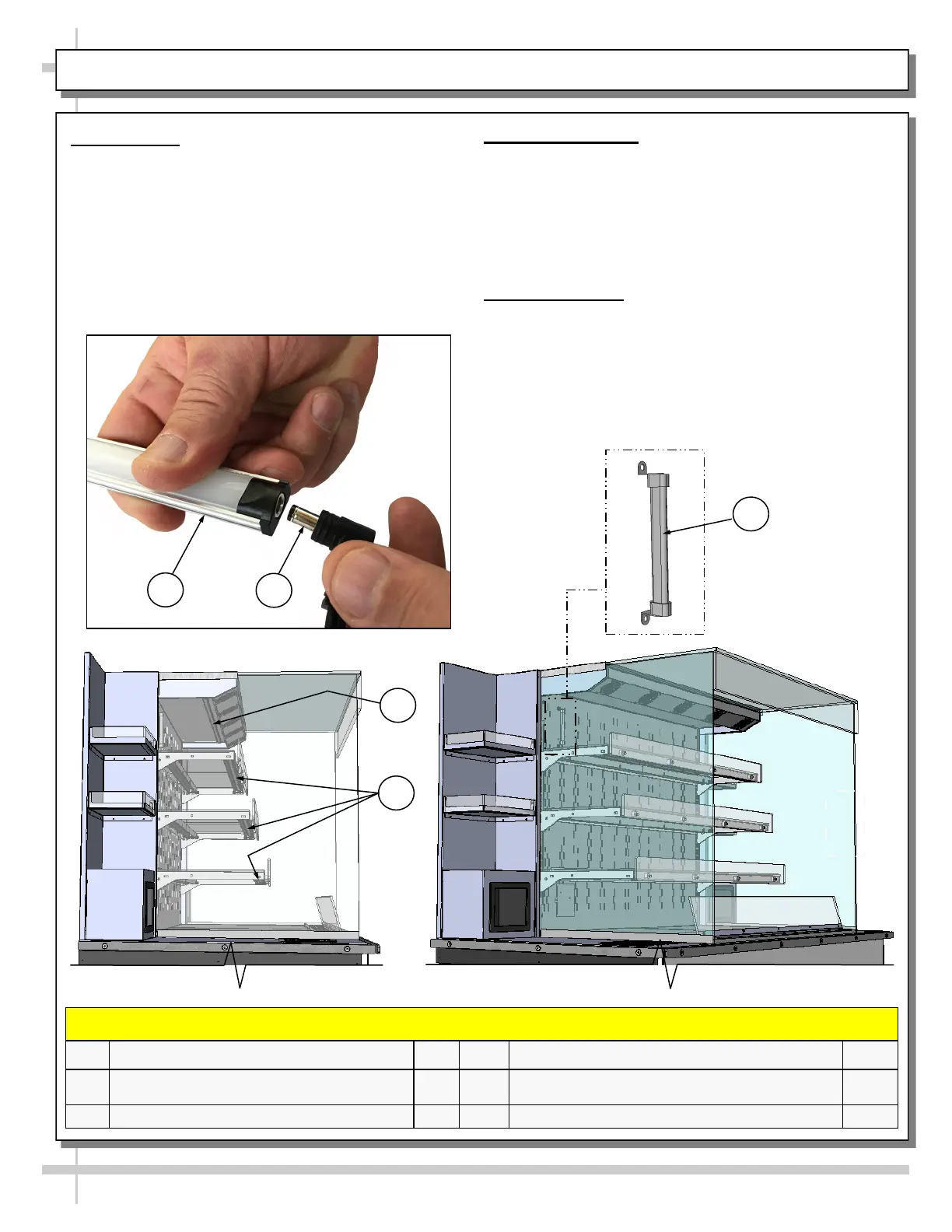

CASE DESIGN & FIELD SERVICE PARTS LIST, CONT’D: MODEL NM4855HSSV ONLY
FIELD SERVICE PARTS LIST: LED LIGHTS / PLUGS / THERMOMETER
P/N COMPONENT NAME AMT P/N COMPONENT NAME AMT
42
LED LIGHT FOR HEADER AND SHELVES
(ALSO CALLED OUT ON PREVIOUS PAGE)
4 44 THERMOMETER 1
43 PLUG, LED LIGHT 4 45
44
5. LED Light
• LED lights are located at both header and
shelving of case (as shown below).
• Check that ALL of the light plugs are properly
connected to the LED light.
• See TROUBLESHOOTING section in manual
if LED lights malfunction.
6. LED Light Plug
• LED lights are located at both header and
shelving of case (as shown below).
• Check that ALL plugs are properly connected to
the LED lights.
• Plug must be inserted ALL THE WAY into the
LED light orifice (with no gap) to work properly.
7. Thermometer
• Thermometer provides air temperature of
heated section of case.
• Thermometers DOES NOT provide actual food
temperature.
• Use probe thermometer to determine actual
product temperatures.
43
42
42
42
