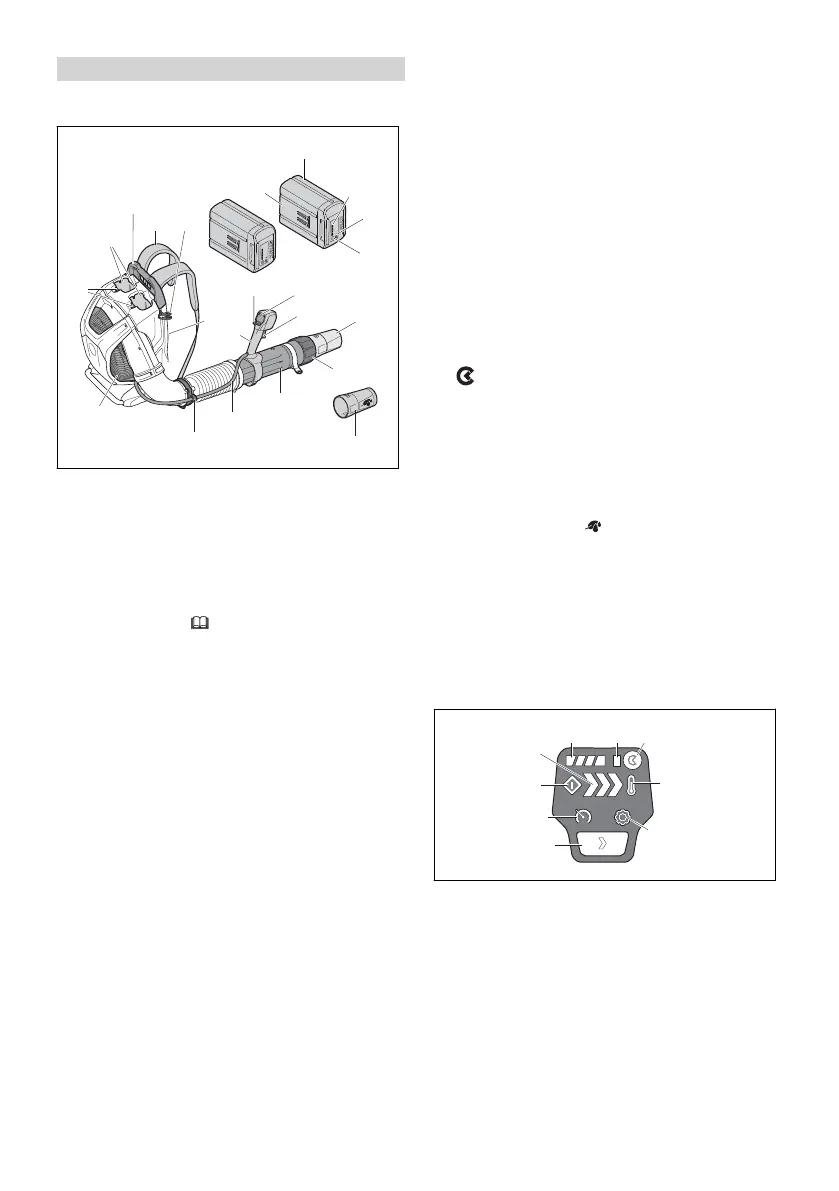

3 Main Parts
3.1 Blower and Batteries
18
19
16
17
#
2
3
5
6
7
14
15
10
12
13
1
4
11
8
9
20
#
0000103379_001
1 Harness
For carrying the blower.
2 Control Handle
Handle for the operator's right hand.
3 Power Hold Button
Holds the selected blowing force.
4
Operating Unit, 3.2
The operating unit (HMI) is used to select the
power levels. It also displays the batteries
level and any active faults.
5 Trigger Switch
Switches the motor on and off.
6 Volume Nozzle
Directs and concentrates the airstream.
7 Union Nut
Allows simple adjustment of blower tube
length.
8 Blower Tube
Directs the airstream.
9 Cable
For connecting the trigger switch to the motor.
10 Elbow Clamp
For securing the cable in position.
11 Intake Screen
Covers the air intake opening and reduces
risk of contact with the blower fan.
12 Locking Lever
Secures the batteries in the battery compart‐
ment.
13 Battery Compartment
Holds the batteries.
14 Carrying Handle
For lifting and transporting the blower.
15 Hook
Secures the nozzle to the blower when trans‐
porting or storing.
16 Battery
Supplies electrical power to the motor.
17 Battery LEDs
Indicate the battery's state of charge and dis‐
play error messages regarding potential mal‐
functions in the battery or power tool.
18
"BLUETOOTH
®
" LED (only for batteries with
)
Indicates whether the Bluetooth® interface is
enabled or disabled.
19 Push Button
Activates the battery‘s LEDs. Activates and
deactivates the Bluetooth® interface (if appli‐
cable).
20
Air Speed Nozzle
Directs and concentrates the airstream. Suita‐
ble for heavy and wet blowing due to the
increased airflow.
# Rating Plate
Contains electrical information and the pro‐
duct's serial number.
3.2 Operating Unit
2
4
5
6
3
7
8
9
1
0000101964_001
1 Battery Charge Satus Indicator
When the trigger switch is pressed, the LEDs
indicate the charge status of the battery with
the lower battery charge.
2
“BLUETOOTH
®
" LED
Indicates whether the Bluetooth® interface is
enabled or disabled.
3
“BLUETOOTH
®
" Push Button
Activates and deactivates the Bluetooth®
interface (if applicable).
3 Main Parts English
0458-060-8601-A 3
