INSTALLATION
Installation
WPSF | 7
ENGLISH
5. Installation
5.1 Fitting the drain hose
f Fit the drain hose supplied to the safety valve.
f Size the drain hose so that brine can drain o unimpeded
when the safety valve is fully opened.
f Lay the safety valve drain hose with a constant fall to the
drain.
f Ensure that the safety valve drain hose is open to the
outside.

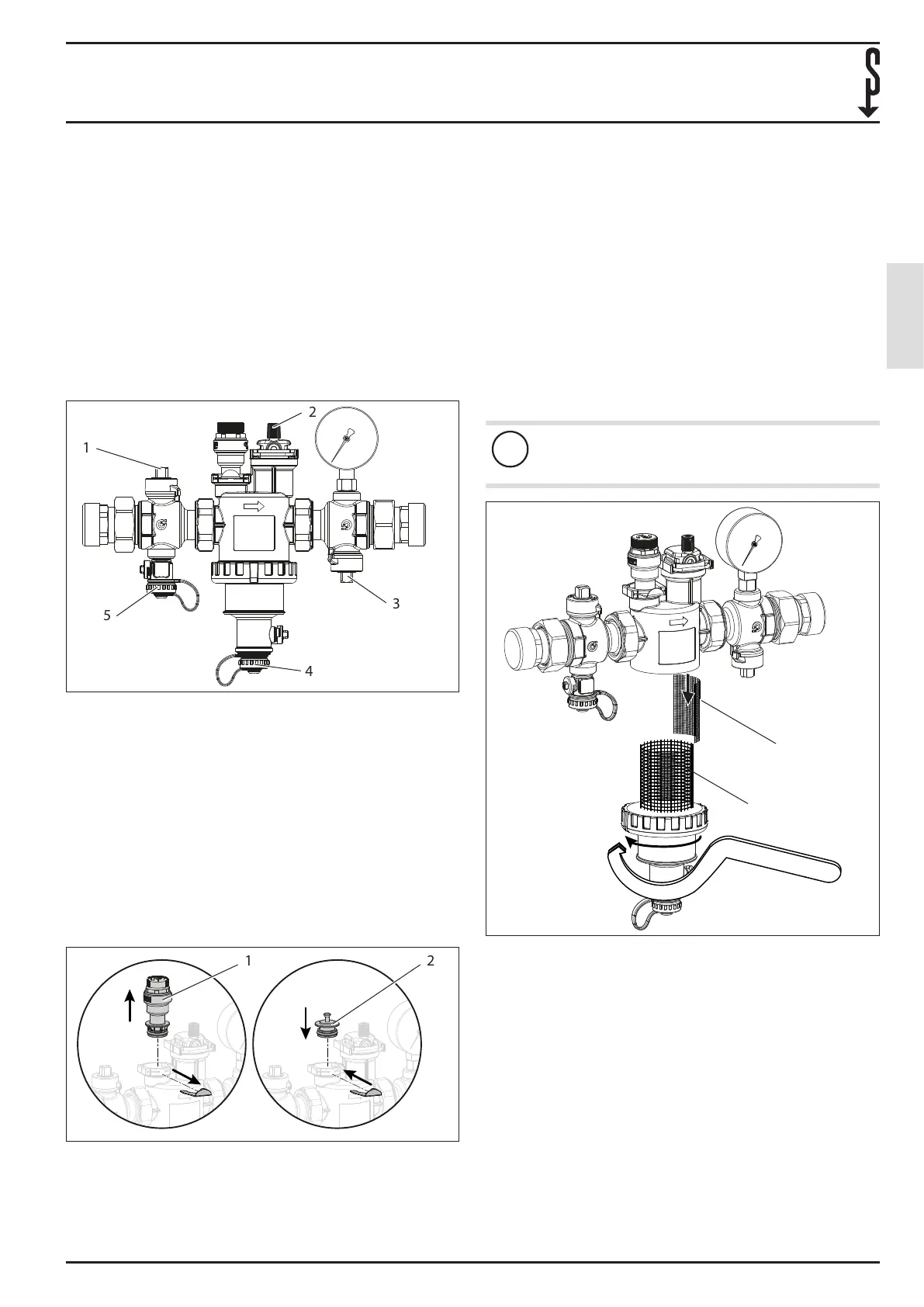

5.2 Charging the heat source system
D0000038422
1
2
3
4
5
1 Shut-o valve, heat source ow
2 Quick-action air vent valves
3 Shut-o valve, heat pump ow
4 Filling
5 Drain
f Close the shut-o valve in the heat source ow.
f Open the shut-o valve in the heat pump ow.
f Connect the refrigerant ow line to the charging side of
the unit.
f Connect the refrigerant return line to the draining side of
the unit.
f Carry out a pressure test. Remove the safety valve and in-
sert the plug supplied.
4.
3.
1.
2.
D0000038157
1 2
1 Safety valve
2 Plug
f Check for tightness.
f Charge the heat source system to the required operating
pressure. For this, observe the maximum operating pres-
sure (see chapter “Specication / Data table”)
f Close the shut-o valve in the heat pump ow.
f Remove the plug and ret the safety valve.
f Vent the heat source system via the quick-action air vent
valve.
f After venting, close the quick-action air vent valve.
5.3 Removing the strainer
If there is a high pressure drop in the heat source system, you
can remove the strainer in the lter chamber of the product
(see chapter “Specication / Pressure drop diagram”).
!
Material losses
f For opening and closing the lter chamber, use
exclusively the hook wrench supplied.
1
2
D0000038155
1 Strainer
2 Filter cartridge
f Open the lter chamber. Remove the lter cartridge.
f Remove the strainer from the heat pump ow.
f Re-insert the lter cartridge. Close the lter chamber.
f Tighten the cover with a torque of 15 Nm.
f Open the shut-o valves in the heat source ow and the
heat pump ow.
f Vent the heat source system via the quick-action air vent
valve.
f After venting, close the quick-action air vent valve.
6. Maintenance
f Clean the lter cartridge if required.
