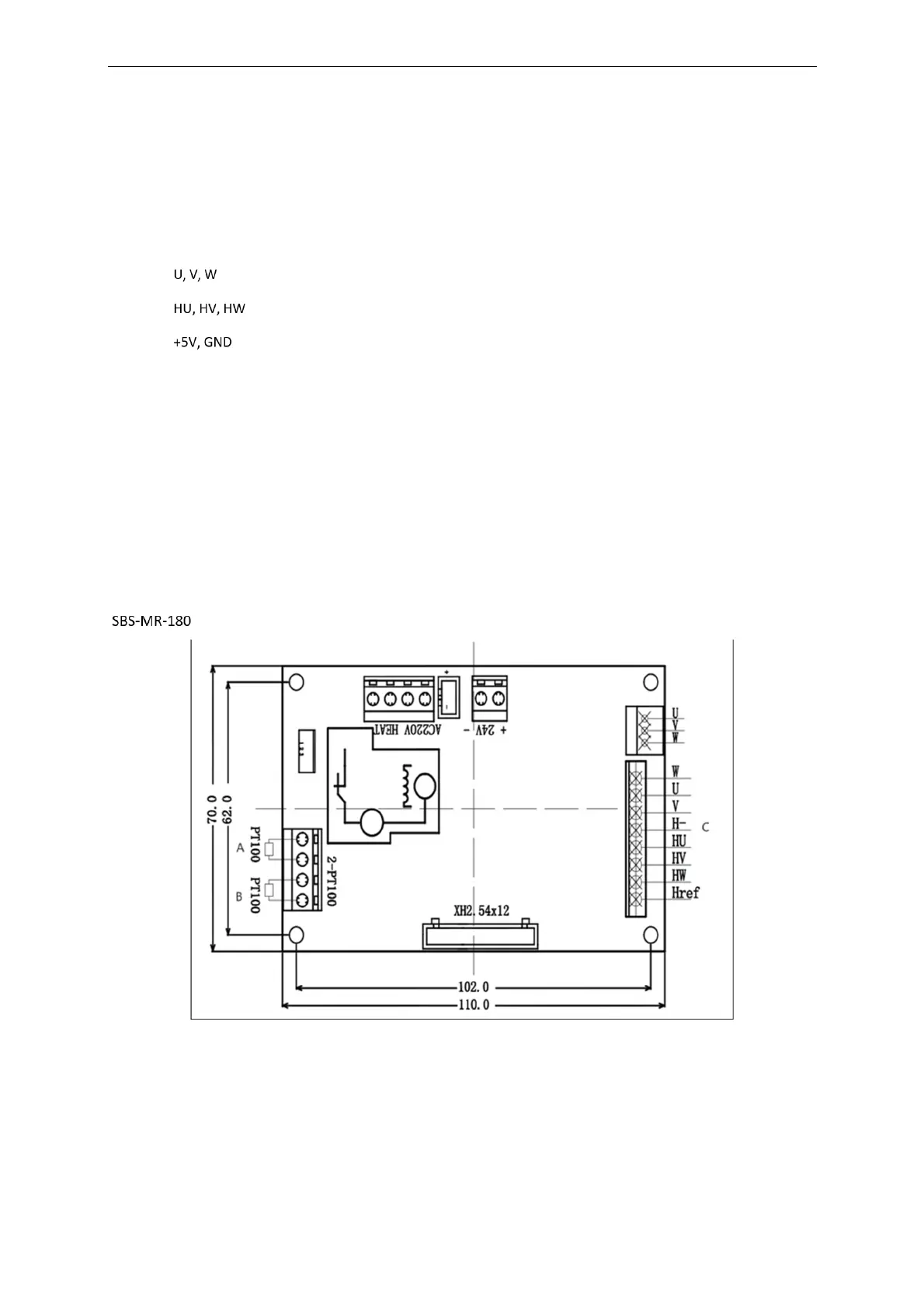

B- Motor main circuit
C- YLQD-101-100W low voltage, 24V DC brushless motor driver
Speed board terminals:
24V+ and 24V-: connect to a 24V DC power supply
: connect to the main circuit of the brushless motor
: connect to the hall sensors of the brushless motor
: connect to the power supply for the brushless motor hall sensors
Note: The number of pulses per revolution for this brushless driver is equal to the number of motor pole
pairs * 2.
Heating board terminals:
Terminals 1 and 2: PT100 sensor connection
Terminals 3 and 4: output connection
Terminals 5 and 6: 220VAC power supply connection
A- Heating plate
B- Container
C- Motor
